Bravo-Brava

'98 range

Electrical system

Wiring diagrams

55.

Version:

S - SX

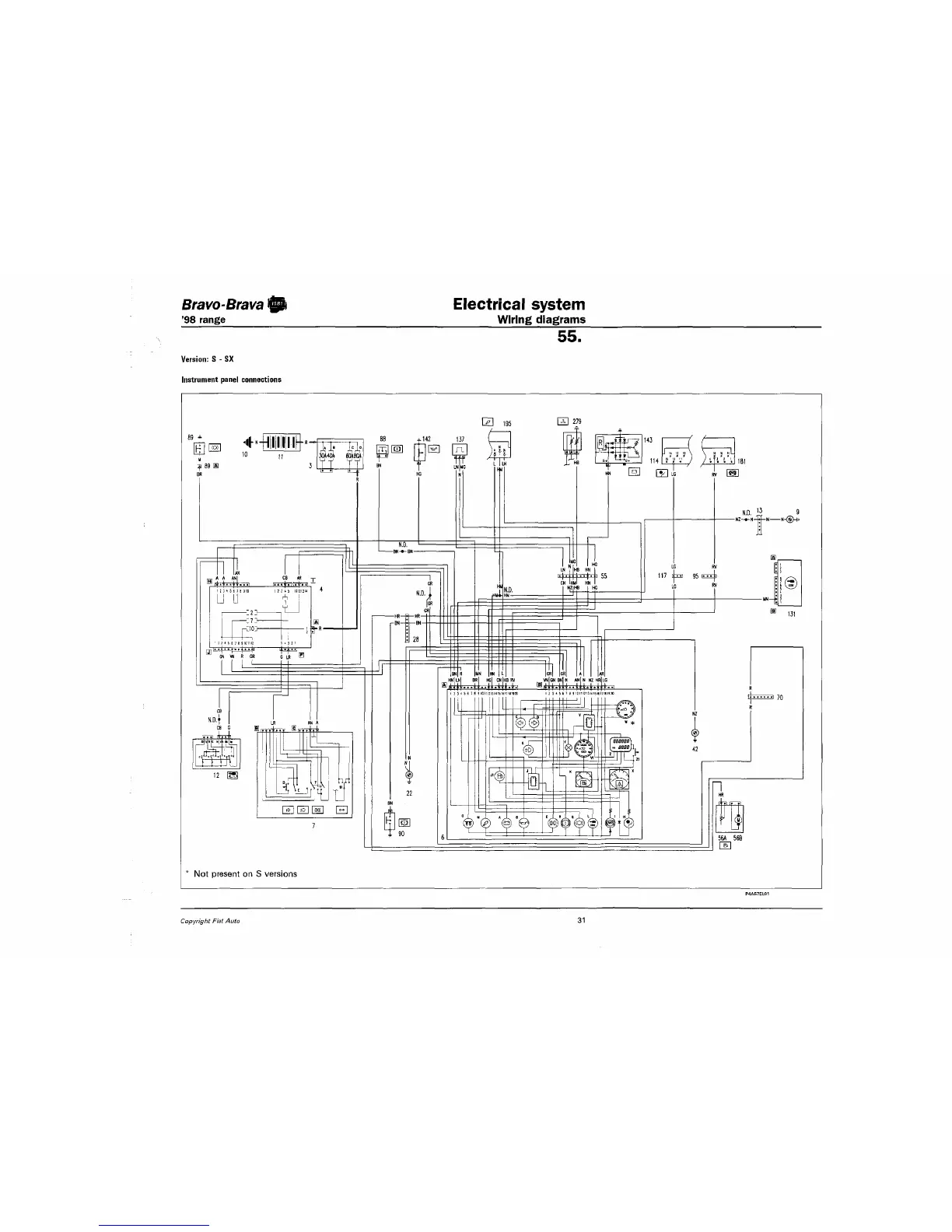

Instrument panel connections

Not present on S versions
