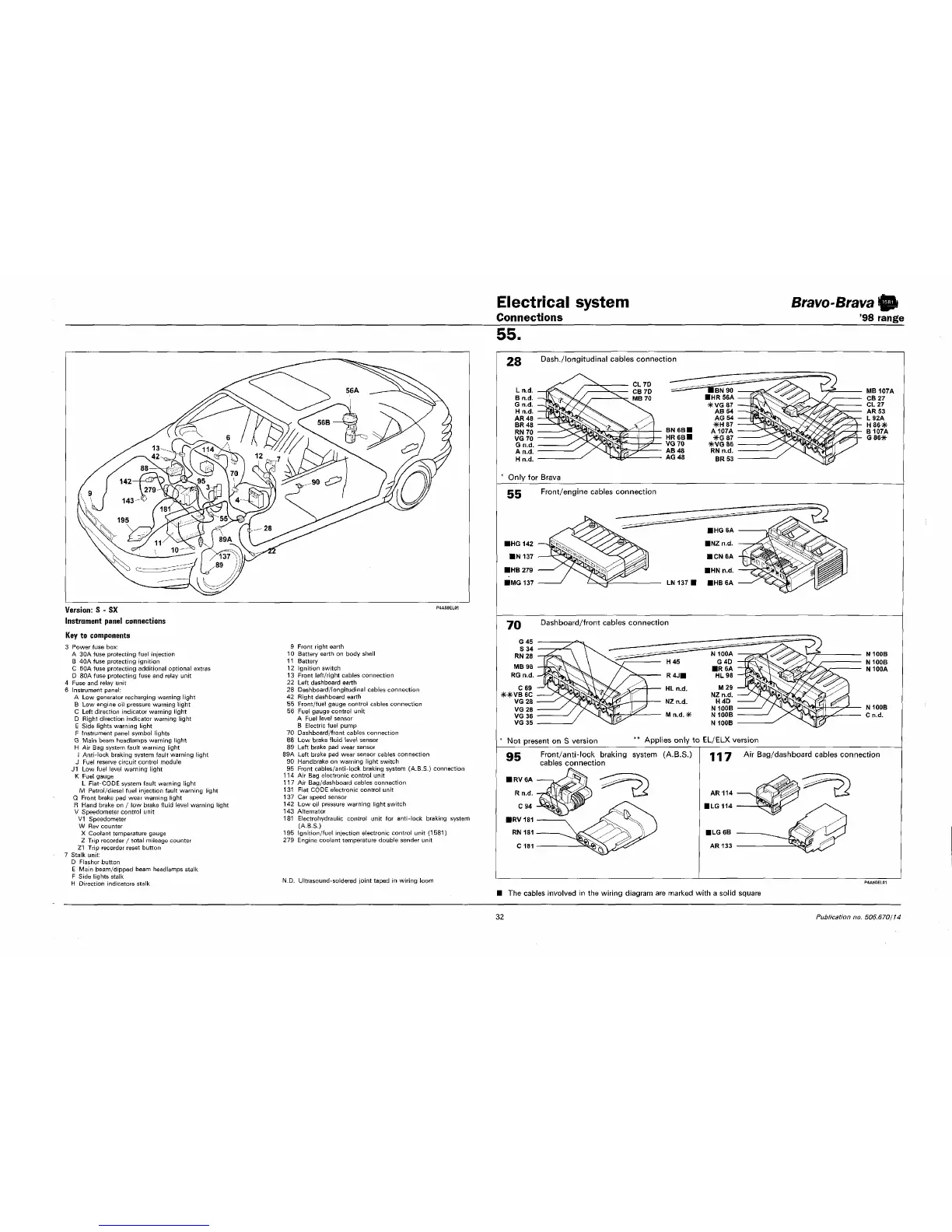

Electrical system
Connections
Bravo-Brava
'98 range
55.
Version:
S - SX
Instrument panel connections
Key to components
3 Power fuse box:
A 30A fuse protecting fuel injection
B 40A fuse protecting ignition
C 60A fuse protecting additional optional extras
D 80A fuse protecting fuse and relay unit
4 Fuse and relay unit
6 Instrument panel:
A Low generator recharging warning light
B Low engine oil pressure warning light
C Left direction indicator warning light
D Right direction indicator warning light
E Side lights warning light
F Instrument panel symbol lights
G Main beam headlamps warning light
H Air Bag system fault warning light
I Anti-lock braking system fault warning light
J Fuel reserve circuit control module
J1 Low fuel level warning light
K Fuel gauge
L Fiat-CODE system fault warning light
M Petrol/diesel fuel injection fault warning light
Q Front brake pad wear warning light
R Hand brake on / low brake fluid level warning light
V Speedometer control unit
V1 Speedometer
W Rev counter
X Coolant temperature gauge
Z Trip recorder / total mileage counter
21 Trip recorder reset button
7 Stalk unit:
D Flasher button
E Main beam/dipped beam headlamps stalk
F Side lights stalk
H Direction indicators stalk
9 Front right earth
I 0 Battery earth on body shell
II Battery
12 Ignition switch
13 Front left/right cables connection
22 Left dashboard earth
28 Dashboard/longitudinal cables connection
42 Right dashboard earth
55 Front/fuel gauge control cables connection
56 Fuel gauge control unit
A Fuel level sensor
B Electric fuel pump
70 Dashboard/front cables connection
88 Low brake fluid level sensor
89 Left brake pad wear sensor
89A Left brake pad wear sensor cables connection
90 Handbrake on warning light switch
95 Front cables/anti-lock braking system (A.B.S.) connection
114 Air Bag electronic control unit
117 Air Bag/dashboard cables connection
131 Fiat CODE electronic control unit
137 Car speed sensor
142 Low oil pressure warning light switch
143 Alternator
181 Electrohydraulic control unit for anti-lock braking system
(A.B.S.)
195 Ignition/fuel injection electronic control unit (1581)
279 Engine coolant temperature double sender unit
N.D. Ultrasound-soldered joint taped in wiring loom
Dash./longitudinal cables connection
Only for Brava
Front/engine cables connection
70
Dashboard/front cables connection
=
H45
R4J|
HL
n.d.
NZ
n.d.
M
n.d. *
N100A
G4D
■R6A
HL98
M29
NZ
n.d.
H4D
N100B
N100B
N100B
N100B
Cn.d.
* Not present on S version
"* Applies only to EL/ELX version
QE Front/anti-lock braking system (A.B.S.)
cables connection
111 Air Bag/dashboard cables connection
The cables involved in the wiring diagram are marked with a solid square
32
Publication no. 606.670/14
