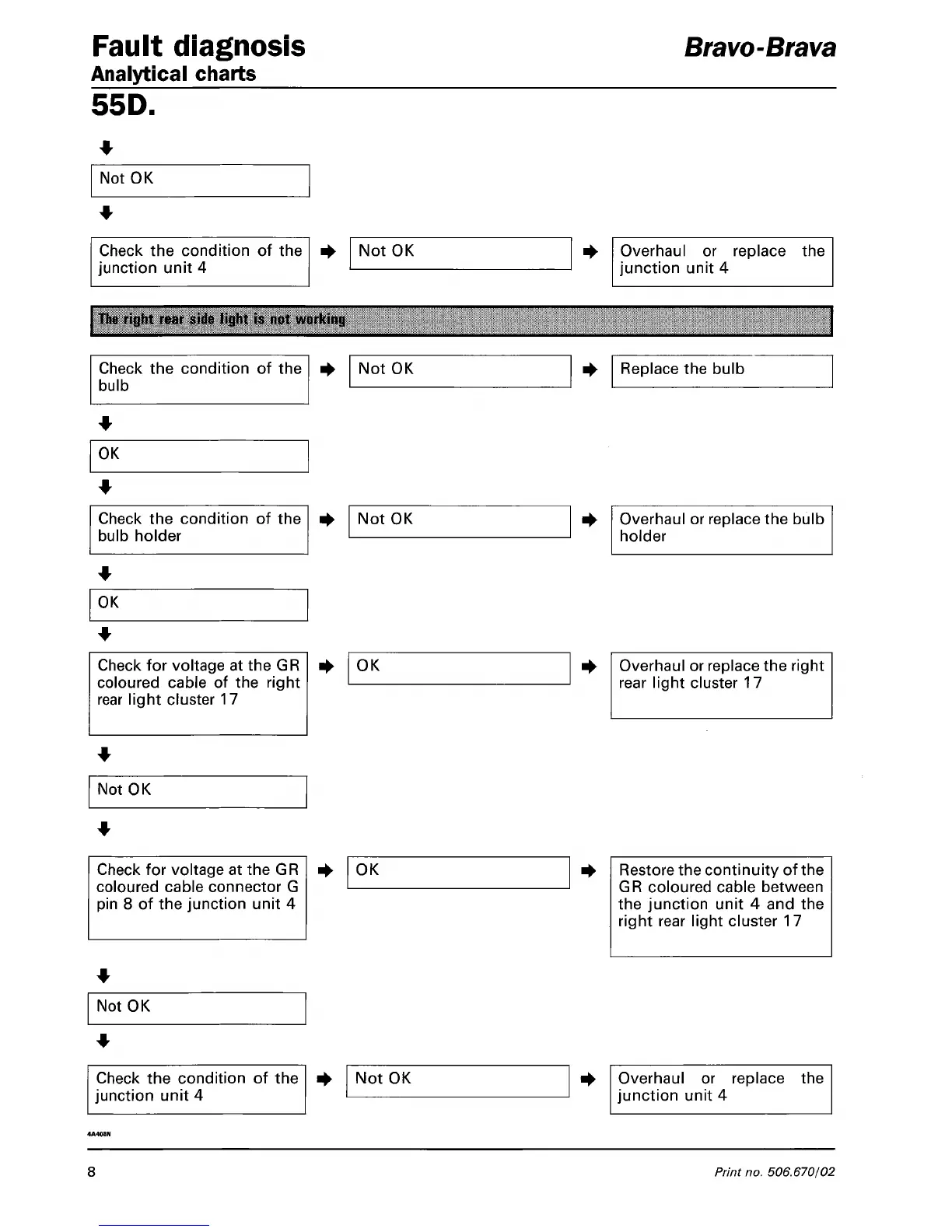

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Not OK
Check the condition of the
junction unit 4
Not OK
Overhaul or replace the
junction unit 4
The rirjht rear side light is not working
Check the condition of the
bulb
Not OK Replace the bulb
OK
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Check for voltage at the GR
coloured cable of the right
rear light cluster 17
OK
Overhaul or replace the right
rear light cluster 17
Not OK
Check for voltage at the GR
coloured cable connector G
pin 8 of the junction unit 4
OK
Restore the continuity of the
GR coloured cable between
the junction unit 4 and the
right rear light cluster 17
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
8
