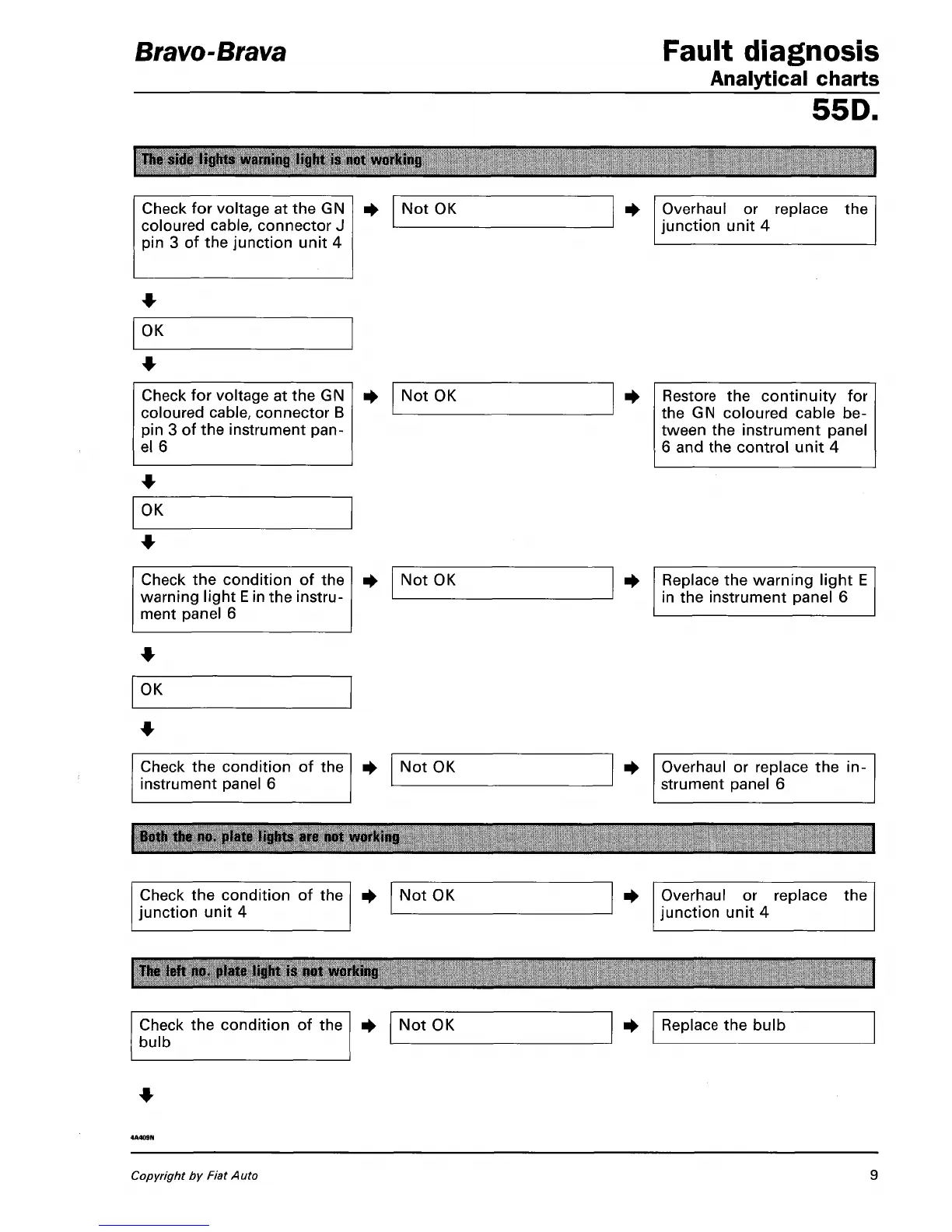

Bravo-Brava
Fault diagnosis
Analytical charts
55 D.
The side lights warning light
is not
working
Check for voltage at the GN
coloured cable, connector J
pin 3 of the junction unit 4
Not OK
Overhaul or replace the
junction unit 4
OK
Check for voltage at the GN
coloured cable, connector B
pin 3 of the instrument
pan-
el 6
Not OK Restore the continuity for
the GN coloured cable be-
tween the instrument panel
6 and the control unit 4
OK
Check the condition of the
warning light
E
in the instru-
ment panel 6
Not OK Replace the warning light E
in the instrument panel 6
OK
Check the condition of the
instrument panel 6
Not OK Overhaul or replace the in-
strument panel 6
Both
the no.
plate lights
are not
working
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
The left
no.
plate light
is not
working
Check the condition of the
bulb
Not OK Replace the bulb
Copyright by Fiat Auto
9
