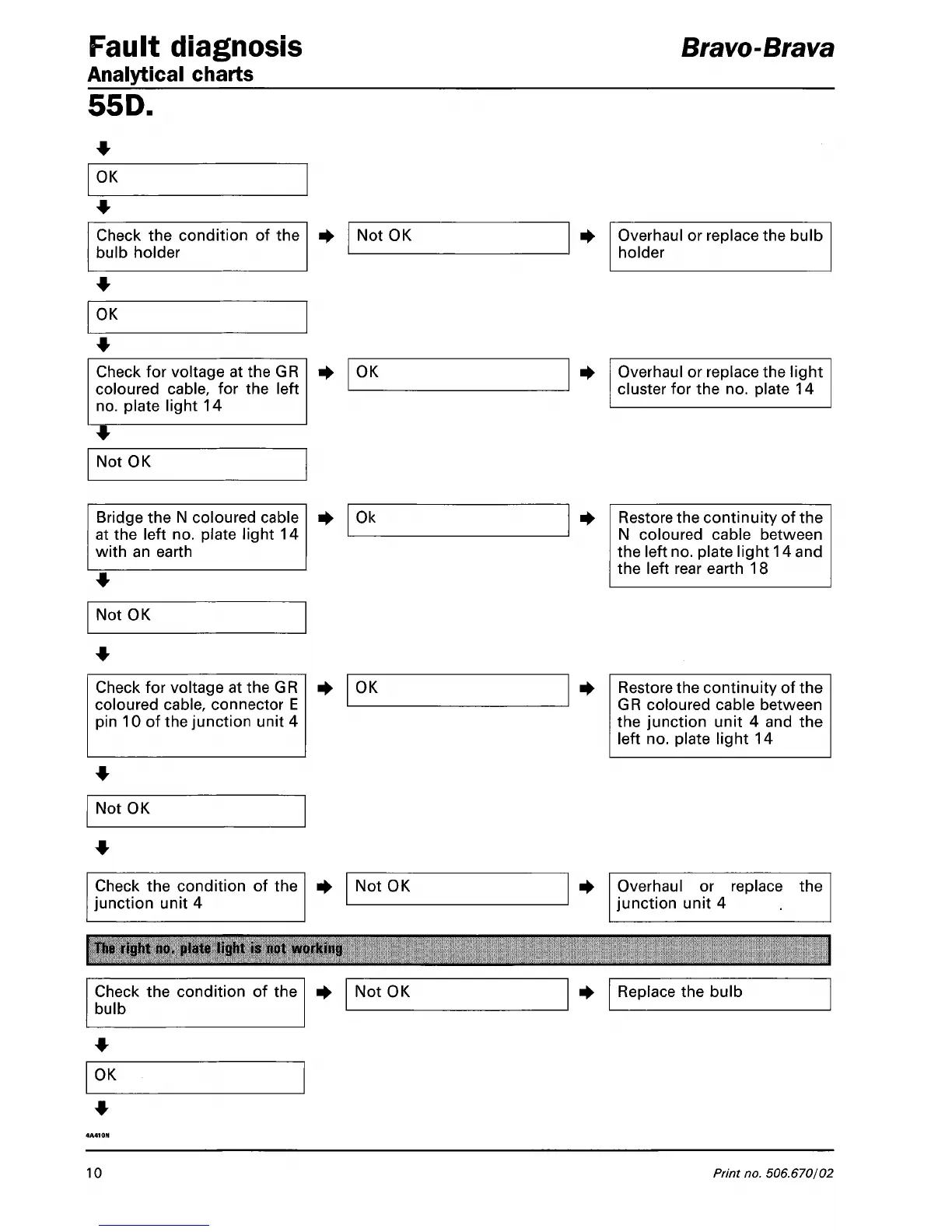

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
OK
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Check for voltage at the GR
coloured cable, for the left
no. plate light 14
OK
Overhaul or replace the light
cluster for the no. plate 14
Not OK
Bridge the N coloured cable
at the left no. plate light 14
with an earth
Not OK
Ok
Restore the continuity of the
N coloured cable between
the left no. plate light 14 and
the left rear earth 18
Check for voltage at the GR
coloured cable, connector E
pin 10 of the junction unit 4
OK
Restore the continuity of the
GR coloured cable between
the junction unit 4 and the
left no. plate light 14
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
The right no. plate light is not working
Check the condition of the
bulb
Not OK Replace the bulb
OK
10 Print no. 506.670/02
