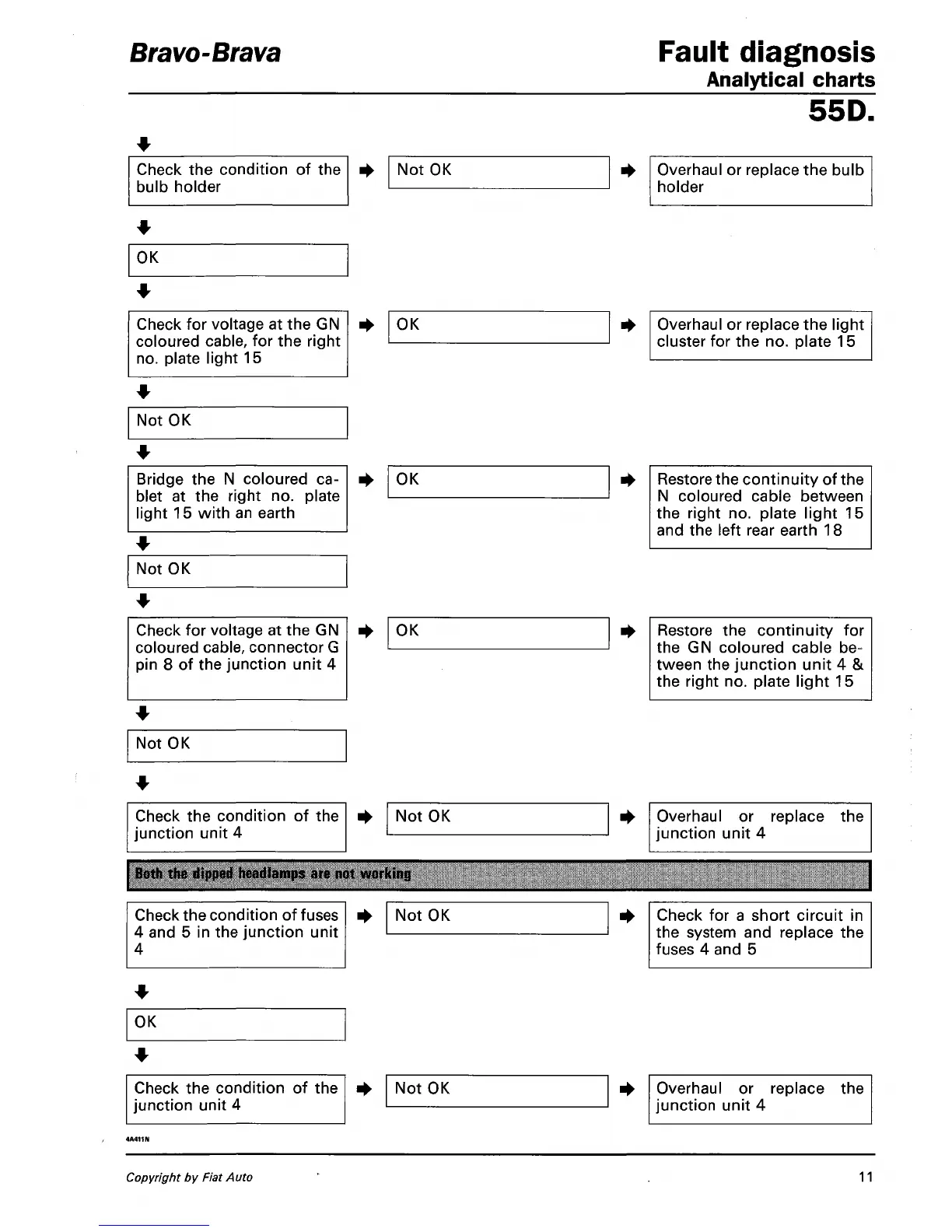

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Check for voltage at the GN
coloured cable, for the right
no.
plate light 15
OK
Overhaul or replace the light
cluster for the no. plate 15
Not OK
Bridge the N coloured ca-
blet at the right no. plate
light 15 with an earth
OK
Not OK
Restore the continuity of the
N coloured cable between
the right no. plate light 15
and the left rear earth 18
Check for voltage at the GN
coloured cable, connector G
pin 8 of the junction unit 4
OK Restore the continuity for
the GN coloured cable be-
tween the junction unit 4 &
the right no. plate light 15
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
Both
the
dipped headlamps
are not
working
Check the condition of fuses
4 and 5 in the junction unit
4
Not OK Check for a short circuit in
the system and replace the
fuses 4 and 5
OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
Copyright by Fiat Auto 11
