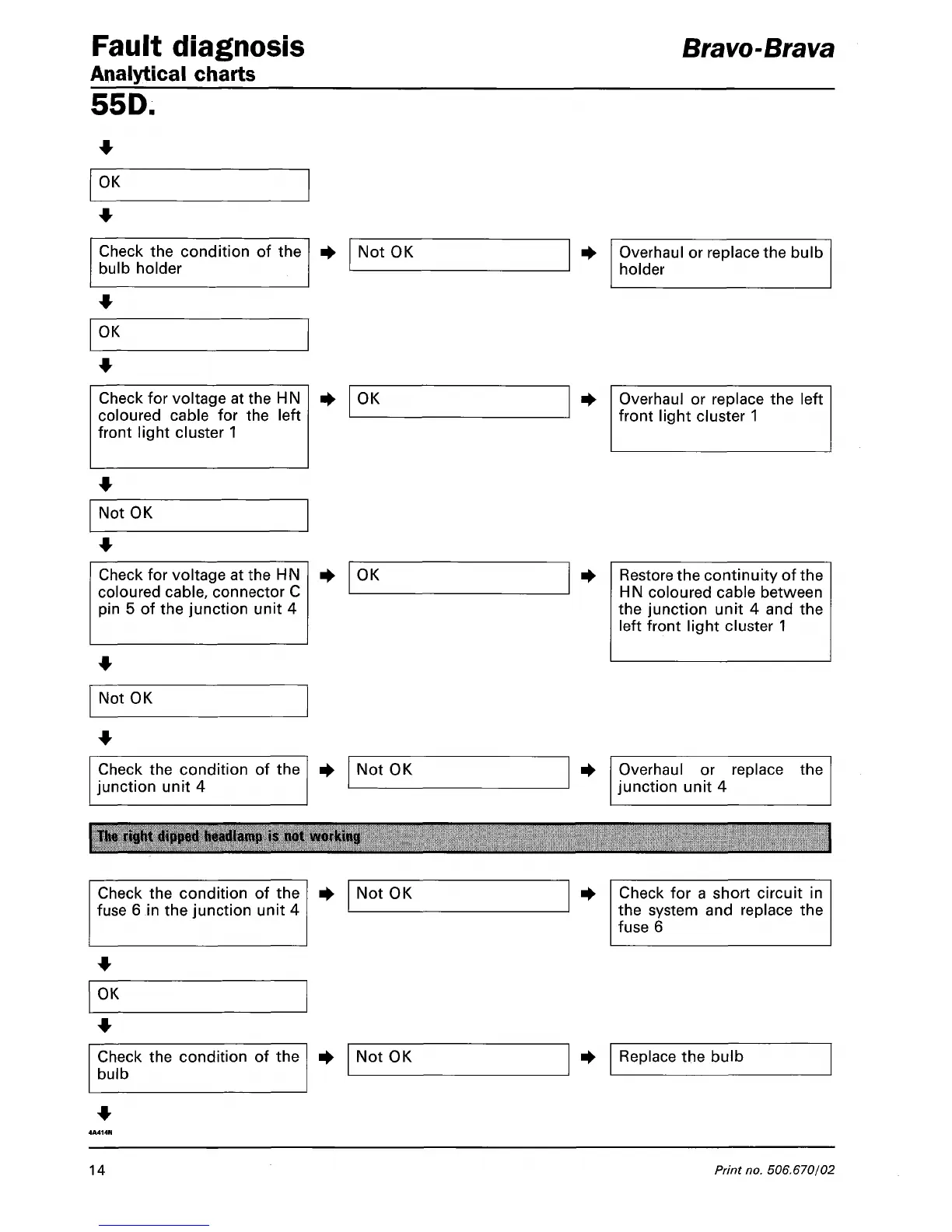

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
OK
Check the condition of the
bulb holder
Not OK
Overhaul or replace the bulb
holder
OK
Check for voltage at the HN
coloured cable for the left
front light cluster 1
OK
Overhaul or replace the left
front light cluster 1
Not OK
Check for voltage at the HN
coloured cable, connector C
pin 5 of the junction unit 4
OK
Restore the continuity of the
HN coloured cable between
the junction unit 4 and the
left front light cluster 1
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace
junction unit 4
the
The right dipped headlamp
is not
working
Check the condition of the
fuse 6 in the junction unit 4
Not OK
Check for a short circuit in
the system and replace the
fuse 6
OK
Check the condition of the
bulb
Not OK Replace the bulb
14 Print
no.
506.670/02
