Bravo-Brava

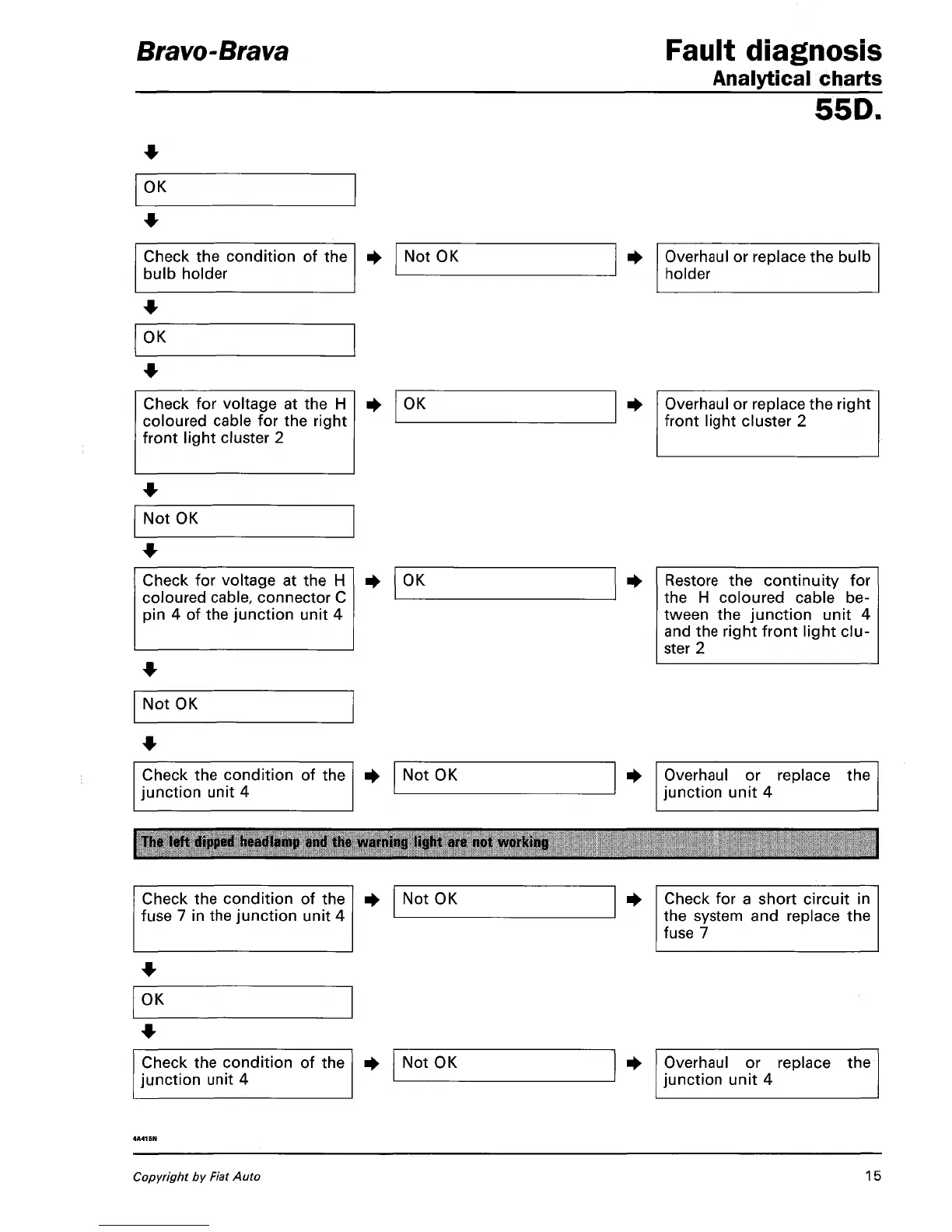

Fault diagnosis
Analytical charts
55D.
OK
Check the condition of the
bulb holder
Not OK Overhaul or replace the bulb
holder
OK
Check for voltage at the H
coloured cable for the right
front light cluster 2
OK Overhaul or replace the right
front light cluster 2
Not OK
Check for voltage at the H
coloured cable, connector C
pin 4 of the junction unit 4
OK
Restore the continuity for
the H coloured cable be-
tween the junction unit 4
and the right front light clu-
ster 2
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
The left dipped headlamp and the warning light are not working
Check the condition of the
fuse 7 in the junction unit 4
Not OK Check for a short circuit in
the system and replace the
fuse 7
OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
Copyright by Fiat Auto
15
