Bravo-Brava

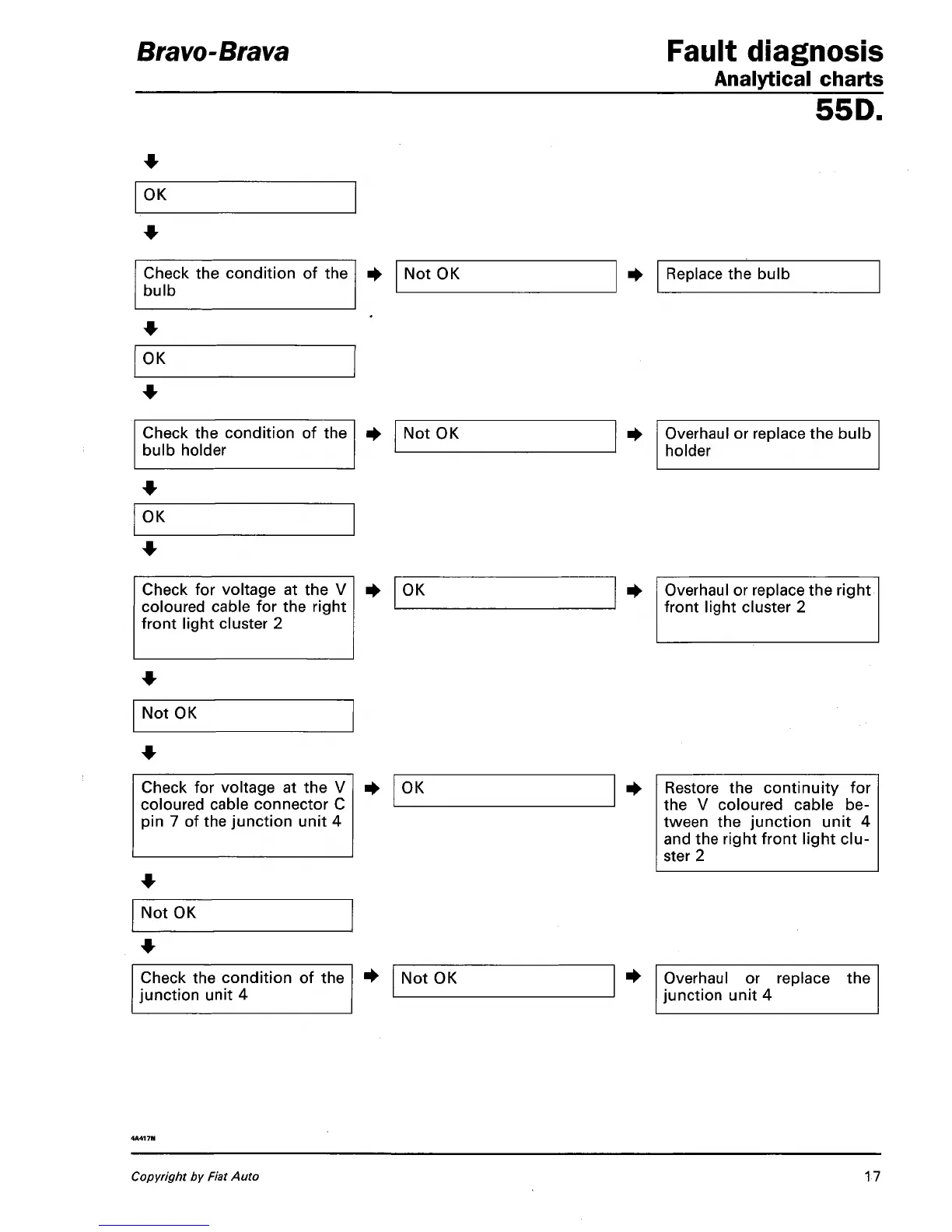

Fault diagnosis
Analytical charts
55D.
OK
Check the condition of the
bulb
Not OK
Replace the bulb
OK
Check the condition of the
bulb holder
Not OK Overhaul or replace the bulb
holder
OK
Check for voltage at the V
coloured cable for the right
front light cluster 2
OK
Overhaul or replace the right
front light cluster 2
Not OK
Check for voltage at the V
coloured cable connector C
pin 7 of the junction unit 4
OK Restore the continuity for
the V coloured cable be-
tween the junction unit 4
and the right front light clu-
ster 2
Not OK
Check the condition of the
junction unit 4
Not OK Overhaul or replace the
junction unit 4
