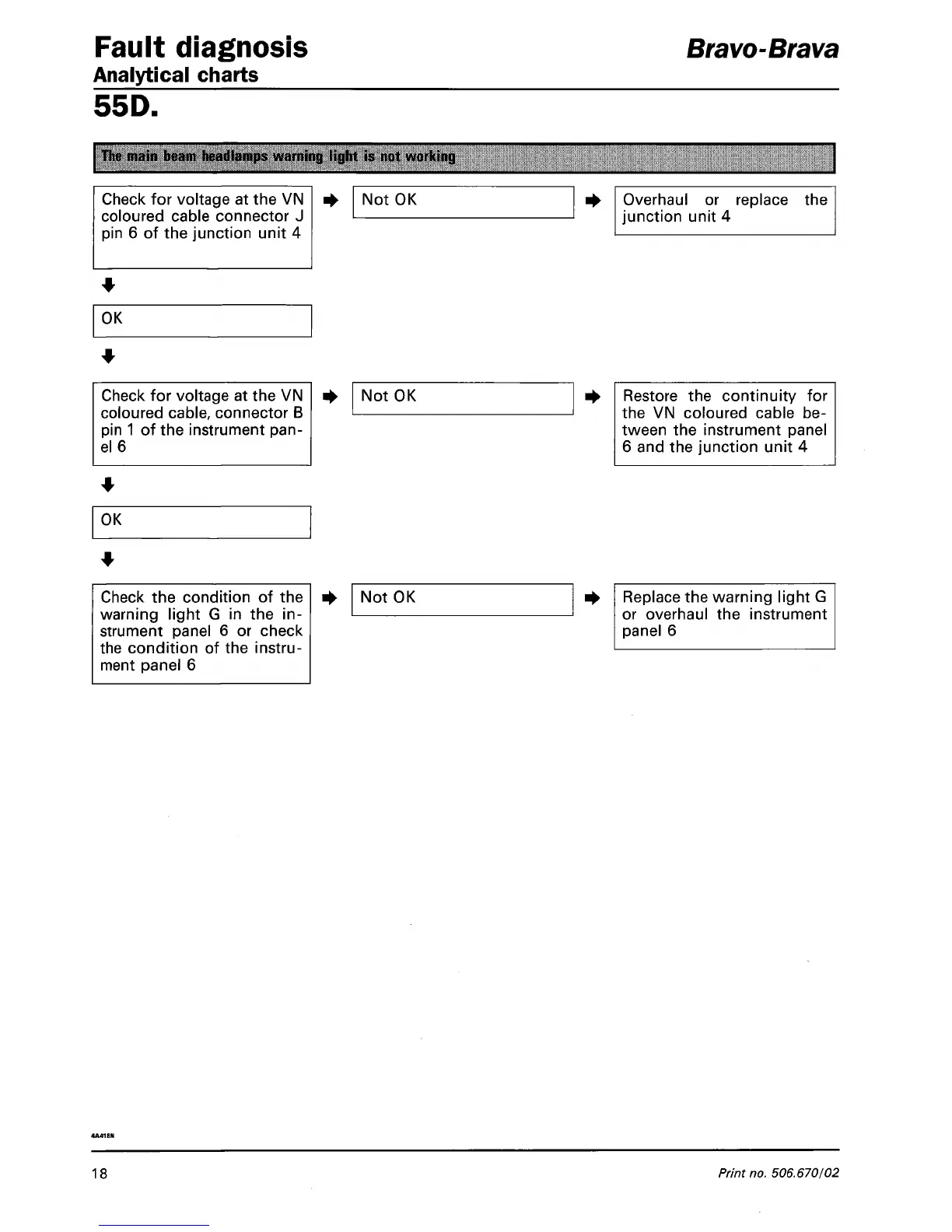

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
The main beam headlamps warning light
is not
working
Check for voltage at the VN
coloured cable connector J
pin 6 of the junction unit 4
Not OK Overhaul or replace the
junction unit 4
OK
Check for voltage at the VN
coloured cable, connector B
pin
1
of the instrument
pan-
el 6
Not OK Restore the continuity for
the VN coloured cable be-
tween the instrument panel
6 and the junction unit 4
OK
Check the condition of the
warning light G in the in-
strument panel 6 or check
the condition of the instru-
ment panel 6
Not OK
Replace the warning light G
or overhaul the instrument
panel 6
