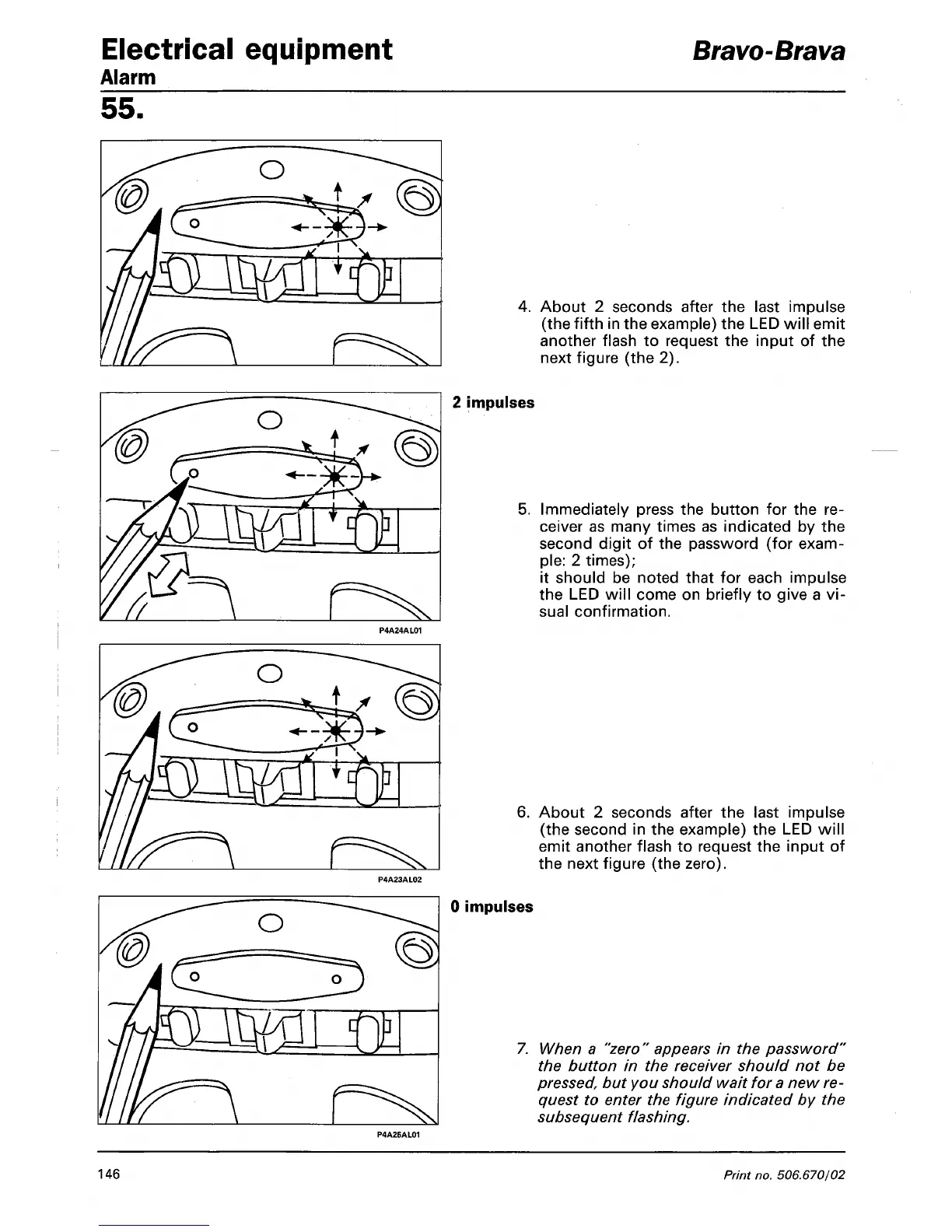

Electrical equipment
Alarm
Bravo-Brava
55.
4.
About 2 seconds after the last impulse
(the fifth in the example) the LED will emit
another flash to request the input of the
next figure (the 2).
2 impulses
Immediately press the button for the re-
ceiver as many times as indicated by the
second digit of the password (for exam-
ple:
2 times);
it should be noted that for each impulse
the LED will come on briefly to give a vi-
sual confirmation.
About 2 seconds after the last impulse
(the second in the example) the LED will
emit another flash to request the input of
the next figure (the zero).
0 impulses
7. When a "zero" appears in the password"
the button in the receiver should not be
pressed, but you should wait for
a
new re-
quest to enter the figure indicated by the
subsequent flashing.
146
Print no. 506.670/02
