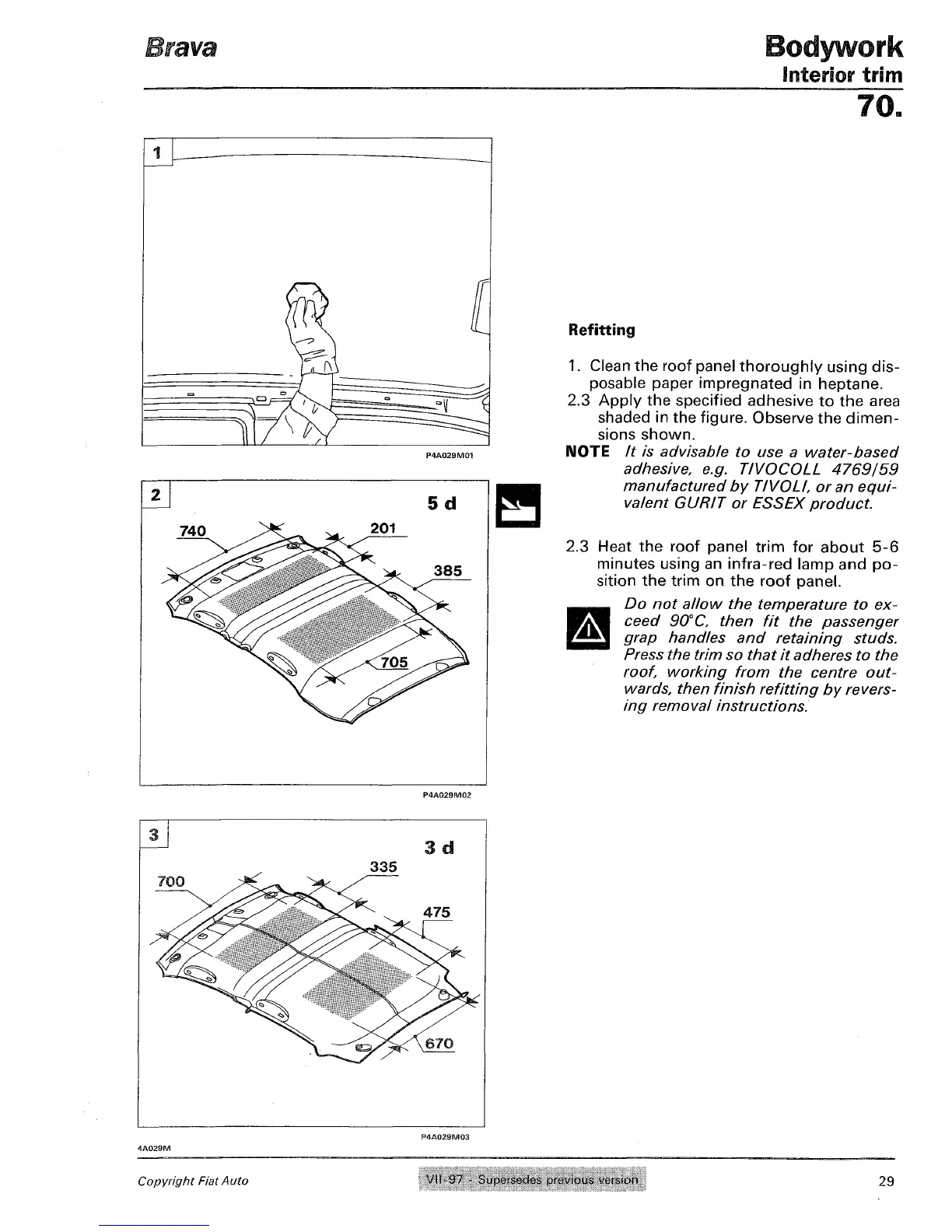

Clean the roof panel thoroughly using dis-
posable paper impregnated in heptane.
2.3 Apply the specified adhesive to the area
shaded in the figure. Observe the dimen-
sions shown.
NOTE It is advisable to use a water-based
adhesive, e.g. TIVOCOLL 4769/59
manufactured by TIVOLI, or an
equi-
valent GURU or ESSEX product.
2.3 Heat the roof panel trim for about 5-6
minutes using an infra-red lamp and po-
sition the trim on the roof panel.
Do not allow the temperature to ex-
ceed 90° C, then fit the passenger
grap handles and retaining studs.
Press the trim so that it adheres to the
roof,
working from the centre
out-
wards, then finish refitting by revers-
ing removal instructions.
