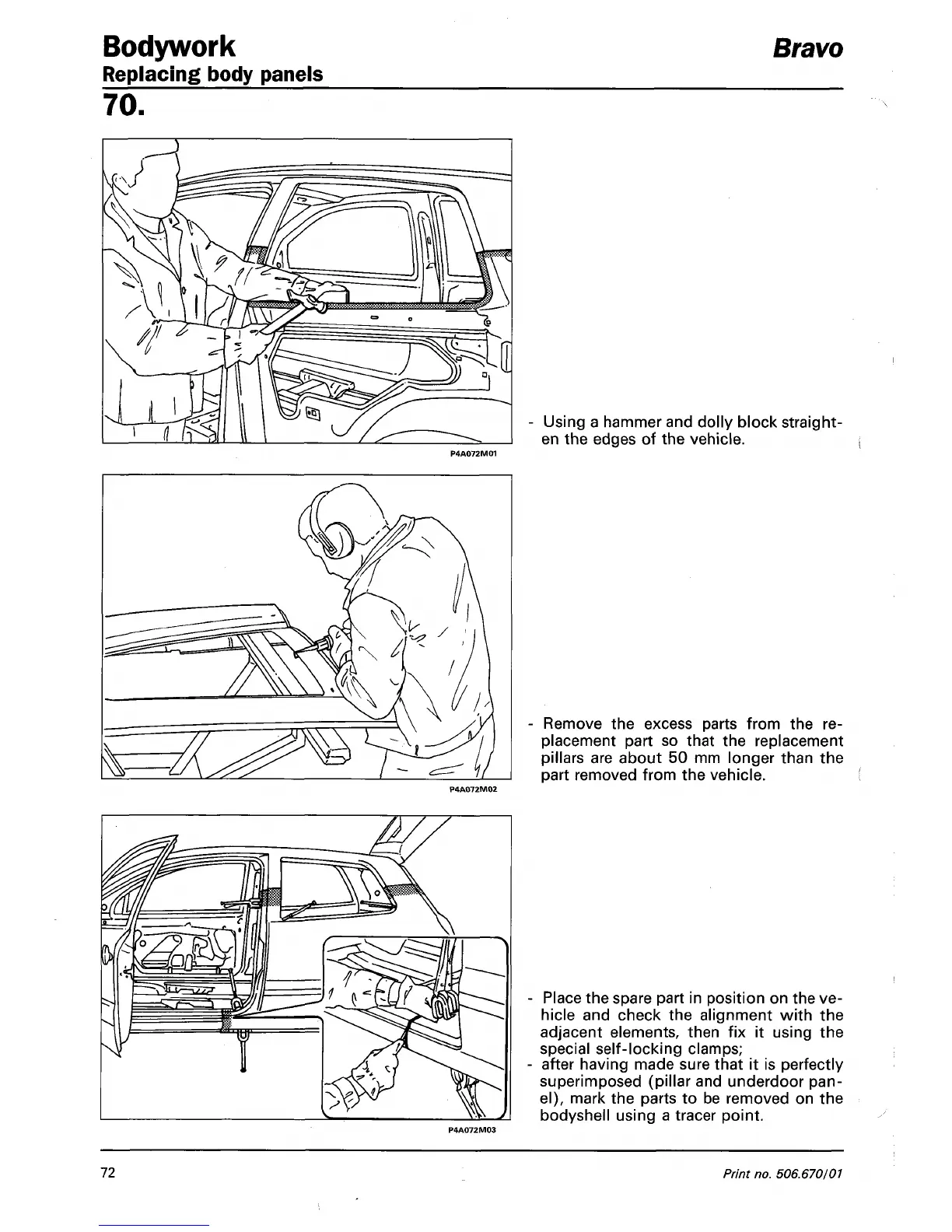

Bodywork
Replacing body panels
Bravo
70.
P4A072M01
Using a hammer and dolly block straight-
en the edges of the vehicle.
Remove the excess parts from the re-
placement part so that the replacement
pillars are about 50 mm longer than the
part removed from the vehicle.
P4A072M02
Place the spare part in position on the ve-
hicle and check the alignment with the
adjacent elements, then fix it using the
special self-locking clamps;
after having made sure that it is perfectly
superimposed (pillar and underdoor
pan-
el),
mark the parts to be removed on the
bodyshell using a tracer point.
P4A072M03
72
Print no. 506.670/01
