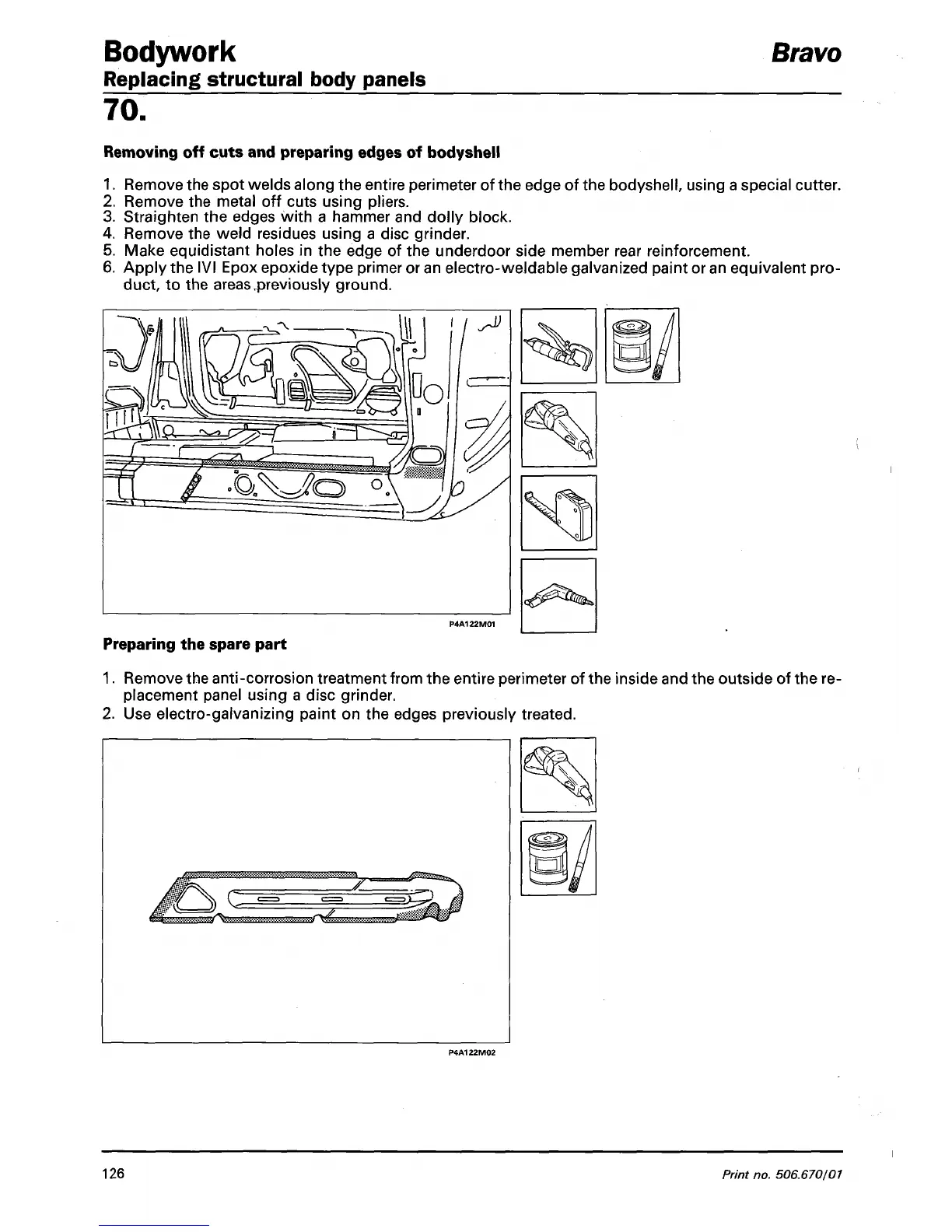

Bodywork Bravo
Replacing structural body panels
70.
Removing off cuts and preparing edges of bodyshell
1.
Remove the spot welds along the entire perimeter of the edge of the bodyshell, using a special cutter,
2.
Remove the metal off cuts using pliers.
3. Straighten the edges with a hammer and dolly block.
4.
Remove the weld residues using a disc grinder.
5. Make equidistant holes in the edge of the underdoor side member rear reinforcement.
6. Apply the IVI Epox epoxide type primer or an electro-weldable galvanized paint or an equivalent pro-
duct, to the areas ^previously ground.
Preparing the spare part
1.
Remove the anti-corrosion treatment from the entire perimeter of the inside and the outside of the re-
placement panel using a disc grinder.
2.
Use electro-galvanizing paint on the edges previously treated.
126
Print no. 506.670/01
