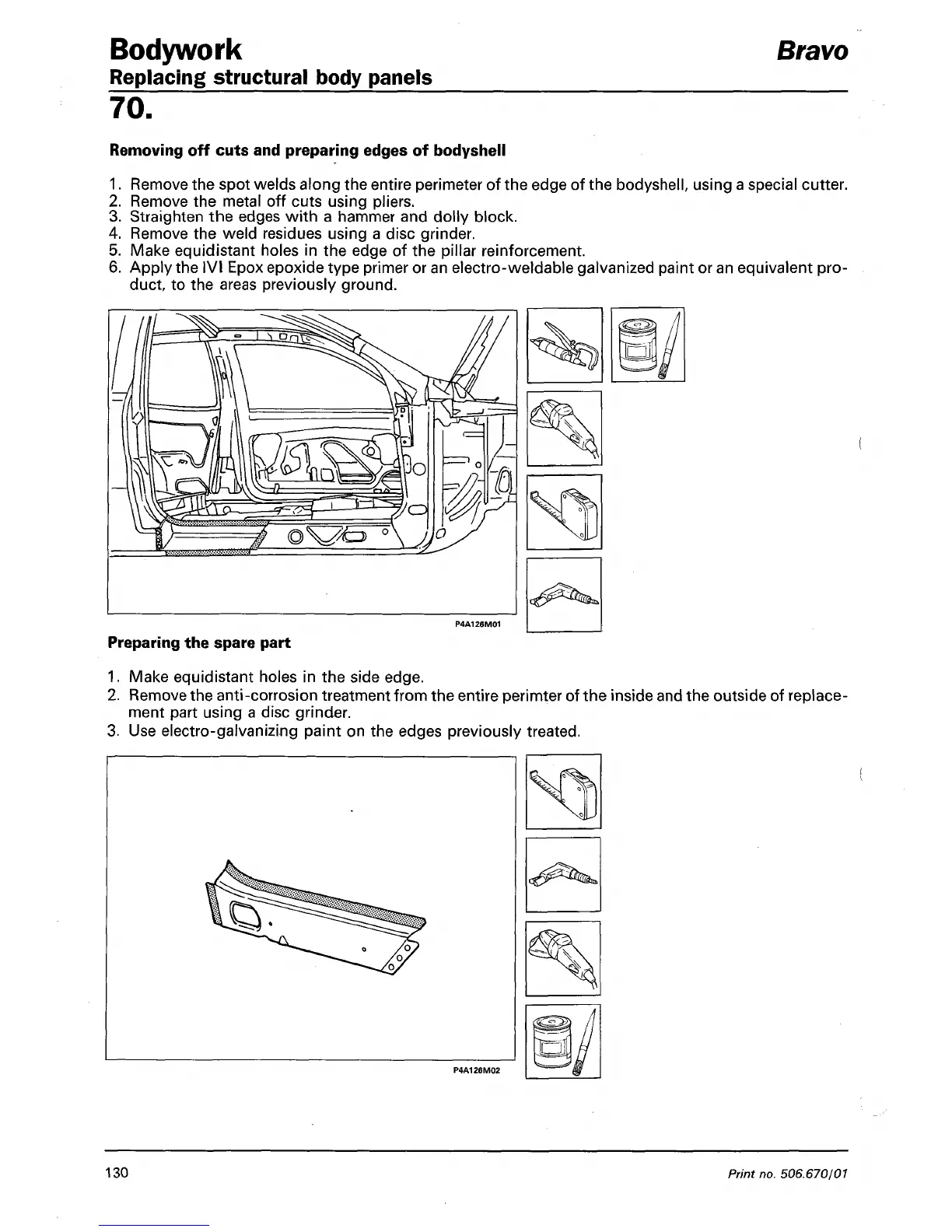

Bodywork
Replacing structural body panels
Bravo
70.
Removing off cuts and preparing edges of bodyshell
1.
Remove the spot welds along the entire perimeter of the edge of the bodyshell, using a special cutter.
2.
Remove the metal off cuts using pliers.
3. Straighten the edges with a hammer and dolly block.
4.
Remove the weld residues using a disc grinder.
5. Make equidistant holes in the edge of the pillar reinforcement.
6. Apply the IVI Epox epoxide type primer or an electro-weldable galvanized paint or an equivalent pro-
duct, to the areas previously ground.
0
^^\
\0 .
Preparing the spare part
1.
Make equidistant holes in the side edge.
2.
Remove the anti-corrosion treatment from the entire perimter of the inside and the outside of replace-
ment part using a disc grinder.
3. Use electro-galvanizing paint on the edges previously treated.
T
130
Print
no.
506.670/01
