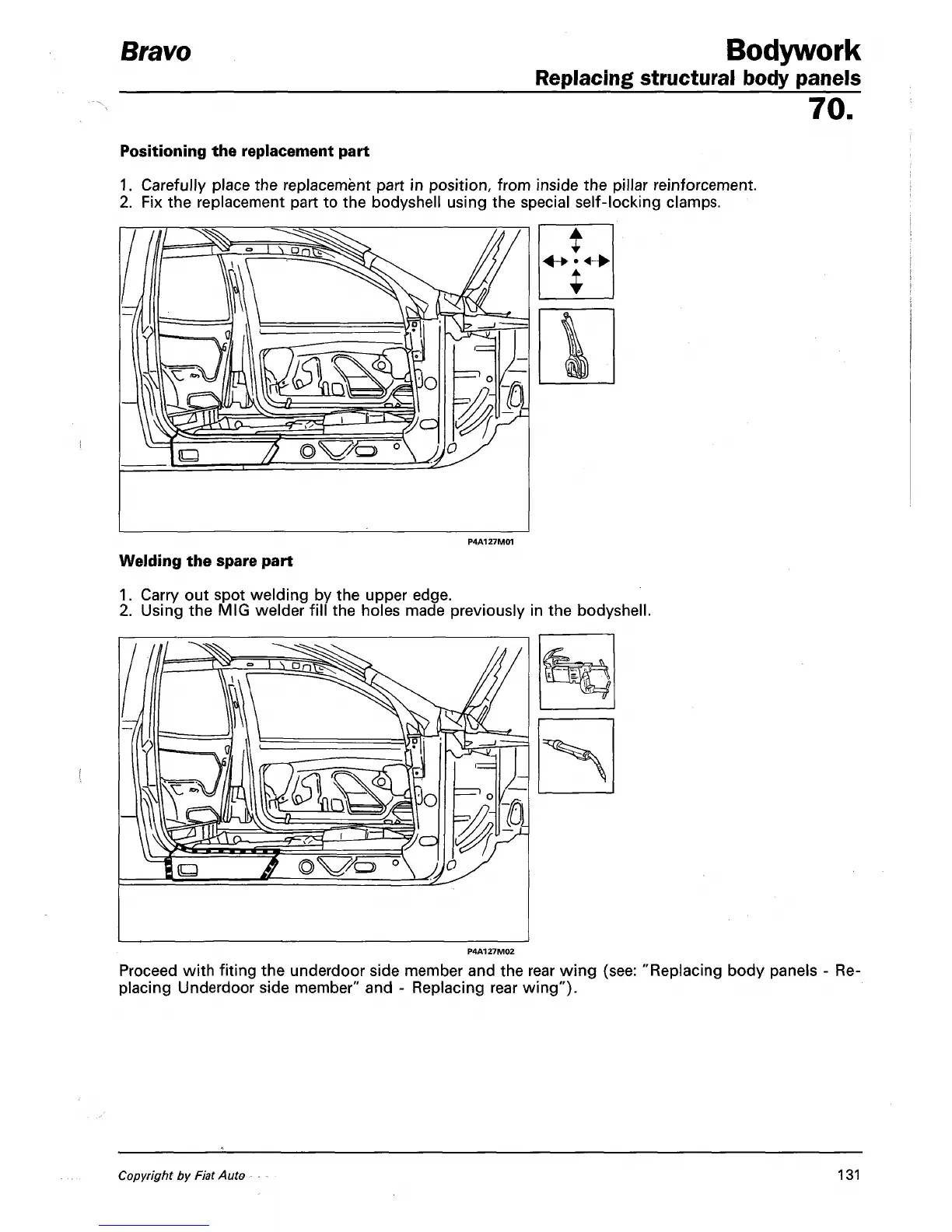

Bravo Bodywork
Replacing structural body panels
70.
Positioning the replacement part
1.
Carefully place the replacement part in position, from inside the pillar reinforcement.
2.
Fix the replacement part to the bodyshell using the special self-locking clamps.
Welding the spare part
1.
Carry out spot welding by the upper edge.
2.
Using the MIG welder fill the holes made previously in the bodyshell.
P4A127M02
Proceed with fiting the underdoor side member and the rear wing (see: "Replacing body panels - Re-
placing Underdoor side member" and - Replacing rear wing").
Copyright by
Fiat
Auto -
131
