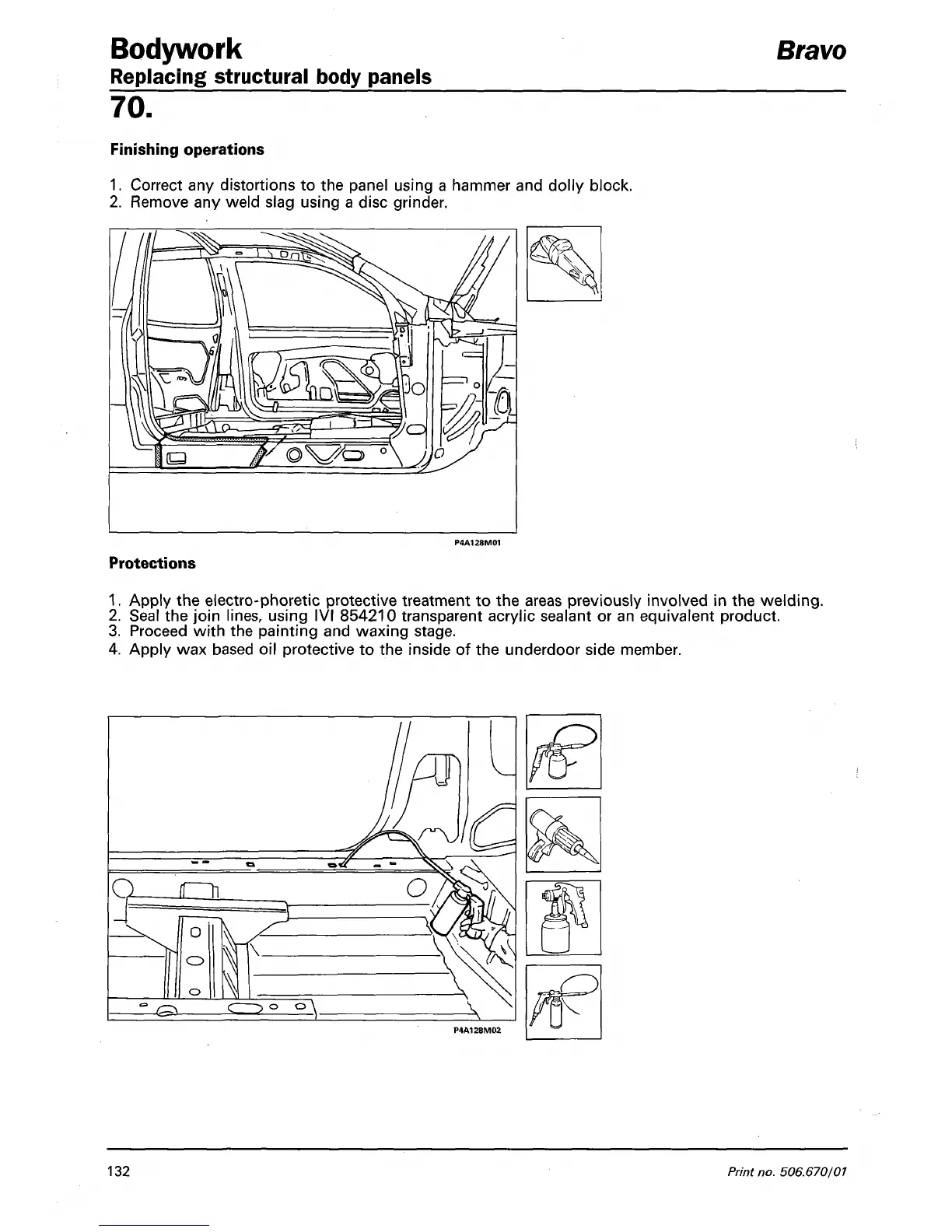

Bodywork Bravo
Replacing structural body panels
70.
Finishing operations
1.
Correct any distortions to the panel using a hammer and dolly block.
2.
Remove any weld slag using a disc grinder.
Protections
1.
Apply the electro-phoretic protective treatment to the areas previously involved in the welding.
2.
Seal the join lines, using IVI 854210 transparent acrylic sealant or an equivalent product.
3. Proceed with the painting and waxing stage.
4.
Apply wax based oil protective to the inside of the underdoor side member.
132
Print no. 506.670/01
