Bravo-Brava Bodywork
Replacing structural body panels
70.

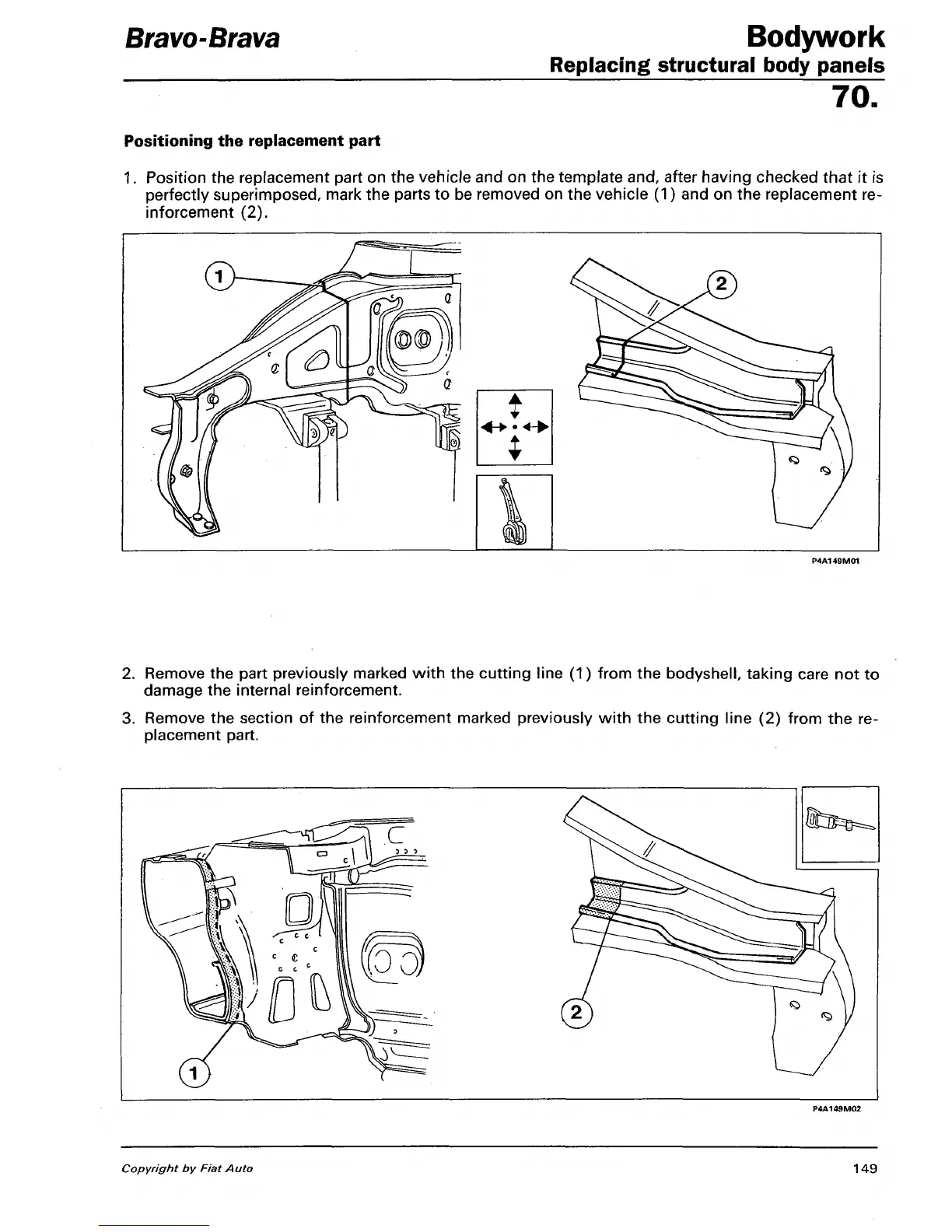

Positioning the replacement part
1.
Position the replacement part on the vehicle and on the template and, after having checked that it is
perfectly superimposed, mark the parts to be removed on the vehicle (1) and on the replacement re-
inforcement (2).
P4A149M01
2.
Remove the part previously marked with the cutting line (1) from the bodyshell, taking care not to
damage the internal reinforcement.
3. Remove the section of the reinforcement marked previously with the cutting line (2) from the re-
placement part.
Copyright by Fiat Auto
149
