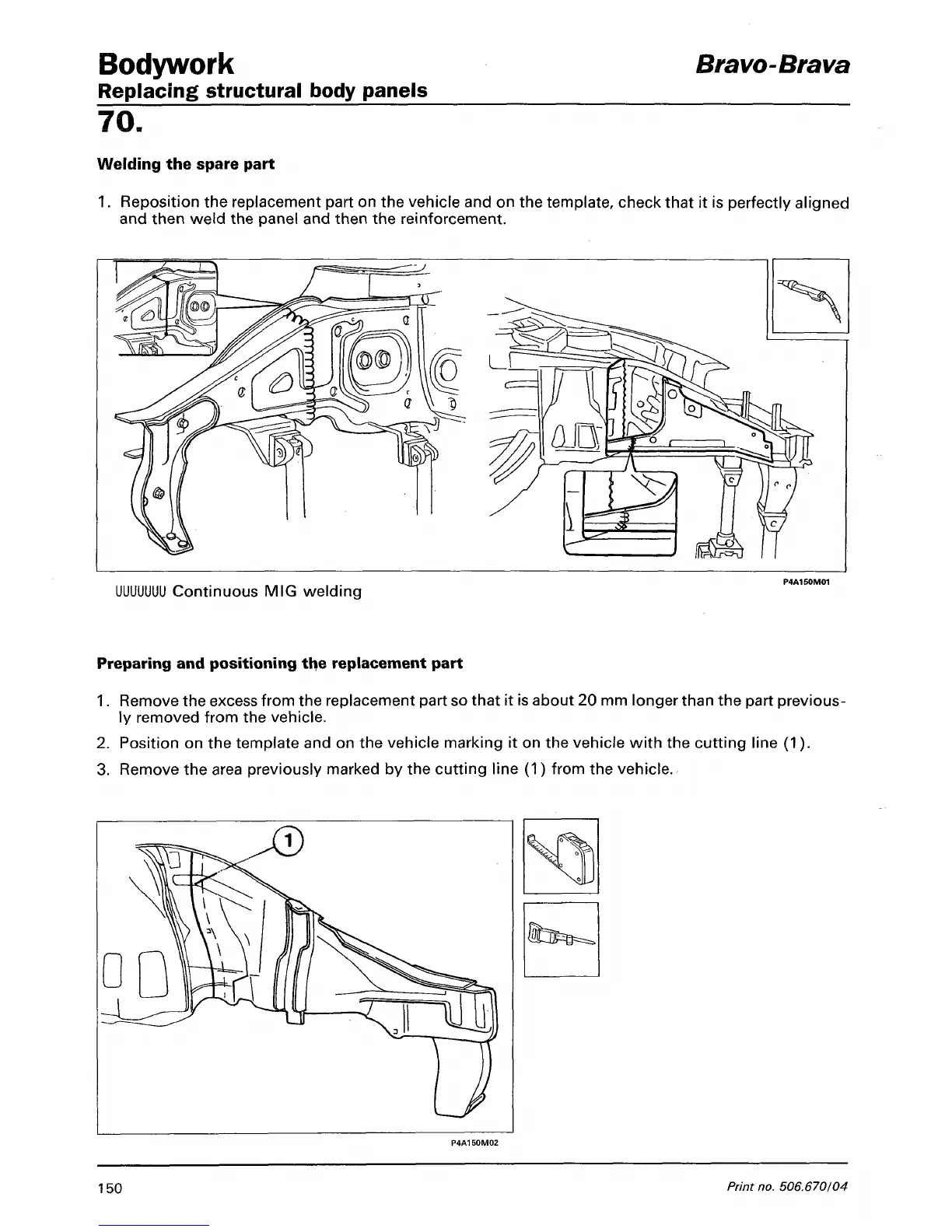

Bodywork Bravo-Brava
Replacing structural body panels
70.
Welding the spare part
1.
Reposition the replacement part on the vehicle and on the template, check that it is perfectly aligned
and then weld the panel and then the reinforcement.
UUUUUUU Continuous MIG welding
Preparing and positioning the replacement part
1.
Remove the excess from the replacement part so that it is about 20 mm longer than the part previous-
ly removed from the vehicle.
2.
Position on the template and on the vehicle marking it on the vehicle with the cutting line (1).
3. Remove the area previously marked by the cutting line (1) from the vehicle.
P4A150M02
150
Print
no.
506.670/04
