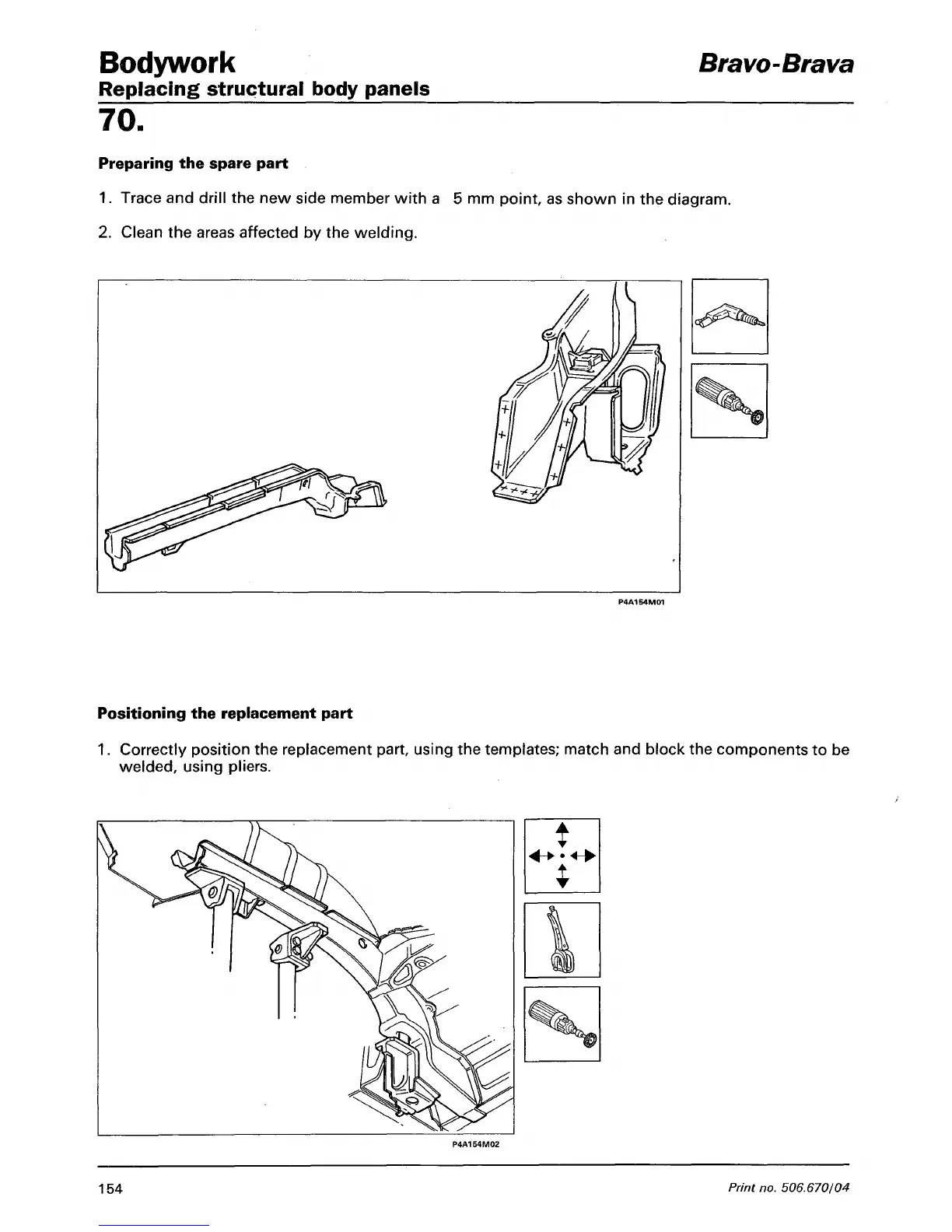

Bodywork Bravo-Brava
Replacing structural body panels
70.
Preparing the spare part
1.
Trace and drill the new side member with a 5 mm point, as shown in the diagram.
2.
Clean the areas affected by the welding.
P4A154M01
Positioning the replacement part
1.
Correctly position the replacement part, using the templates; match and block the components to be
welded,
using pliers.
154
Print no. 506.670/04
