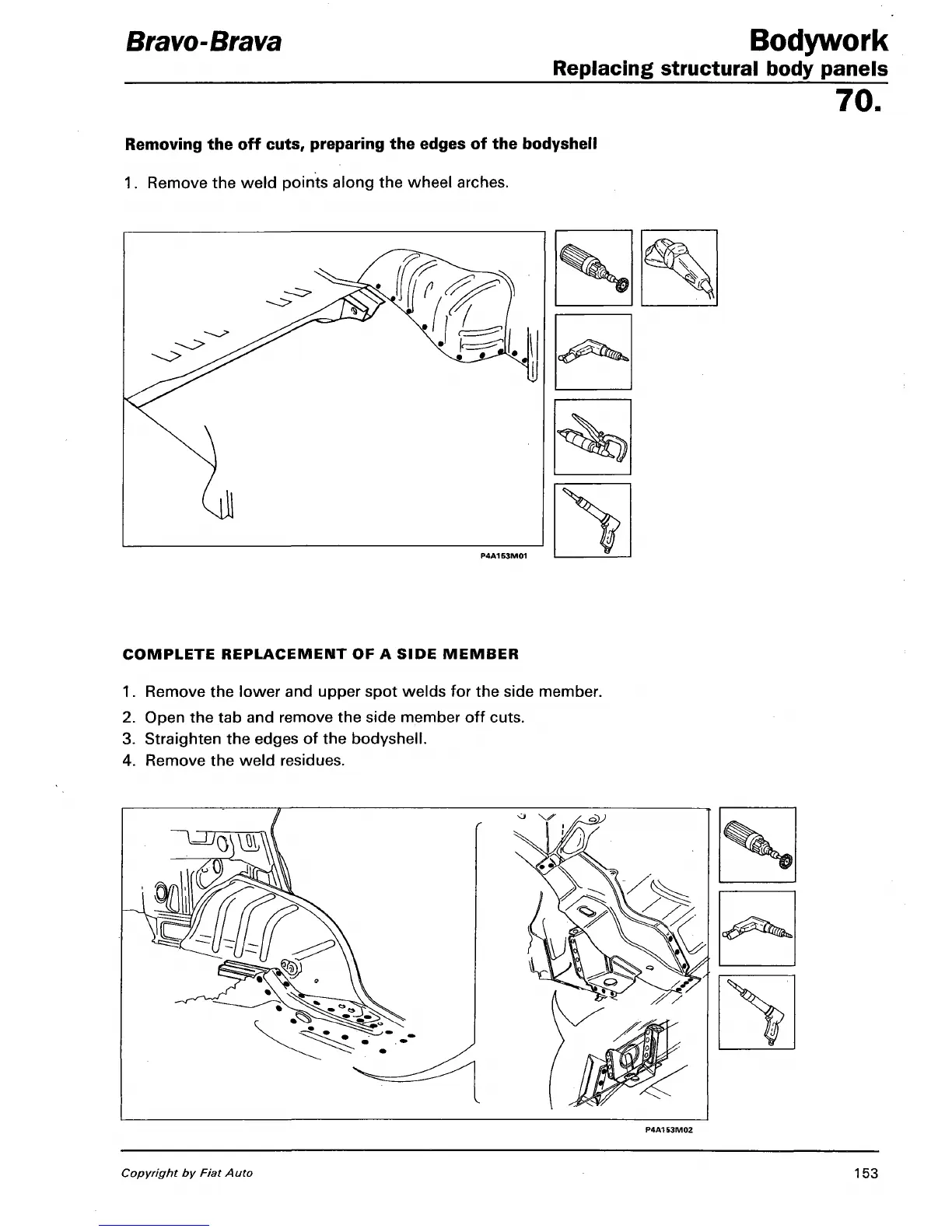

Bravo-Brava Bodywork
Replacing structural body panels
70.
Removing the off cuts, preparing the edges of the bodyshell
1.
Remove the weld points along the wheel arches.
COMPLETE REPLACEMENT OF A SIDE MEMBER
1.
Remove the lower and upper spot welds for the side member.
2.
Open the tab and remove the side member off cuts.
3. Straighten the edges of the bodyshell.
4.
Remove the weld residues.
P4A183M02
Copyright by Fiat Auto
153
