Bodywork
Replacing structural body panels
70

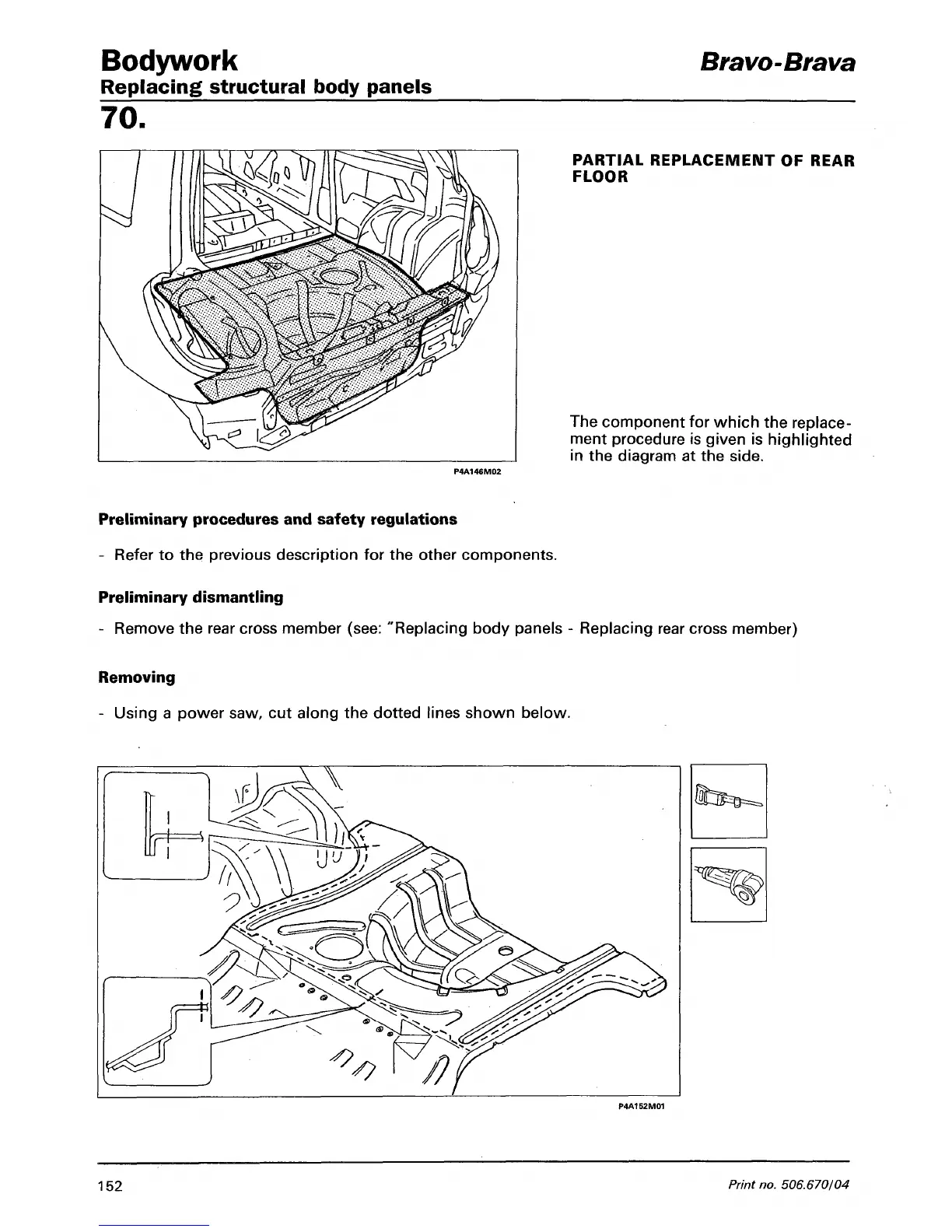

PARTIAL REPLACEMENT OF REAR
FLOOR
The component for which the replace-
ment procedure is given is highlighted
in the diagram at the side.
Preliminary procedures and safety regulations
- Refer to the previous description for the other components.
Preliminary dismantling
- Remove the rear cross member (see: "Replacing body panels - Replacing rear cross member)
Removing
- Using a power saw, cut along the dotted lines shown below.
Bravo-Brava
152
Print no. 506.670/04
