Fault diagnosis

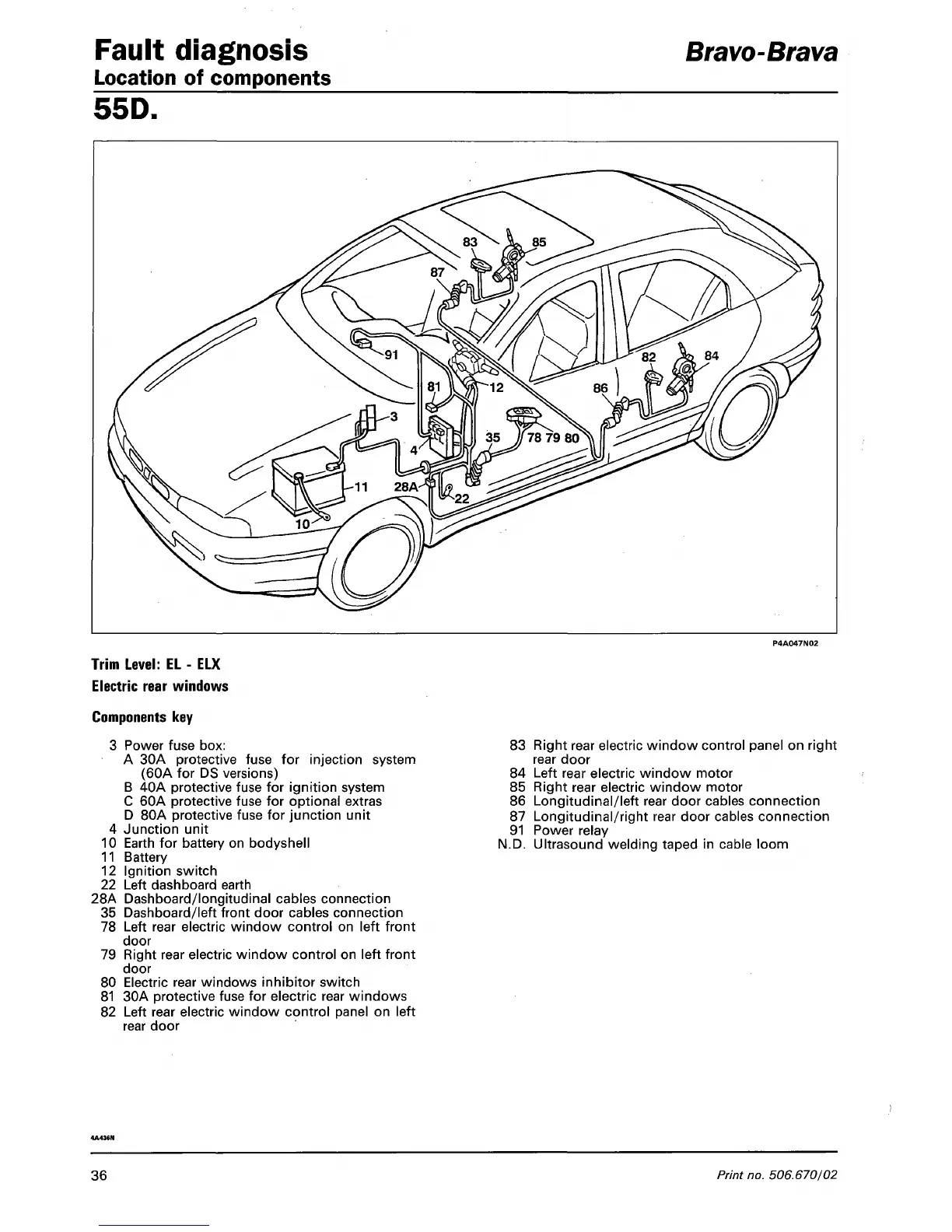

Location of components
Bravo-Brava
55D.
P4A047N02
injection system
Trim Level: EL - ELX
Electric rear windows
Components key
3 Power fuse box:
A 30A protective fuse for
(60A for DS versions)
B 40A protective fuse for ignition system
C 60A protective fuse for optional extras
D 80A protective fuse for junction unit
Junction unit
Earth for battery on bodyshell
Battery
Ignition switch
Left dashboard earth
28A Dashboard/longitudinal cables connection
35 Dashboard/left front door cables connection
Left rear electric window control on left front
door
Right rear electric window control on left front
door
Electric rear windows inhibitor switch
30A protective fuse for electric rear windows
Left rear electric window control panel on left
rear door
83
4
10
11
12
22
78
79
80
81
82
Right rear electric window control panel on right
rear door
Left rear electric window motor
Right rear electric window motor
Longitudinal/left rear door cables connection
87 Longitudinal/right rear door cables connection
91 Power relay
N.D. Ultrasound welding taped in cable loom
84
85
86
36
Print no. 506.670/02
