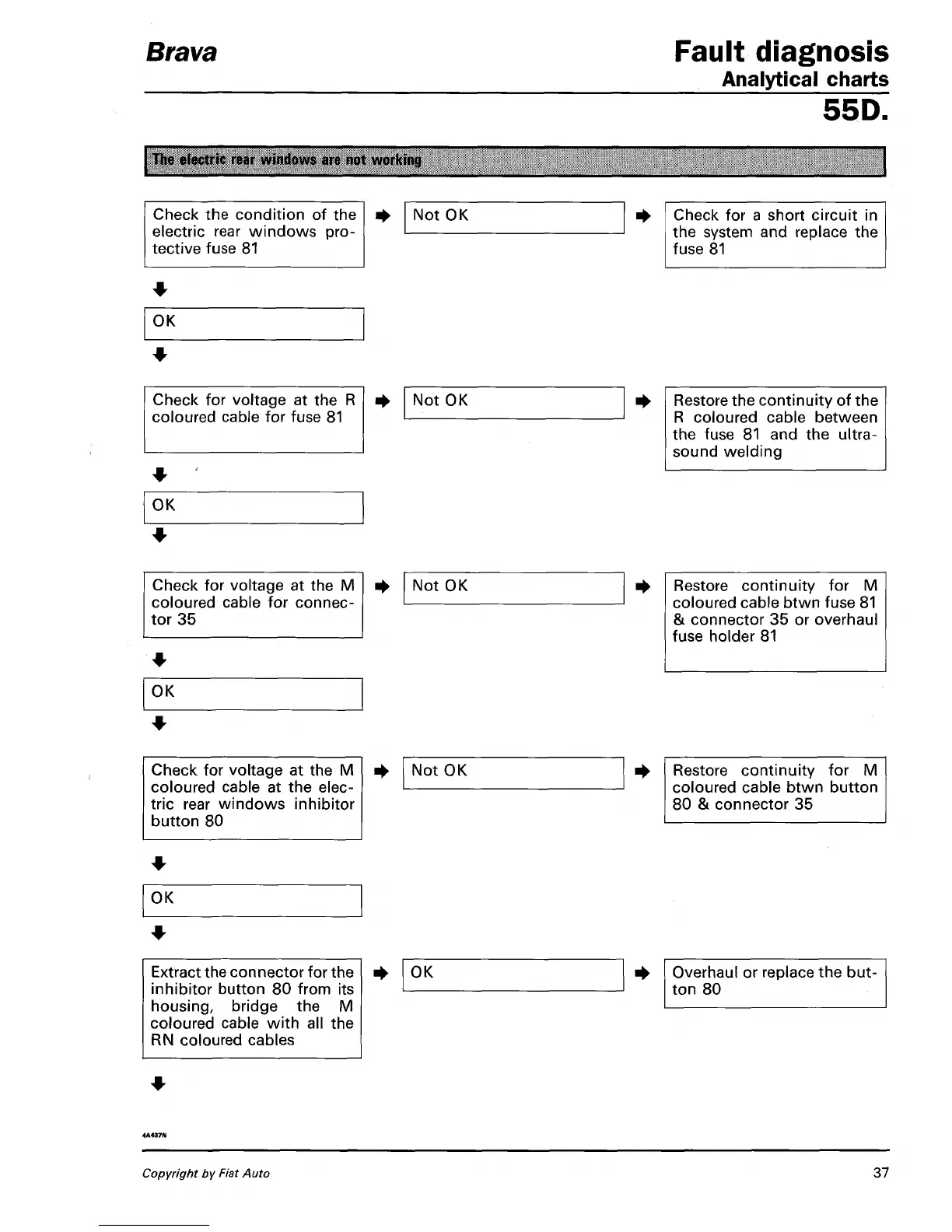

Brava
Fault diagnosis
Analytical charts
55D.
The electric rear windows
are not
working
Check the condition of the
electric rear windows pro-
tective fuse 81
Not OK
Check for a short circuit in
the system and replace the
fuse 81
OK
Check for voltage at the R
coloured cable for fuse 81
Not OK Restore the continuity of the
R coloured cable between
the fuse 81 and the ultra-
sound welding
OK
Check for voltage at the M
coloured cable for connec-
tor 35
Not OK Restore continuity for M
coloured cable btwn fuse 81
& connector 35 or overhaul
fuse holder 81
OK
Check for voltage at the M
coloured cable at the elec-
tric rear windows inhibitor
button 80
Not OK Restore continuity for M
coloured cable btwn button
80 & connector 35
OK
Extract the connector for the
inhibitor button 80 from its
housing,
bridge the M
coloured cable with all the
RN coloured cables
OK Overhaul or replace the but-
ton 80
Copyright by Fiat Auto
37
