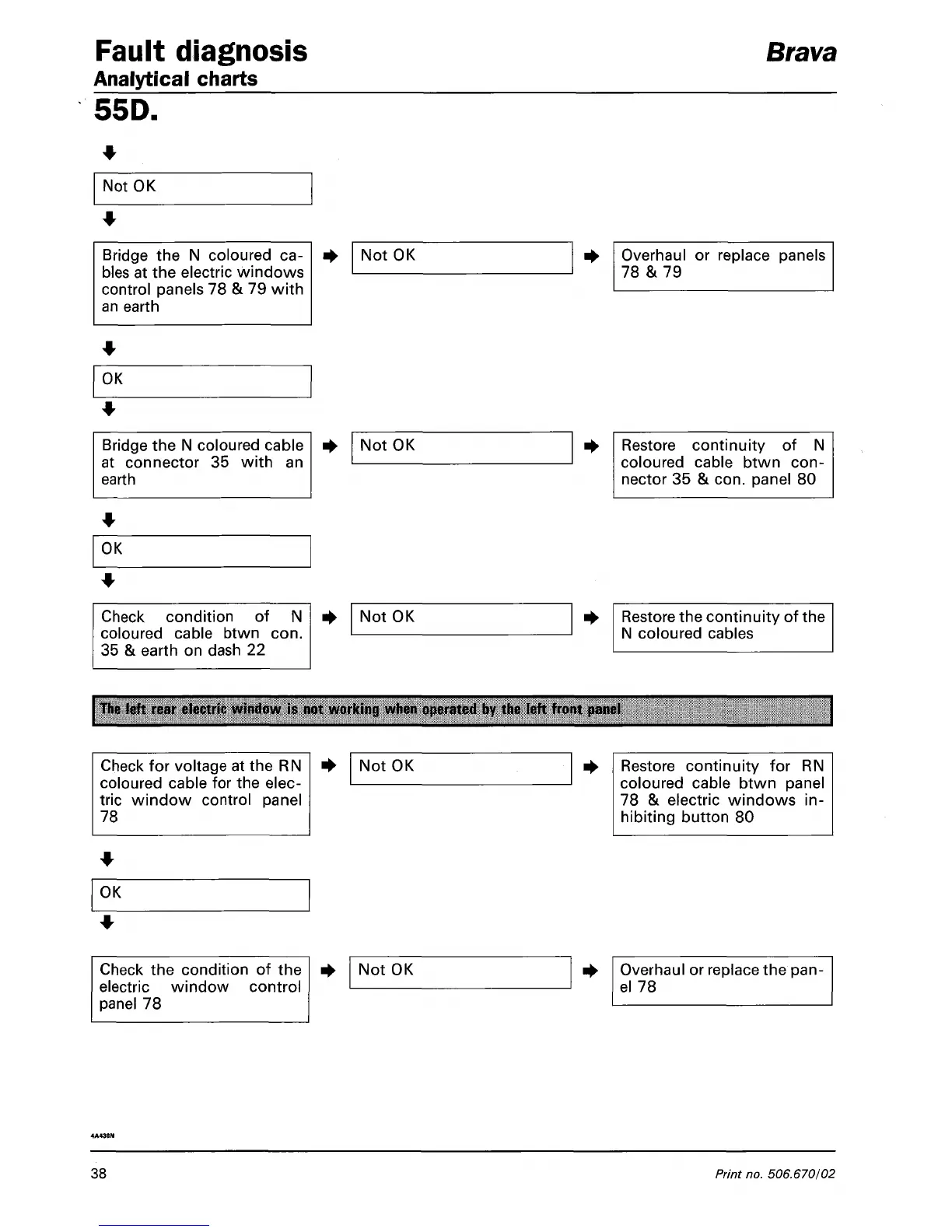

Fault diagnosis
Analytical charts
Brava
55D.
Not OK
Bridge the N coloured ca-
bles at the electric windows
control panels 78 & 79 with
an earth
Not OK Overhaul or replace panels
78 &79
OK
Bridge the N coloured cable
at connector 35 with an
earth
Not OK
Restore continuity of N
coloured cable btwn
con-
nector 35 & con. panel 80
OK
Check condition of N
coloured cable btwn con.
35 & earth on dash 22
Not OK
Restore the continuity of the
N coloured cables
The left rear electric window
is not
working when operated
by the
left front panel
Check for voltage at the RN
coloured cable for the elec-
tric window control panel
78
Not OK Restore continuity for RN
coloured cable btwn panel
78 & electric windows in-
hibiting button 80
OK
Check the condition of the
electric window control
panel 78
Not OK Overhaul or replace the
pan-
el 78
38
Print no. 506.670/02
