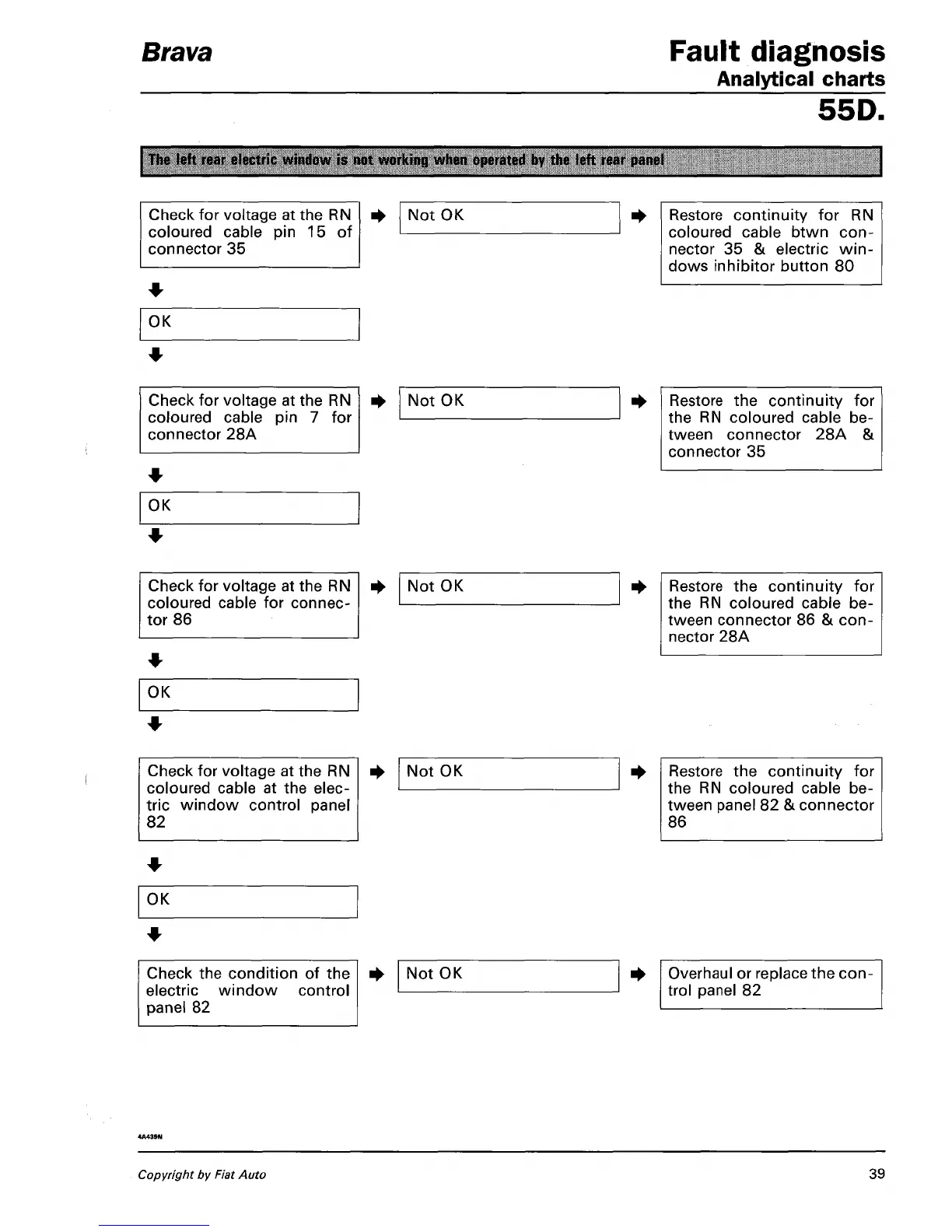

Brava Fault diagnosis
Analytical charts
55D.
The left rear electric window
is not
working when operated
by the
left rear panel
Check for voltage at the RN
coloured cable pin 15 of
connector 35
Not OK Restore continuity for RN
coloured cable btwn
con-
nector 35 & electric
win-
dows inhibitor button 80
OK
Check for voltage at the RN
coloured cable pin 7 for
connector 28A
Not OK Restore the continuity for
the RN coloured cable be-
tween connector 28A &
connector 35
OK
Check for voltage at the RN
coloured cable for connec-
tor 86
Not OK
Restore the continuity for
the RN coloured cable be-
tween connector 86 &
con-
nector 28 A
OK
Check for voltage at the RN
coloured cable at the elec-
tric window control panel
82
Not OK Restore the continuity for
the RN coloured cable be-
tween panel 82 & connector
86
OK
Check the condition of the
electric window control
panel 82
Not OK Overhaul or replace the
con-
trol panel 82
