Fiat Brava - Page 67

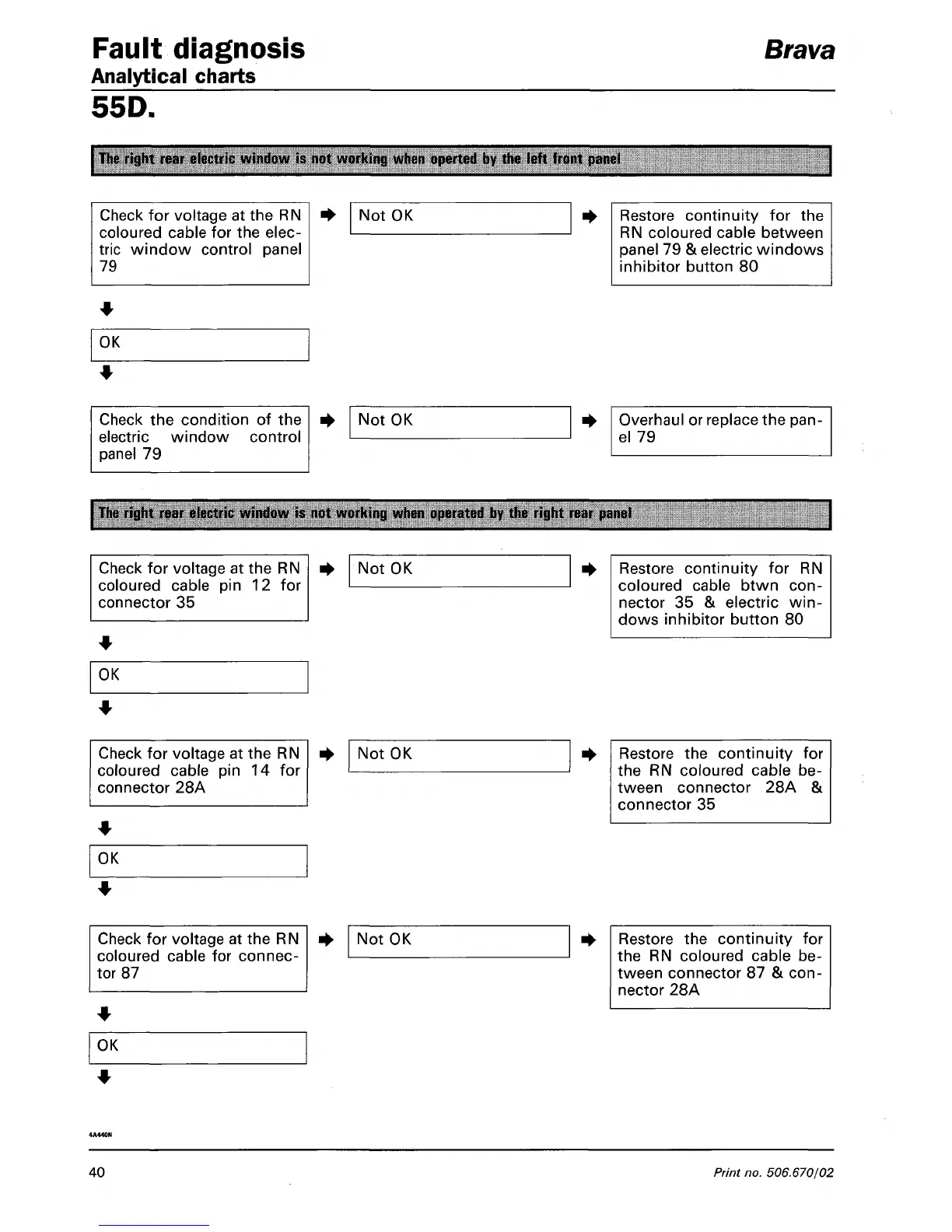

Fault diagnosis
Analytical charts
Btava
55D.
The right reai electiic window is not working when operted by the left front panel
Check for voltage at the RN
coloured cable for the elec-
tric window control panel
79
Not OK
Restore continuity for the
RN coloured cable between
panel 79 & electric windows
inhibitor button 80
OK
Check the condition of the
electric window control
panel 79
Not OK Overhaul or replace the pan-
el 79
The right rear electric window is not working when operated by the tight reai panel
Check for voltage at the RN
coloured cable pin 12 for
connector 35
Not OK
Restore continuity for RN
coloured cable btwn con-
nector 35 & electric win-
dows inhibitor button 80
OK
Check for voltage at the RN
coloured cable pin 14 for
connector 28A
Not OK
Restore the continuity for
the RN coloured cable be-
tween connector 28A &
connector 35
OK
Check for voltage at the RN
coloured cable for connec-
tor 87
Not OK
Restore the continuity for
the RN coloured cable be-
tween connector 87 & con-
nector 28A
OK
40 Print no. 506.670/02
