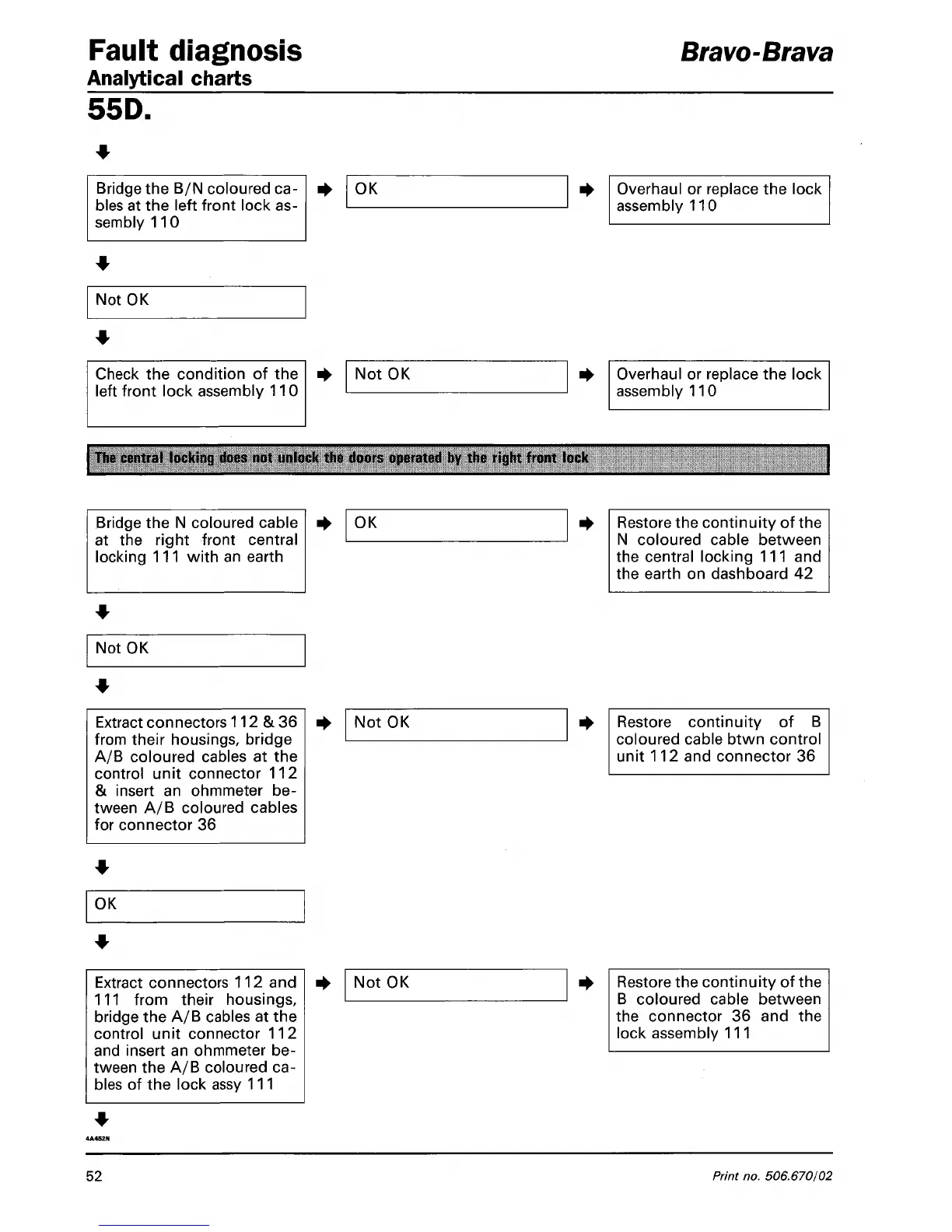

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
Bridge the B/N coloured ca-
bles at the left front lock as-
sembly 110
OK Overhaul or replace the lock
assembly 110
Not OK
Check the condition of the
left front lock assembly 110
Not OK Overhaul or replace the lock
assembly 110
The central locking does not unlock the doois operated by the right fiont lock
Bridge the N coloured cable
at the right front central
locking 111 with an earth
OK
Restore the continuity of the
N coloured cable between
the central locking 111 and
the earth on dashboard 42
Not OK
Extract connectors 112 & 36
from their housings, bridge
A/B coloured cables at the
control unit connector 112
& insert an ohmmeter be-
tween A/B coloured cables
for connector 36
Not OK
Restore continuity of B
coloured cable btwn control
unit 112 and connector 36
OK
Extract connectors 112 and
111 from their housings,
bridge the A/B cables at the
control unit connector 112
and insert an ohmmeter be-
tween the A/B coloured ca-
bles of the lock assy 111
Not OK
Restore the continuity of the
B coloured cable between
the connector 36 and the
lock assembly 111
52
Print no. 506.670/02
