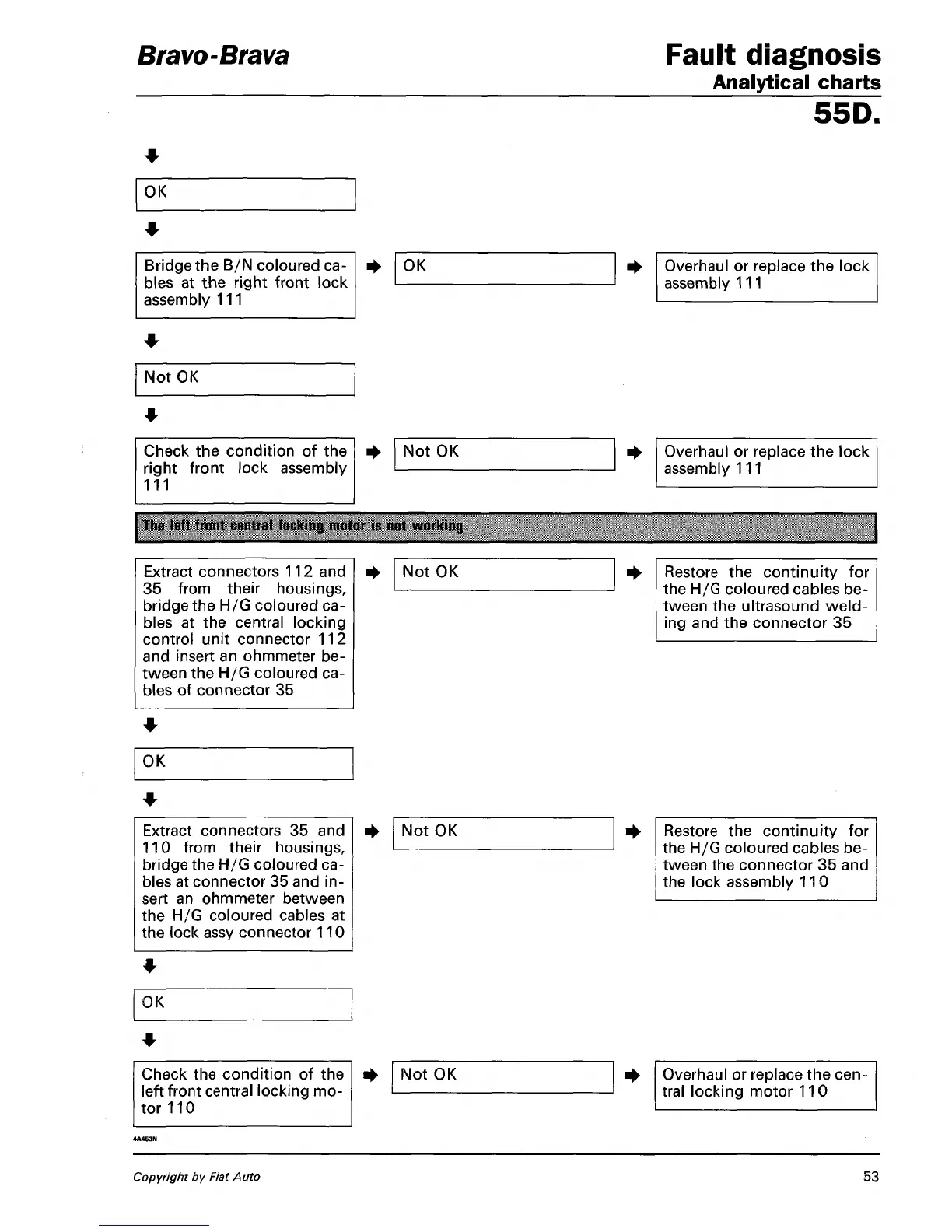

Bravo-Brava
Fault diagnosis
Analytical charts
55D.
OK
Bridge the B/N coloured ca-
bles at the right front lock
assembly 111
OK
Overhaul or replace the lock
assembly 111
Not OK
Check the condition of the
right front lock assembly
111
Not OK
Overhaul or replace the lock
assembly 111
The left front central locking motor
is not
working
Extract connectors 112 and
35 from their housings,
bridge the H/G coloured ca-
bles at the central locking
control unit connector 112
and insert an ohmmeter be-
tween the H/G coloured ca-
bles of connector 35
Not OK
Restore the continuity for
the H/G coloured cables be-
tween the ultrasound
weld-
ing and the connector 35
OK
Extract connectors 35 and
110 from their housings,
bridge the H/G coloured ca-
bles at connector 35 and in-
sert an ohmmeter between
the H/G coloured cables at
the lock assy connector 110
Not OK
Restore the continuity for
the H/G coloured cables be-
tween the connector 35 and
the lock assembly 110
OK
Check the condition of the
left front central locking mo-
tor 110
# Not OK Overhaul or replace the
cen-
tral locking motor 110
Copyright by
Fiat
Auto
53
