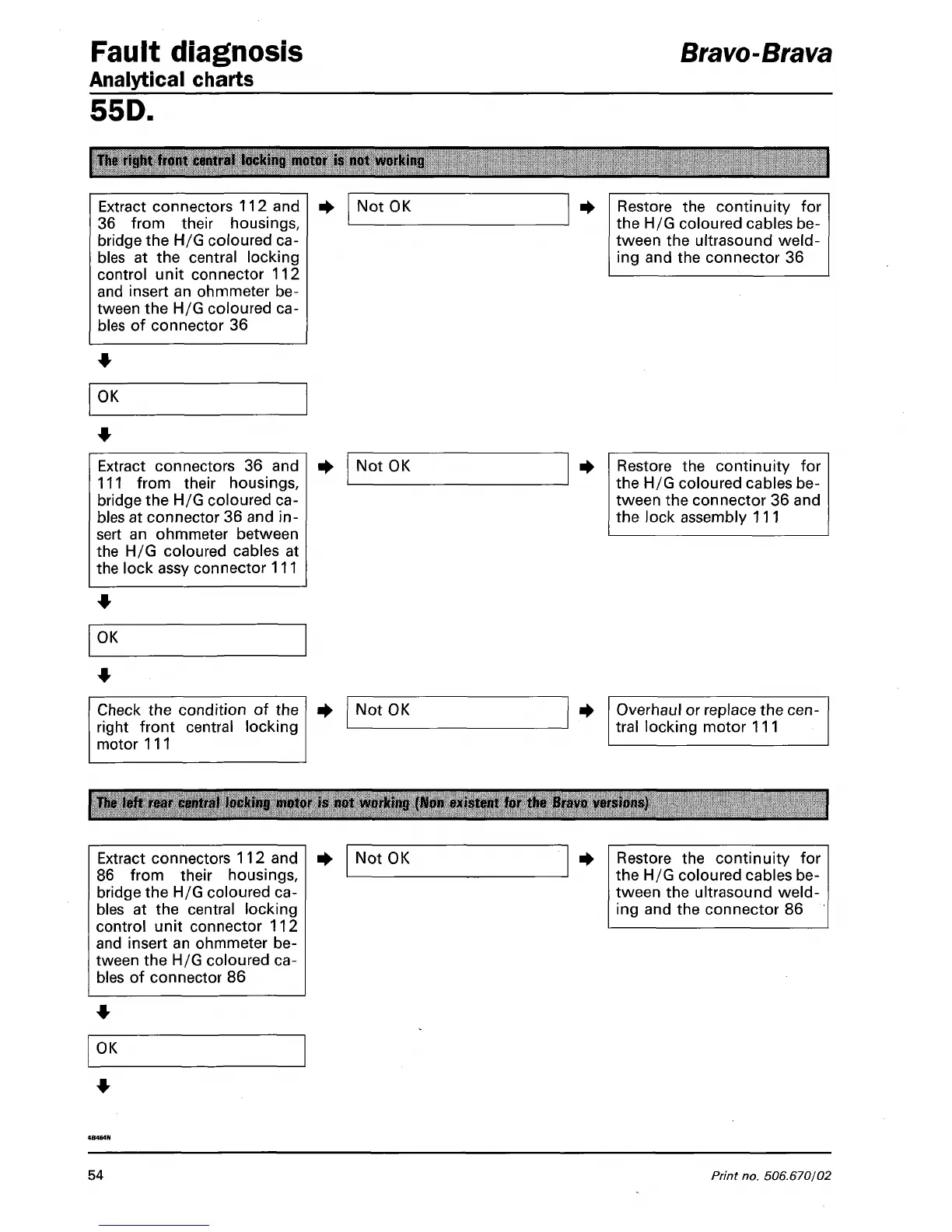

Fault diagnosis
Analytical charts
Bravo-Brava
55D.
The right front central locking motor is not working
Extract connectors 112 and
36 from their housings,
bridge the H/G coloured ca-
bles at the central locking
control unit connector 112
and insert an ohmmeter be-
tween the H/G coloured ca-
bles of connector 36
Not OK
Restore the continuity for
the H/G coloured cables be-
tween the ultrasound
weld-
ing and the connector 36
OK
Extract connectors 36 and
111 from their housings,
bridge the H/G coloured ca-
bles at connector 36 and in-
sert an ohmmeter between
the H/G coloured cables at
the lock assy connector 111
Not OK Restore the continuity for
the H/G coloured cables be-
tween the connector 36 and
the lock assembly 111
OK
Check the condition of the
right front central locking
motor 111
Not OK
Overhaul or replace the
cen-
tral locking motor 111
The left rear central locking motor is not working (Non existent for the Bravo versions)
Extract connectors 112 and
86 from their housings,
bridge the H/G coloured ca-
bles at the central locking
control unit connector 112
and insert an ohmmeter be-
tween the H/G coloured ca-
bles of connector 86
Not OK Restore the continuity for
the H/G coloured cables be-
tween the ultrasound
weld-
ing and the connector 86
OK
54
Print no. 506.670/02
