11-2-2. Synchronizer

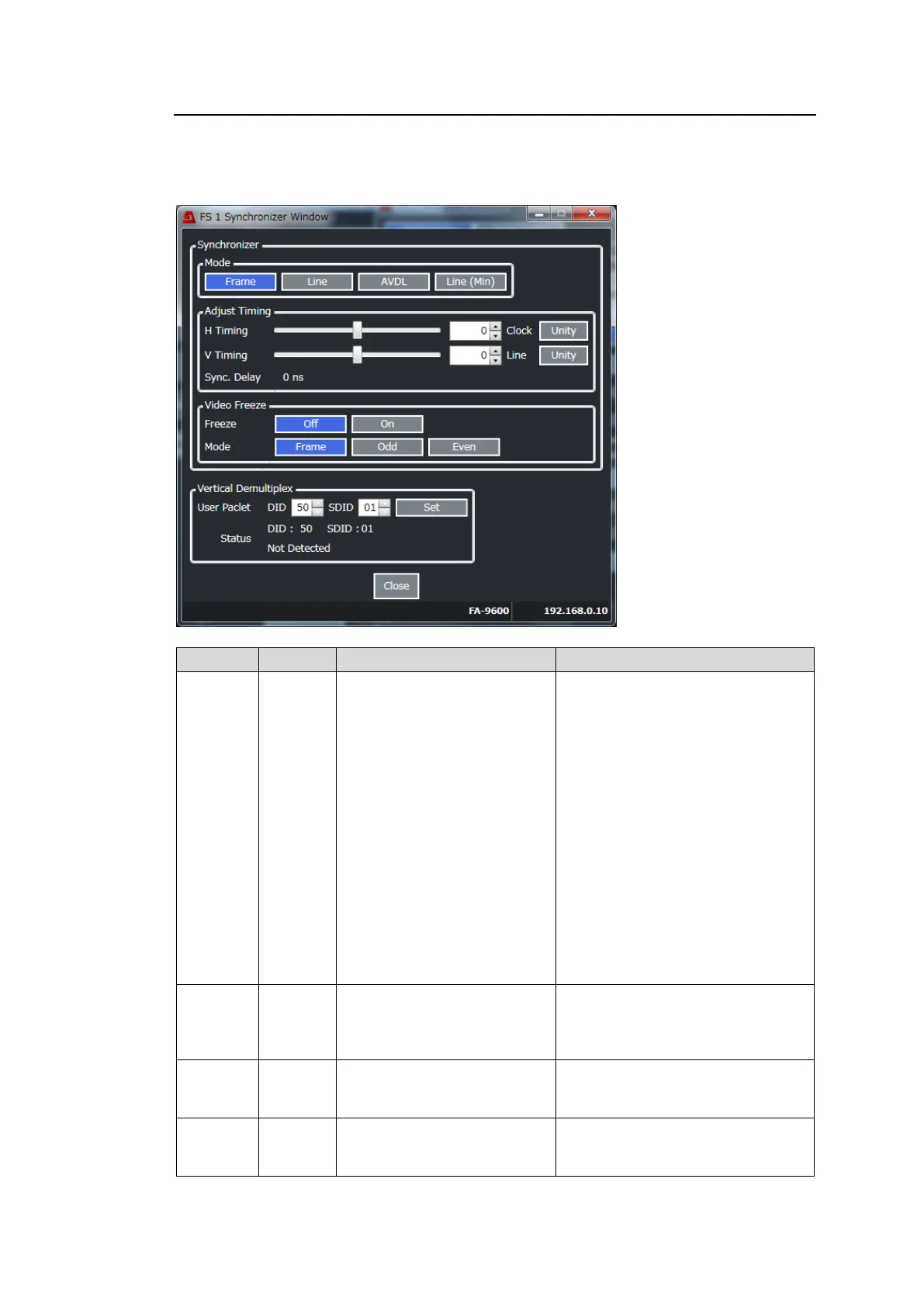

Click Synchronizer, Timecode1 or Synchronizer, Timecode2 in the Video Block to display
the window below. See Sec. 5-40. “SYNCHRONIZER” for details on adjusting signal timing.
See Sec. 5-36. “ANC USER PACKET” for details on user packets.
Item
Default
Setting
Description
Mode
Frame
Frame
Line
AVDL
Line(Min)
Selects the reference mode.
If the genlock and video signals are
not synchronous, set to Frame. The
adjustable range can be offset from
the standard position (H:0, V:0)
using the Timing setting. See Sec.
5-40. "SYNCHRONIZER." for the
details.
Frame: Adjusts input video timing
using frame memory.
Line: Adjusts input video timing
using 1H (line) memory.
AVDL: Adjusts input video timing
using both frame memory and 1H
memory.
Line (Min): Adjusts input video
timing using 1H (line) memory.
(Adjust
Timing)
H Timing
0 Clock
-2750 to 2750(1080/Level B)
-1375 to 1375(1080)
-2063 to 2063(720)
-864 to 864(SD)
Sets the horizontal offset.
(Adjust
Timing)
V Timing
0 Line
-563 to 563(1080)
-375 to 375(720)
-313 to 313(SD)
Sets the vertical offset.
(Video
Freeze)
Freeze
Disable
Off
On
Turns freeze On/Off when Mode
(see above) is set to Frame.
