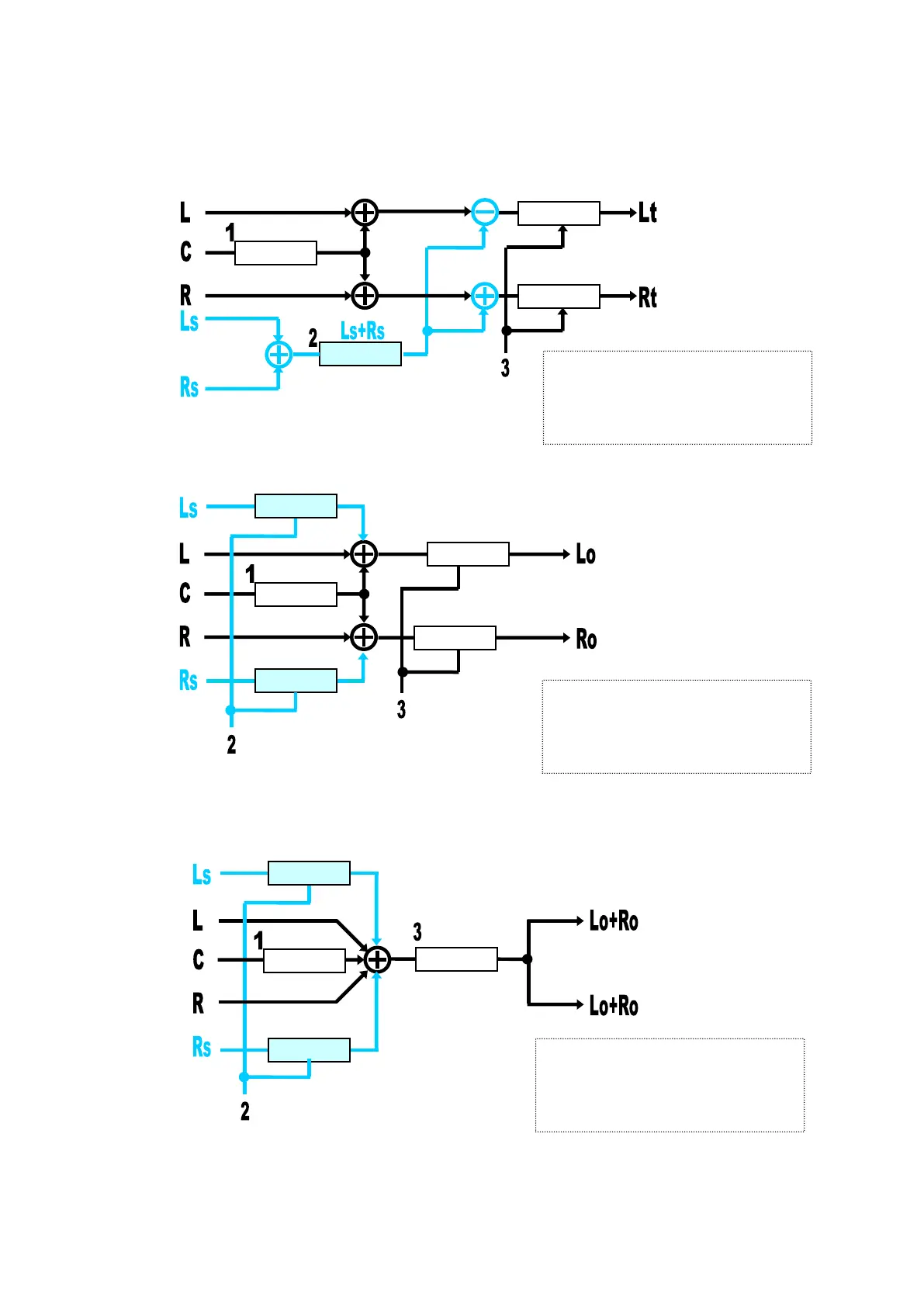

â—† Down Mix Block Diagram
<Surround Mix (Lt/Rt)>
Ls/Rs surround channels are summed to produce a mono surround channel and mixed to right and
left channels by the 180 degree phase difference. (LFE channel is discarded.)
<Stereo Mix (Lo/Ro)>
For Stereo Monitors
<Monaural Mix (Lo+Ro/Lo+Ro)>
For Monaural Monitors
1: CENTER MIX level setting
2: SURROUND MIX level setting
3: MASTER LVL setting
* LFE channel is not subjected to the mix.
1: CENTER MIX level setting
2: SURROUND MIX level setting
3: MASTER LVL setting
* LFE channel is not subjected to the mix.
1: CENTER MIX level setting
2: SURROUND MIX level setting
3: MASTER LVL setting
* LFE channel is not subjected to the mix.
To Next Page
