20
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
OIL FILTER AND MOUNT
REMOVAL-REFITTING
Removal

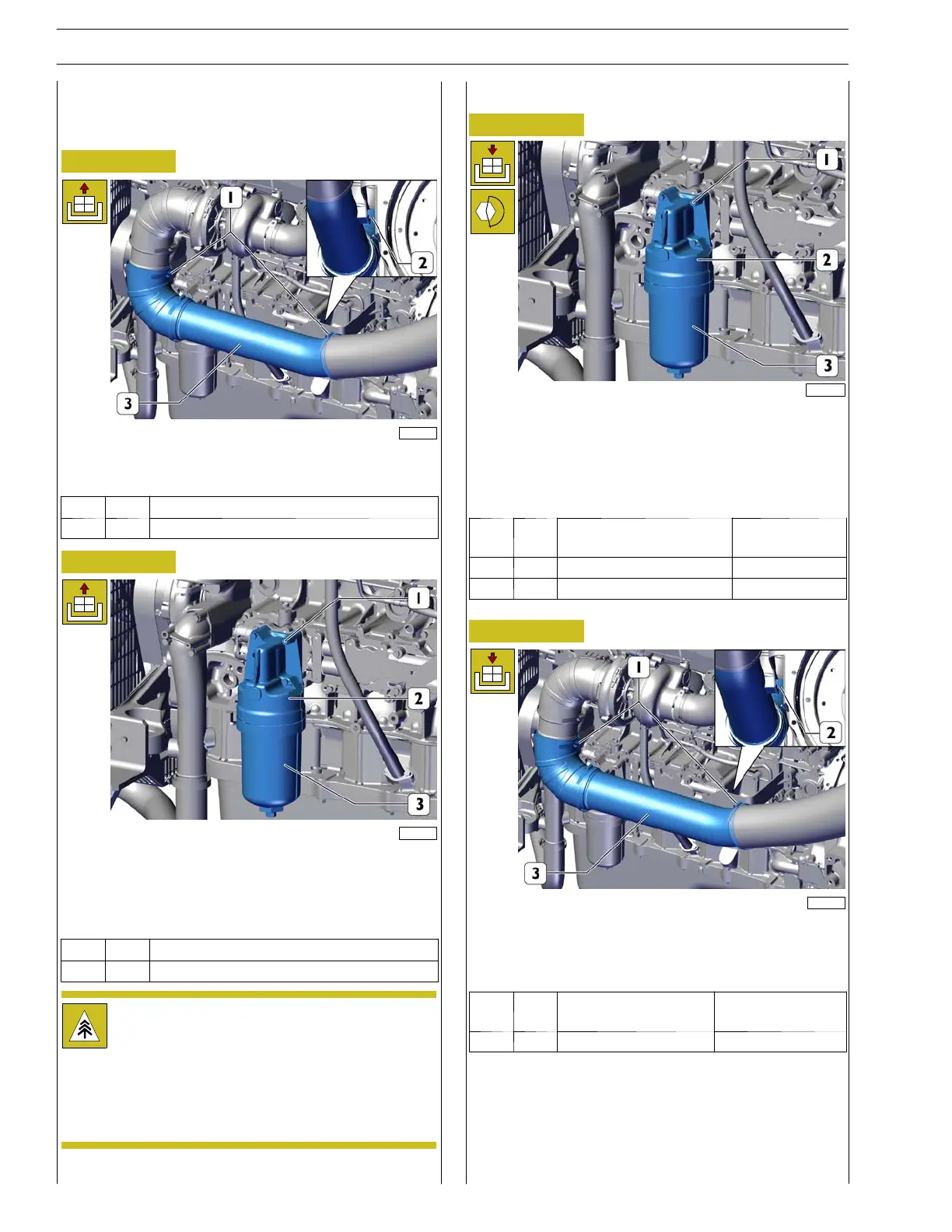

Figure 53
227763
Slacken the clamps (1), undo the screws (2) and remove the
fuel combustion air intake pipe (3) to the turbocharger.
Ref.
No. Description
(2) 2 M8x1.25 screws
Figure 54
227786
Using a su itable tool, unscrew the oil filter body (3) and
remove the filter element.
Unscrew the screws (1) and remove the engine oil filter (2)
and gasket.
Ref.
No. Description
(1) 4 Screws M8 X 1.25 X 65
The oil filter contains approximately 2 kg of engine
oil inside.
Position a suitable container to collect the oil.
Avoid skin contact with the engine oil: in c ase of
contact, wash thoroughly with water.
The engine oil is highly pollutan t : it must be disposed
of acc o rding to applicable laws.
Refitting
Figure 55
227786
Fit the engine oil filter mount (2) together with the new
gasket and tighten the screws (1) to the torque indicated in
the table.
Fit the filter element of the oil filter (3) onto its support (2)
and tighten it to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 4 Screws M8 X 1.25 X 65 24.5 ± 2.5 Nm
(3) 1 - 60 ± 5 Nm
Figure 56
227763
Refit the combustion air intake pipe to t he turboc harger pipe
(3) into its seat, tighten the clamps (1) and the screws (2) that
fasten to the bracket to the torque in the table.
Ref.
No. Description
Tightening
torques
(2) 2 M8 x 1.25 screws -
