FPT CURSOR Series User Manual

78
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Ref. No. Description
Tightening
torques
(8) 4 Fittings M16 X 1.5 42.5±2Nm
Fix the fuel supply pipe support brackets, tightening the screws
to torque stated in the table.
Ref.
No. Description
Tightening
torques
(12) 2 Screws M8 X 1.25 X 16 24.5 ± 2.5 Nm
Connect the fuel return pipe (7) from the rail and tighten to
torque stated in the table.
Ref.
No. Description
Tightening
torques
(7) 2 Fittings M16 X 1.5 42.5±2Nm
Fitting rocker shaft assembly
NOTE Use torque wrench 99389833 to tighten fittings
of the HP fuel pipes.

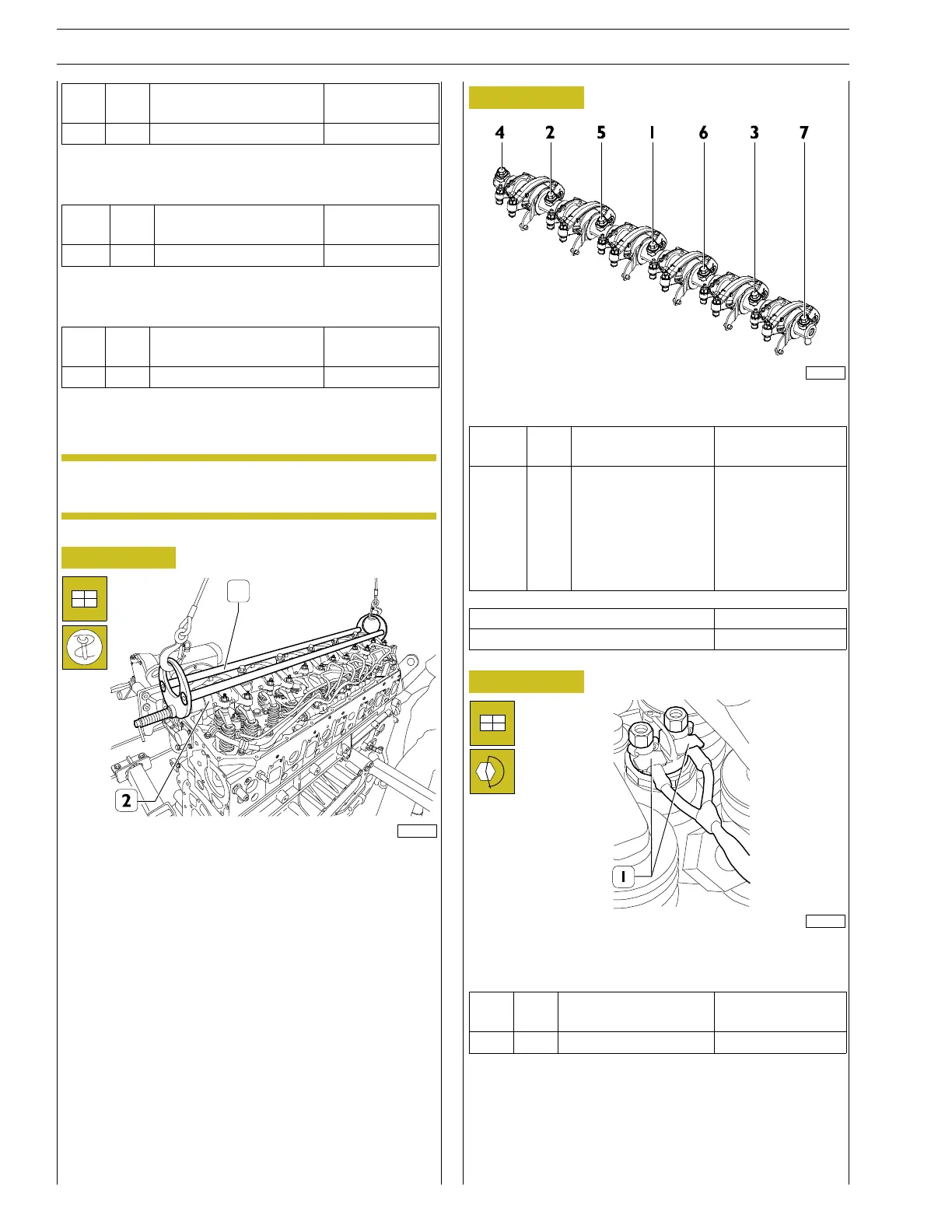

Figure 189
1
225035
Apply the tool 99360553 (1) to the rocker arm shaft (2) and
fittheshaftonthecylinderhead.
Figure 190
227746
Screw the screws in four steps as follows:
Ref.
No. Description
Tightening
torques
(1 - 7) 7
Screws
(M16X1.5X76)
Step 1 25 Nm
Step 2 60 Nm
Step 3 80 Nm
Step 4 60˚
Tightening sequence
Step 1 - 4 1-7
Figure 191
183457
Connect the electrical connections (1) to the injectors and
block the cables using cable clamps.
Ref.
No. Description
Tightening
torques
(1) 12 Cable clamps 1.5 ± 0.25 Nm
