SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
27
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

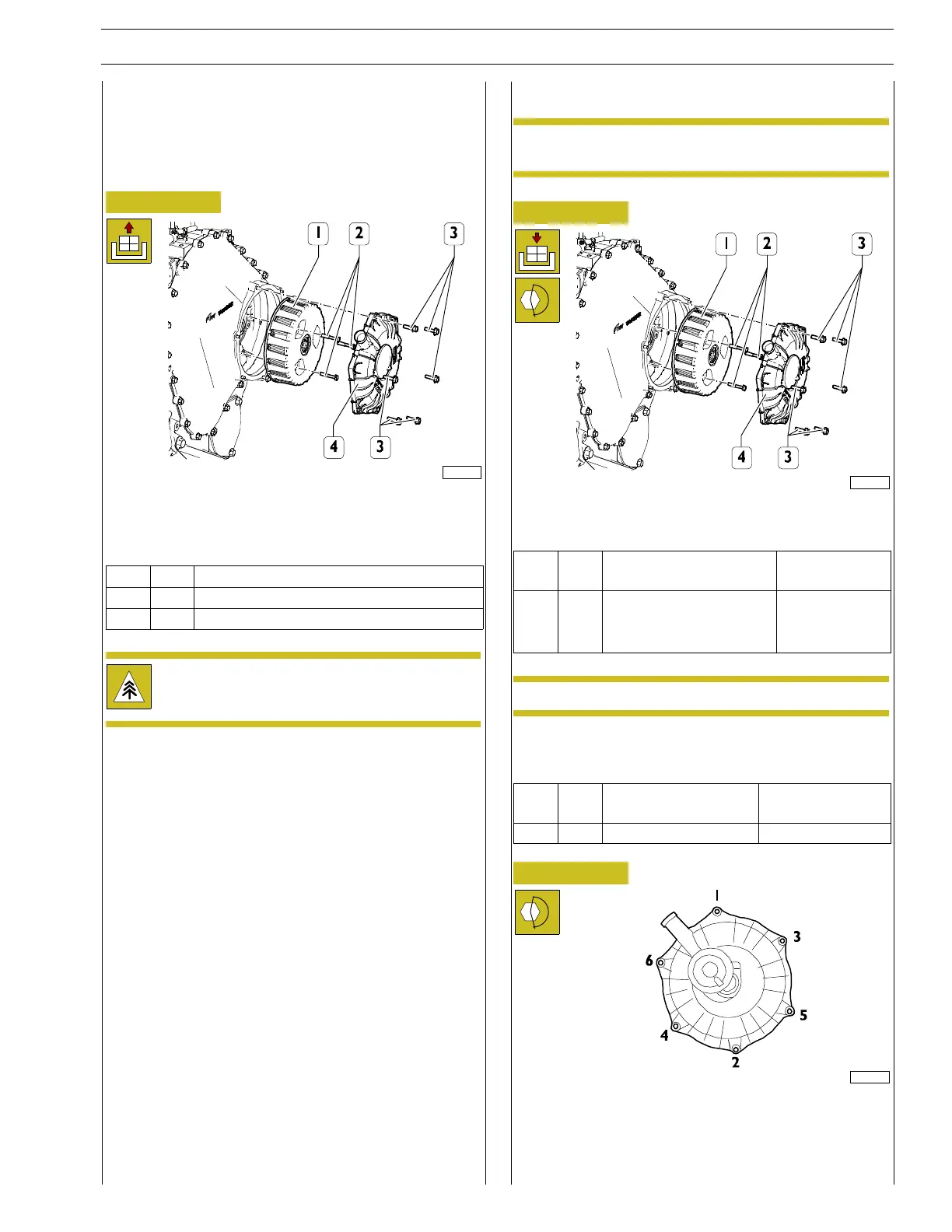

BLOW-BY REMOVAL-REFITTING
Remove the air filter as described in the procedure ”AIR
FILTER REMOVAL - REFITTING”.
Removal
Figure 73
221043
Unscrew the screws (3) and remove the blow-by cover (4).
Unscrew the screws (2) and remove the blow-by filter
element (1)
Ref.
No. Description
(2) 3 ScrewsM6X1X40
(3) 6 ScrewsM6X1X25
Dispose of consumable materials and the parts in
contact with them (for example filters) in accordance
with the law.
Refitting
NOTE Carefully clean the seating of the filter and the
cover.
Figure 74
221043
Fit the new blow-by filtering element (1) into its seat and
tighten the screws (2) to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(2) 3
ScrewsM6X1X40
Step 1 5Nm
Step 2 15 ± 1.5 Nm
NOTE Apply Loctite 243 to the screws (2).
Position the blow-by cover (4) and tighten the screws (3) to
the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(3) 6 ScrewsM6X1X25 7±1Nm
Figure 75
221126
Tighten the fastening screws following the sequence indicated
in the figure.
Refit the air filter as described in the procedure “AIR FILTER
REMOVAL - REFITTING”.
