Description
The turbocharging system is composed of: an air filter, a tur-
bocharger and an interc ooler.
The air cleaner is a dry type composed of a filtering cartridge
that is periodically changeable.
The function of the turbocharger is to use the energy of the
engine’s exhaus t gas to deliver pressurized air to the cylin ders.
The intercooler is c omposed of a radiator applied on the
engine coolant radiator, and it is used for lowering th e tempe-
rature of the air coming out from the turbocharger to send
it to the c y lin ders.

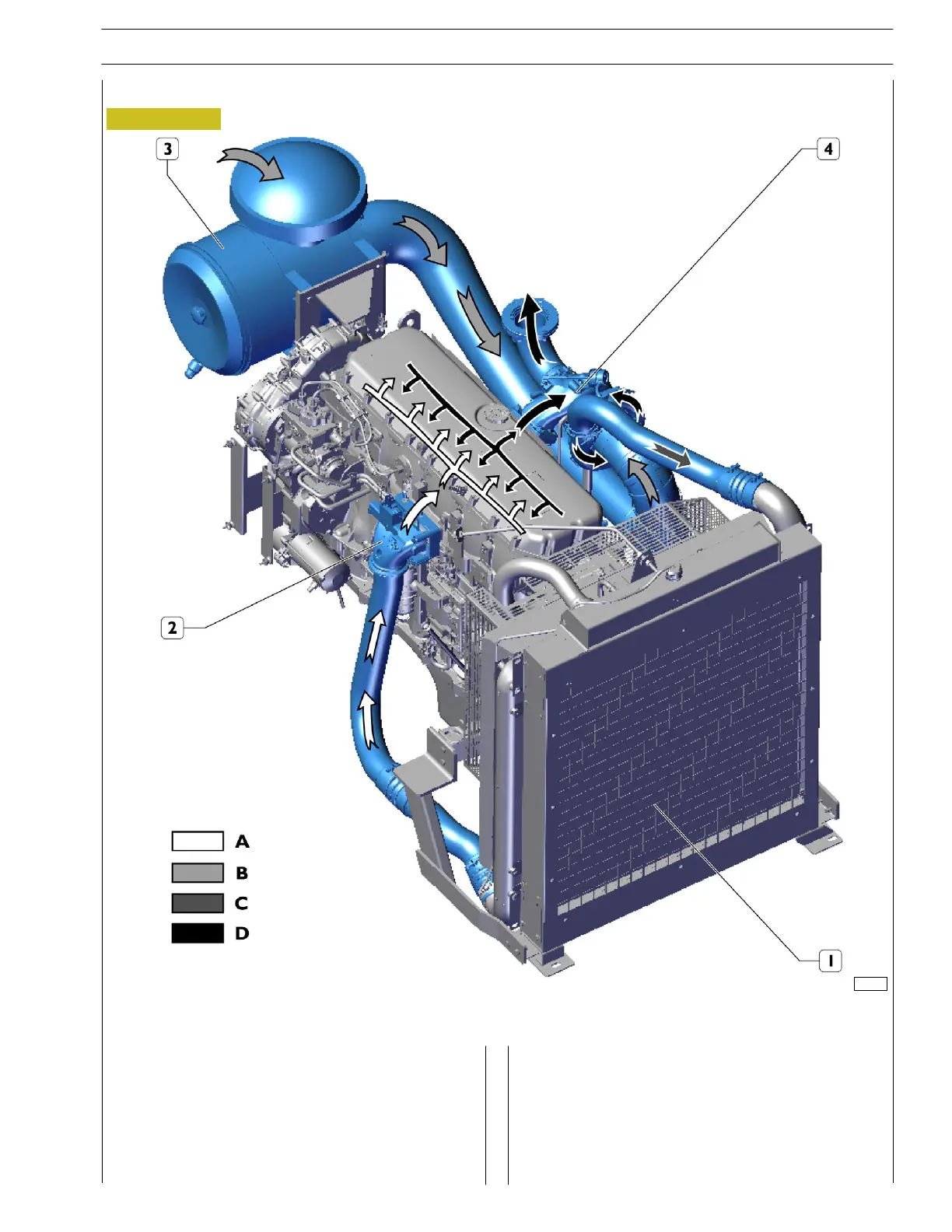

Figure 25
227830
TURBOCHARGING DIAGRAM
A. Cold compressed air - B. Intake air - C. Compressed air (hot) - D. Exhaust gas
1. Clean the heat exchanger with afterc ooler (radiator) - 2. Intake manifold - 3. Air filter - 4. tu rbocharger
TURBOCHARGING
SECTION 2 - OPERATING DIAGRAMS
19
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
