6
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Refitting

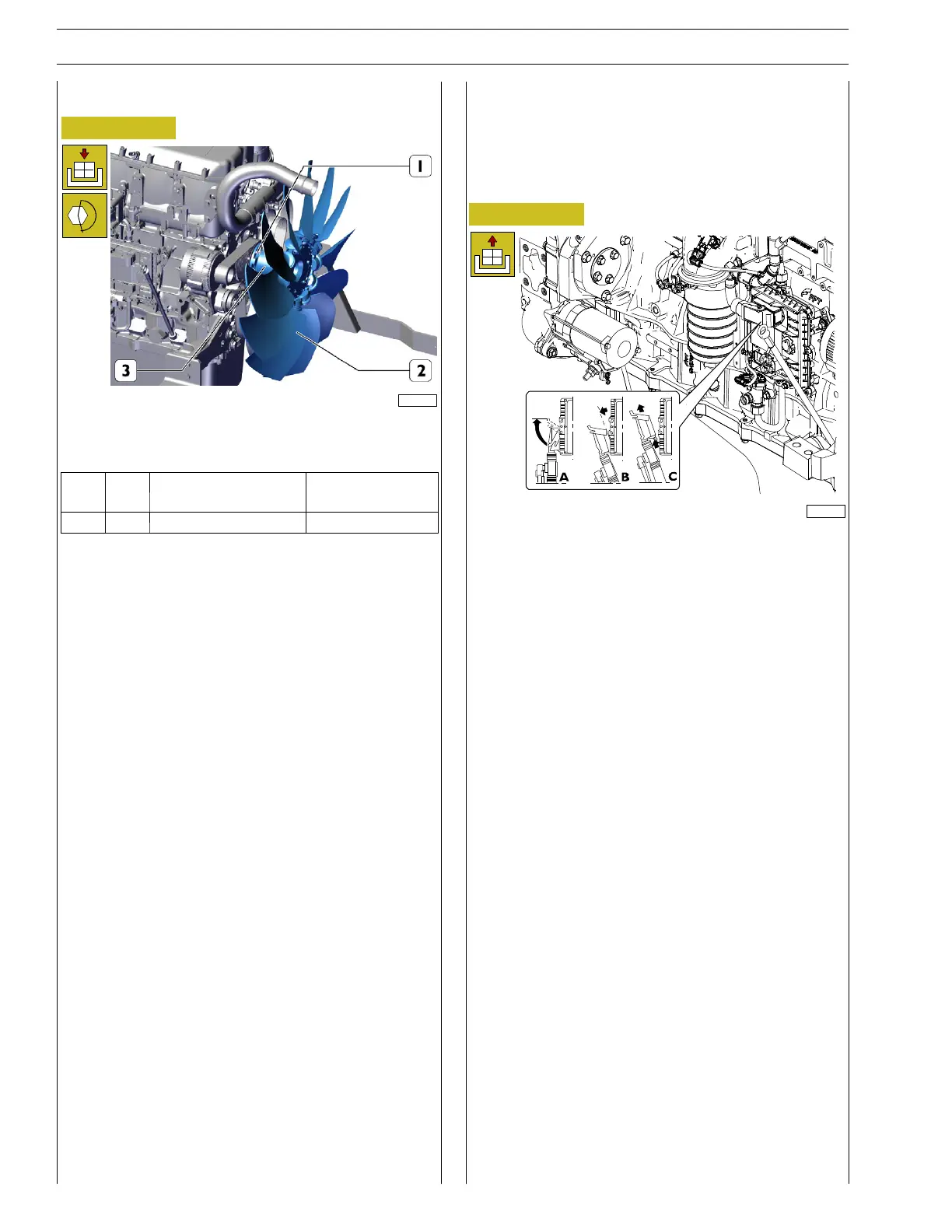

Figure 8
227755
Fit the fan (2) together with the spacer (3) onto the pulley
and tighten the screws (1) to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1) 6 M8x1.25 screws 21.5 ± 4.5 Nm
Refit the radiator assembly as described in the procedure
”RADIATOR ASSEMBLY REMOVAL - REFITTING”.
Refit the protection grilles as described in the procedure
”PROTECTION GRILL REMOVAL - REFITTING”.
REMOVAL-REFITTING OF THE MAIN
ENGINE COMPONENTS
ENGINE CABLE REMOVAL-REFITTING
Removal
Figure 9
225041
Free the clips fixing the engine cable.
Disconnect the electrical connections of the sensors.
Lift the safety lever (A).
Move the connector, disconnecting it from the control unit
(B).
Lift the connector, releasing the pawl (C).
Removetheenginecable.
Refitting
Make al the electrical connections and secure the engine
cable with clamps to the clips.
