6
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Removal of components hindering bracket
assembly
Engine cable removal
Protect the electrical parts before washing wish pressurised
water spray. Before securing the engine onto the rotating stand
99322230, remove the engine cable disconnecting it from the
control unit and from all sensors/senders to which it is
connected.
Removal of the turbocharger oil supply and return pipe
oil pressure and temperature sensor and oil pressure
regulator valve

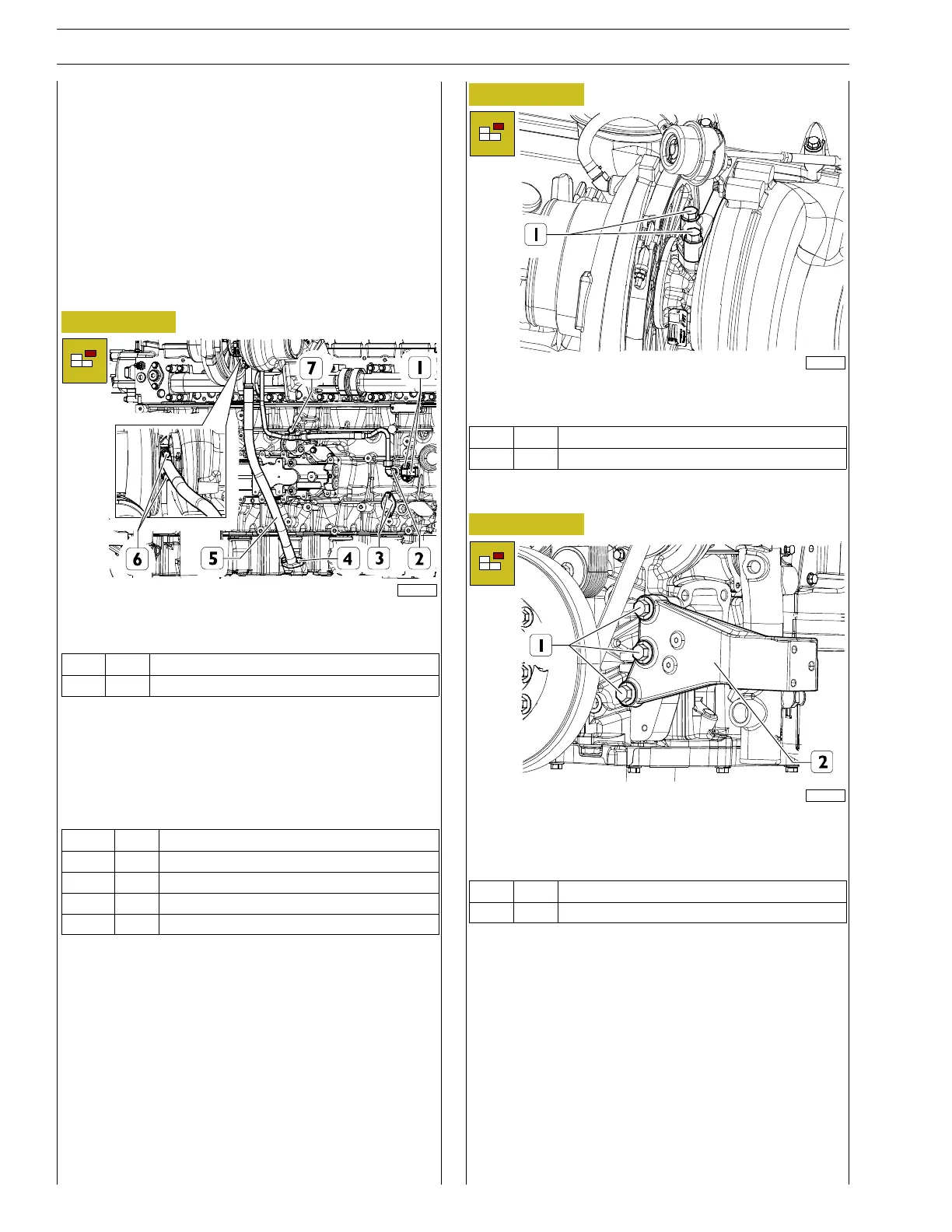

Figure 4
224054
Unscrew the screws (1) and remove the oil pressure and
temperature sensor together with the O-ring.
Ref.
No. Description
(1) 2 Screws M6
Unscrew the screws (3) and remove the oil pressure regulator
valve.
Unscrew the screws (4) and (6) and remove the turbocharger
oil outlet pipe and its gasket.
Unscrew the fitting (2) and screw (7) that secures the oil supply
pipe of the turbocharger to the crankcase.
Ref.
No. Description
(4)(6) 4 M8 x 1.25 screws
(3) 2 Screws M6
(2) 1 Fitting M16 X 1.5 X 12
(7) 1 M10 screw
Figure 5
224055
Unscrew the screws (1) and remove the oil supply pipe to the
turbocompressor and its gasket.
Ref.
No. Description
(1) 2 M8 x 1.25 screws
Removing engine front suspensions.
Figure 6
224056
Unscrew the screws (1) and engine front suspension on the
left (2).
Proceed likewise to remove the suspenion on the right.
Ref.
No. Description
(1) 3 M16 x 2 screws
