SECTION 6 - GENERAL MECHANICAL OVERHAUL
11
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

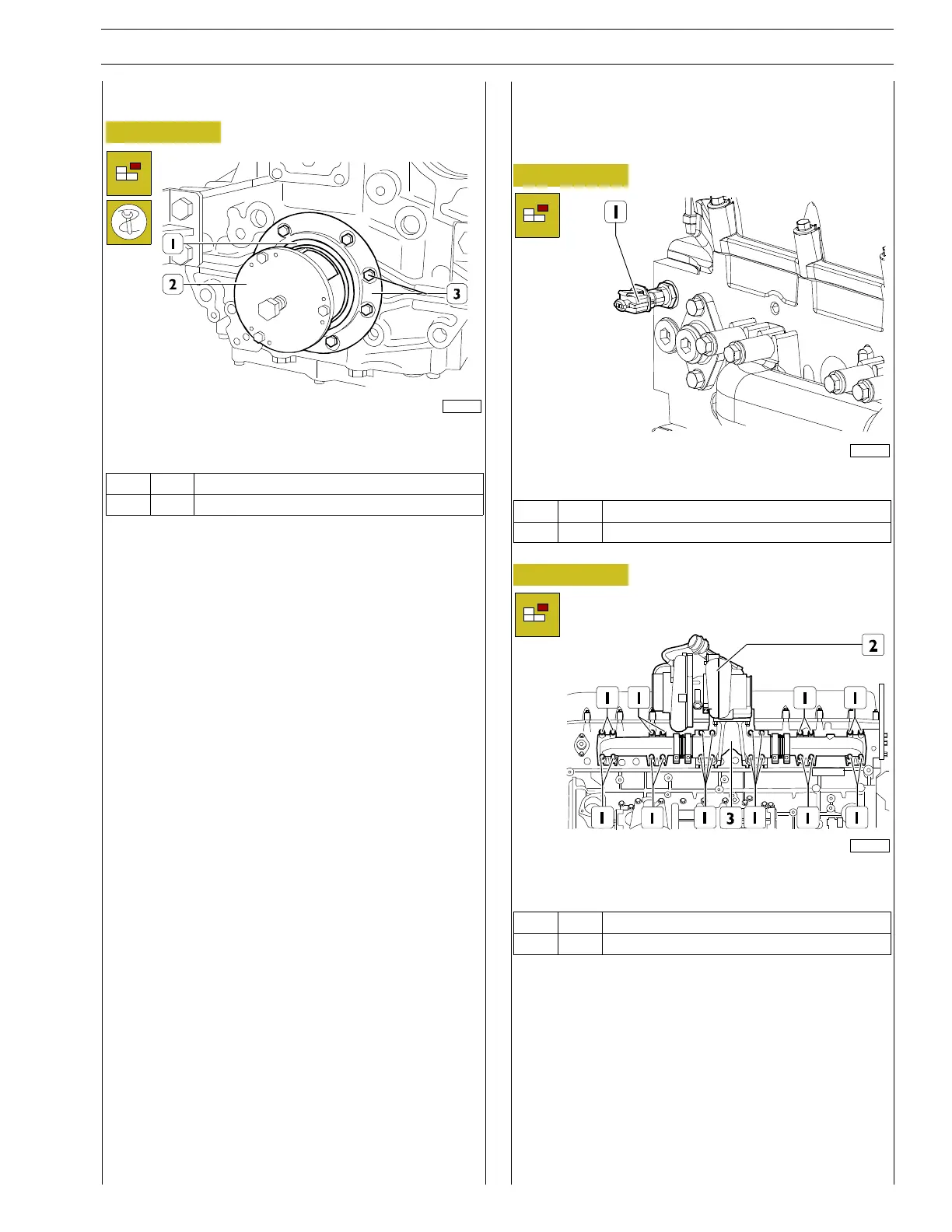

Crankshaft front gasket removal
Figure 19
224068
Fit puller 99340053 (2) and take off the crankshaft seal (1). Ex-
tract the flange (3).
Ref.
No. Description
(3) 8 Screws M8 X 1.25 X 16
DISASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT EXHAUST SIDE)
Turbocharger and exhaust manifold removal
Figure 20
225021
Unscrew and remove the coolant temperature sensor (1).
Ref.
No. Description
(1) 1 M12 X 1.5
Figure 21
221090
Unscrew the fastening screws (1) and remove the exhaust
manifold (3) together with the turbocharger (2) and gaskets.
Ref.
No. Description
(1) 24 Screws M10 X 1.5 X 70
