FPT CURSOR Series User Manual

SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
7
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
REMOVAL-REFITTING OF ANCILLARY
BELT
Removal
Remove the protection grilles as described in the procedure
”PROTECTION GRILL REMOVAL - REFITTING”.
Remove the radiator assembly as described in the procedure
”RADIATOR ASSEMBLY REMOVAL - REFITTING”.
Remove the fan as described in the procedure ”FAN
REMOVAL - REFITTING”.

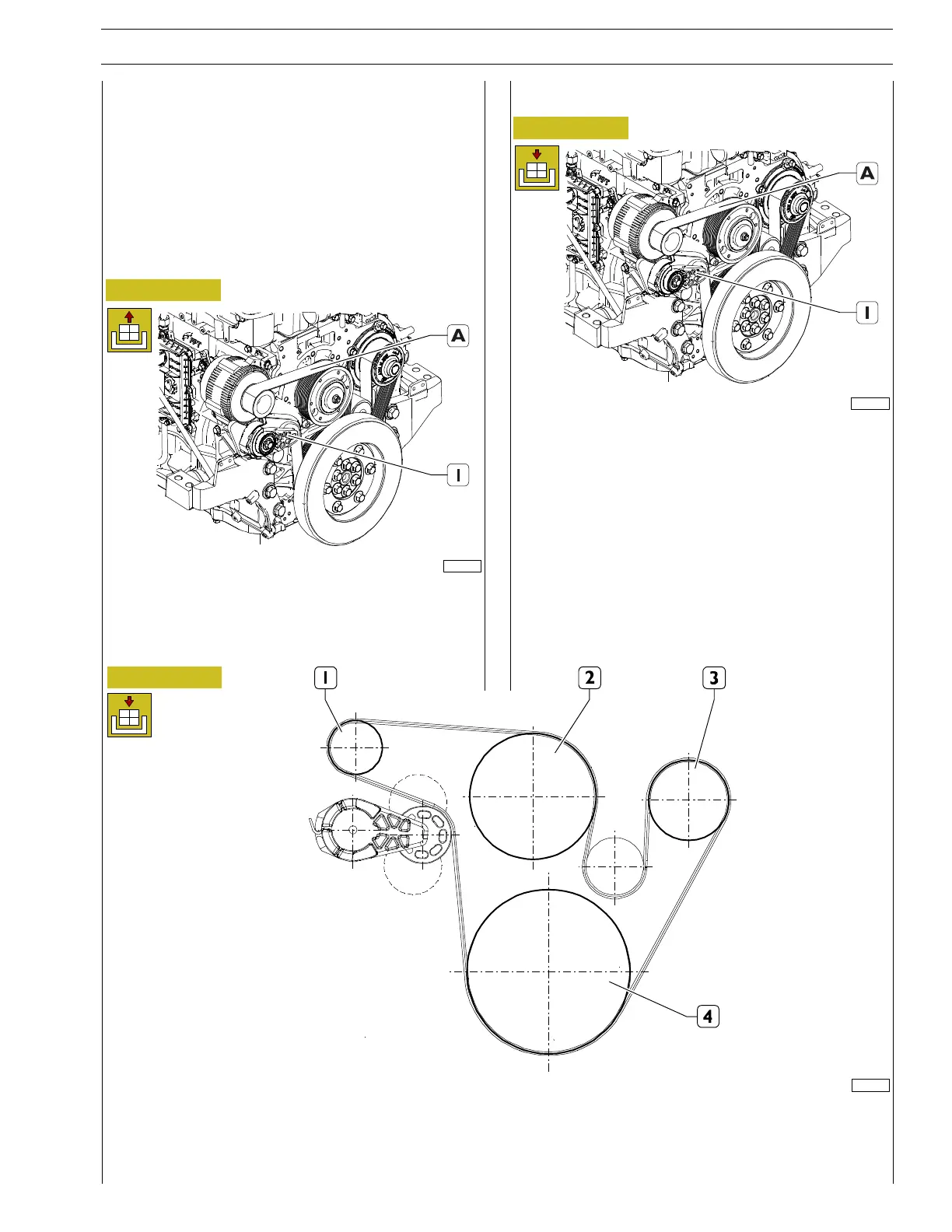

Figure 10
225040
Using a 1/2 inch square wrench, operate on the belt tensioner
(1) and remove the control belt of the crankshaft /
electromagnetic coupling / water pump / alternator (A)
pulley.
Refitting
Figure 11
225040
Using a 1/2 inch square wrench, operate on the belt tensioner
(1) and position the control belt of the crankshaft /
electromagnetic coupling / water pump / alternator (A)
pulley.
Refit the fan as described in the procedure ”FAN REMOVAL
- REFITTING”.
Refit the radiator assembly as described in the procedure
”RADIATOR ASSEMBLY REMOVAL - REFITTING”.
Refit the protection grilles as described in the procedure
”PROTECTION GRILL REMOVAL - REFITTING”.
Figure 12
150675
ASSEMBLY DIAGRAM OF THE PULLEY - WATER PUMP - ALTERNATOR DRIVE BELT
1. Alternator - 2. Electromagnetic coupling - 3. Water pump - 4. Crankshaft

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
