26
SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
AIR FILTER REMOVAL - REFITTING
Removal

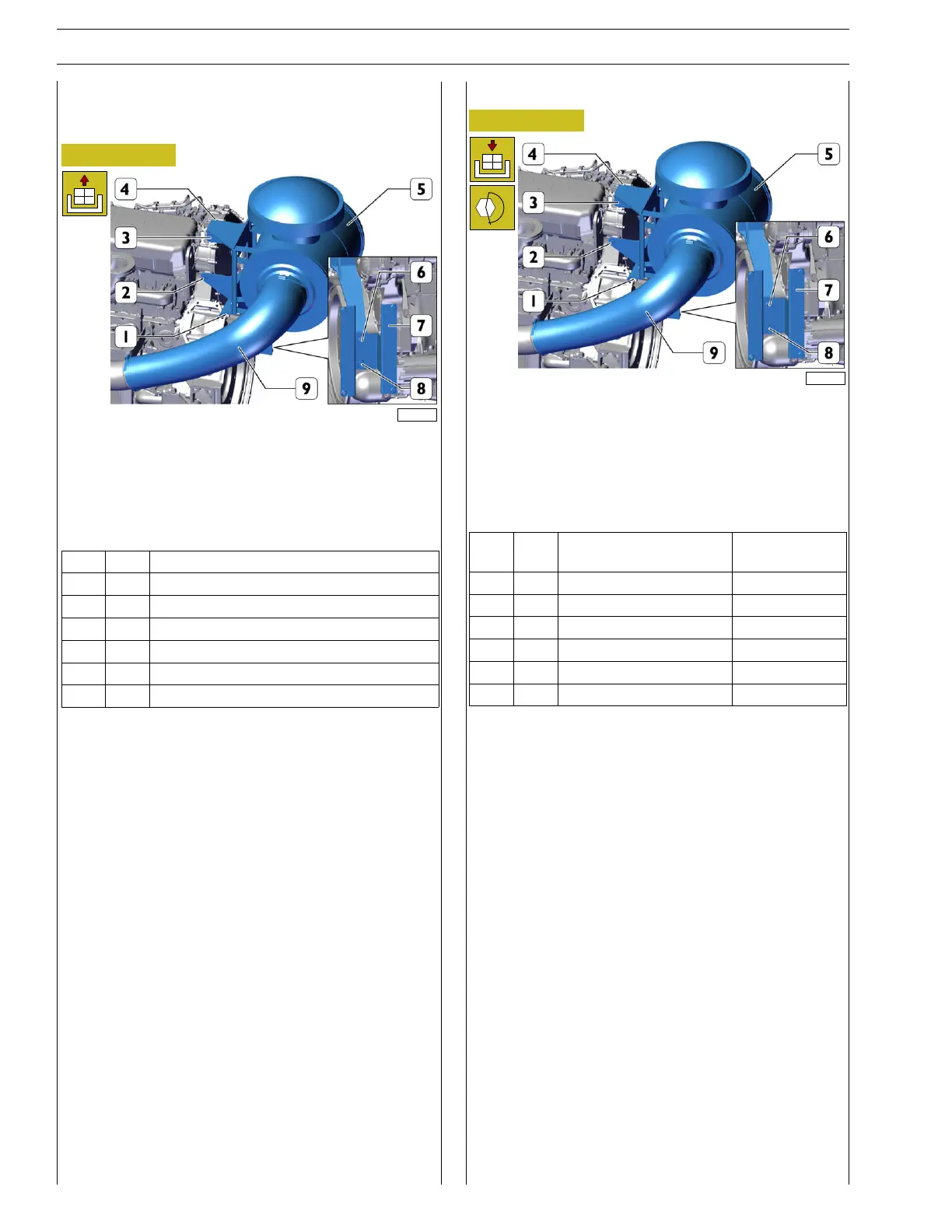

Figure 71
227768
Disconnect and remove the combustion air intake pipe (9) to
the turbocharger acting on the clamps.
Remove the air filter (5) by unscrewing the screws (1, 2, 3, 4,
6) and remove it from its seat together with the support.
Unscrew the screw (8) and remove the bracket (7).
Ref.
No. Description
(1) 1 M10 screw
(2) 1 M8 screw
(3) 1 M6 screw
(4) 1 M10 screw
(6) 1 M18 screw
(8) 1 M18 screw
Refitting
Figure 72
227768
Mount the bracket (7) and tighten the screws (8) to the torque
in the table.
Mount the air filter (5) along with the support and tighten
screws (1, 2, 3, 4, 6) to table torque.
Connect the combustion air intake pipe (9) to the
turbocharger by closing the clamps.
Ref.
No. Description
Tightening
torques
(1) 1 M10 screw 37.5 ± 7.5 Nm
(2) 1 M8 screw 18 ± 4 Nm
(3) 1 M6 screw 8±2Nm
(4) 1 M10 screw 37.5 ± 7.5 Nm
(6) 1 M18 screw 245 ± 50 Nm
(8) 1 M18 screw 245 ± 50 Nm
