SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
25
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
ENGINE CONTROL UNIT
REMOVAL-REFITTING
Removal
Disconnect the engine cable connector by disconnecting it
from the control unit as described in the relevant section.

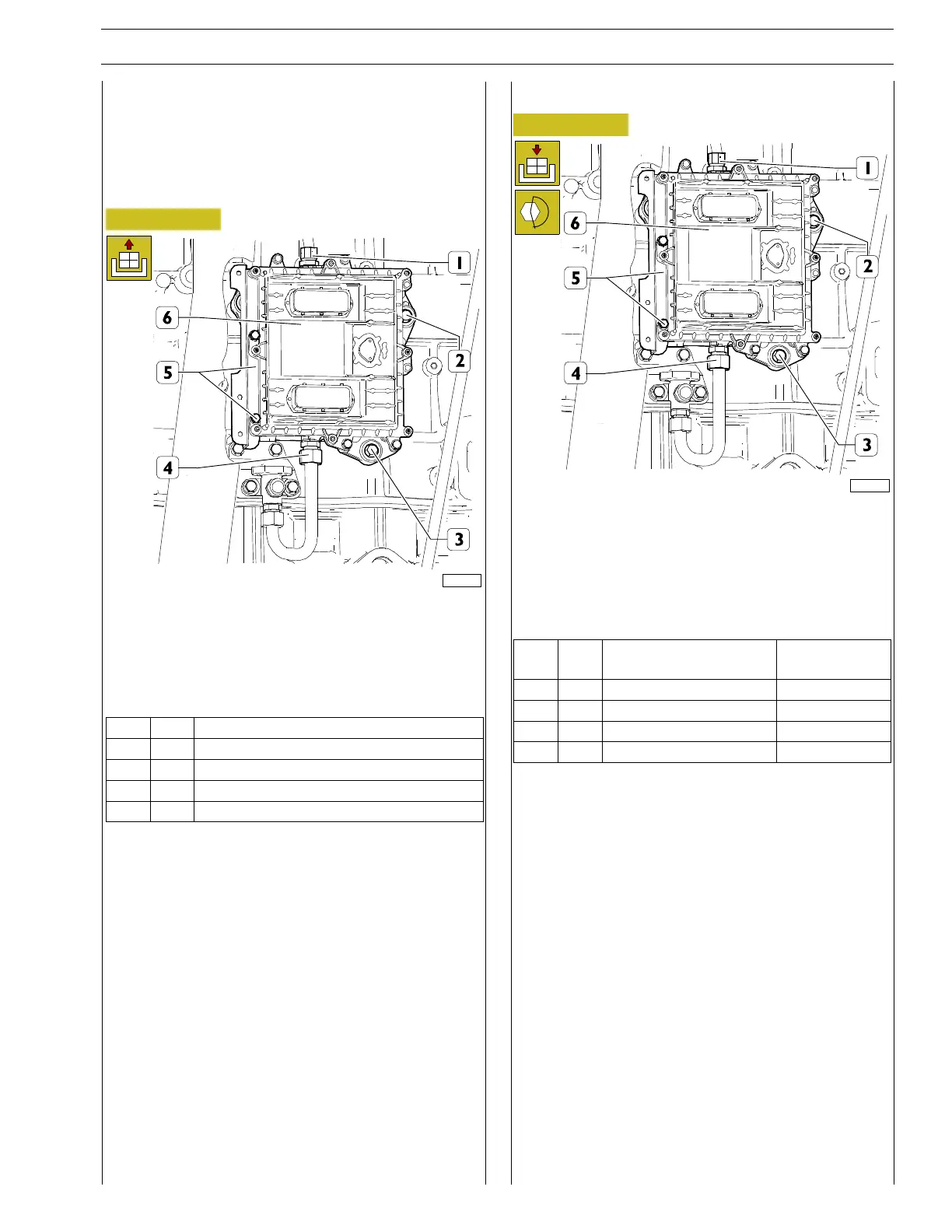

Figure 69
227767
Unscrew the screws and remove the bracket (5).
Unscrew couplings (1, 4) and disconnect the low pressure fuel
pipes from the control unit.
Unscrew the screws of the control unit mount (2, 3) and
remove the engine control unit (6) and its mount.
Ref.
No. Description
(1, 4) 2 Fittings M22 X 1.5
(2) 2 Screws M8 X 1.25 X 60
(3) 1 Screws M8 X 1.25 X 45
(5) 2 ScrewsM6X1X25
Refitting
Figure 70
227767
Fit the engine control unit (6) and tighten the screws of the
mount (2, 3) to the torque indicated in the table.
Fit the bracket and tighten screws (5) to the torque indicated
in the table.
Connect the low pressure fuel pipes and tighten the fittings (1
, 4) to the torque indicated in the table.
Ref.
No. Description
Tightening
torques
(1, 4) 2 Fittings M22 X 1.5 50 ± 5 Nm
(2) 2 Screws M8 X 1.25 X 60 24.5 ± 2.5 Nm
(3) 1 Screws M8 X 1.25 X 45 24.5 ± 2.5 Nm
(5) 2 ScrewsM6X1X25 8±2Nm
Connect the engine cable connector by connecting it to the
control unit as described in the relevant section.
