SECTION 5 - REMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
21
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
HEAT EXCHANGER REMOVAL-REFITTING
Removal

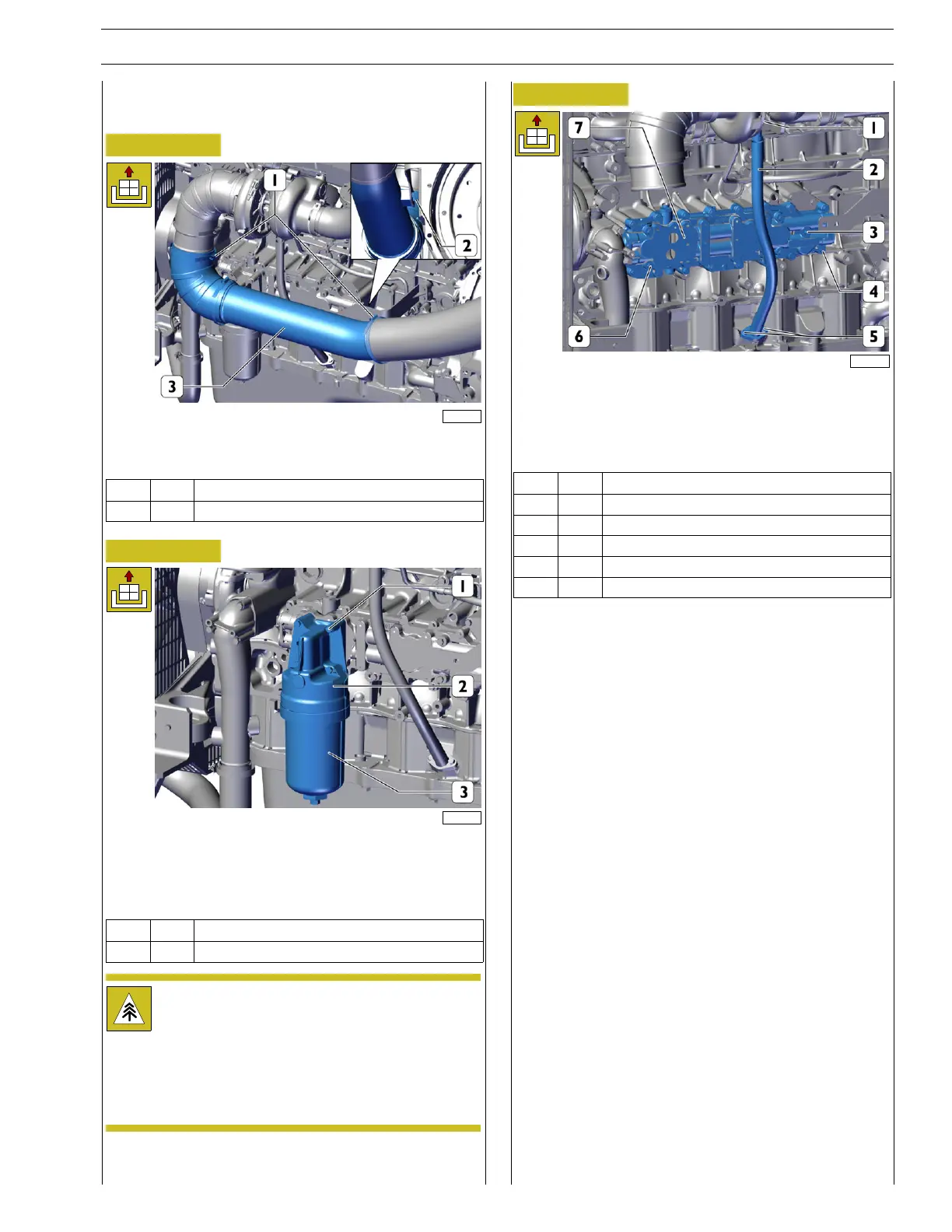

Figure 57
227763
Slacken the clamps (1), undo the screws (2) and remove the
fuel combustion air intake pipe (3) to the turbocharger.
Ref.
No. Description
(2) 2 M8x1.25 screws
Figure 58
227786
Using a suitable tool, unscrew the oil filter body (3) and
remove the filter element.
Unscrew the screws (1) and remove the engine oil filter (2)
and gasket.
Ref.
No. Description
(1) 4 Screws M8 X 1.25 X 65
The oil filter contains approximately 2 kg of engine
oil inside.
Position a suitable container to collect the oil.
Avoid skin contact with the engine oil: in case of
contact, wash thoroughly with water.
The engine oil is highly pollutant: it must be disposed
of according to applicable laws.
Figure 59
227764
Undo the screws (1, 5) and remove the oil return pipe from
the turbocharger (2) with its gaskets.
Unscrew the screws (3, 4, 6) and remove the complete heat
exchanger (7) and its gasket.
Ref.
No. Description
(1) 2 M8x1.25 screws
(5) 2 M8x1.25 screws
(3) 1 Screw M8x1.25x55
(4) 17 Screws M8x1.25x40
(6) 4 Screws M8x1.25x45
