FPT CURSOR Series - Installing the Oil Pump; Double Gear Assembly

70
SECTION 6 - GENERAL MECHANICAL OVERHAUL
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E

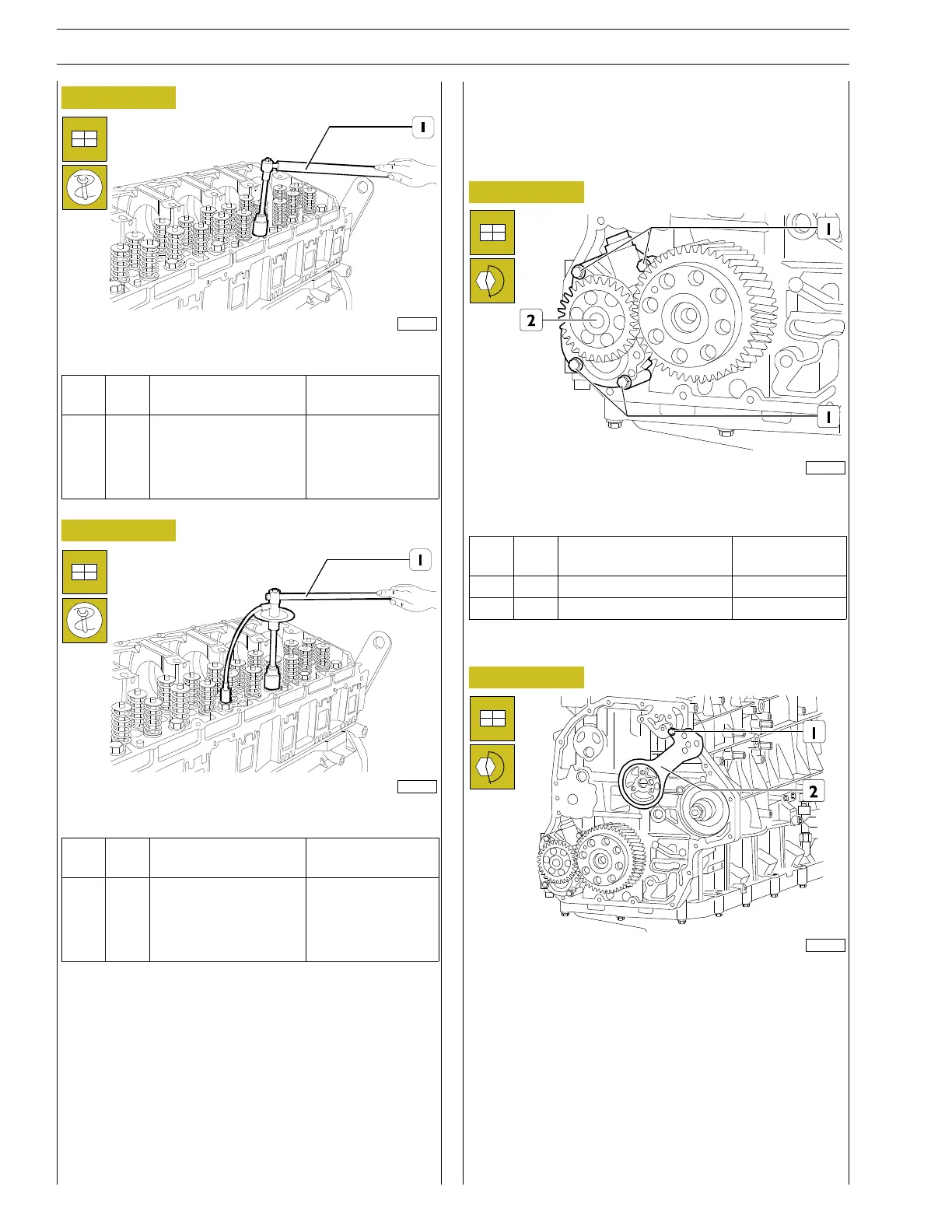

Figure 163
60565
Pre-tighten using the torque wrench (1):
Ref.
No. Description
Tightening
torques
(-)
20 M18x2x196
6
M18x2x175
Step 1 75 Nm
Step 2 150 Nm
Figure 164
60566
Use tool 99395216 (1) for angle tightening:
Ref.
No. Description
Tightening
torques
(-) 20 M18x2x196
(-) 6
M18x2x175
Step 1 90 ˚
Step 2 90 ˚
ASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT THE REAR
PART 1)
Installing the oil pump
Figure 165
221113
Fit the oil pump (2) and tighten the fastening screw (1) to
torque stated in the table.
Ref.
No. Description
Tightening
torques
(1) 1 Screws M8 X 1.25 X 35 25 ± 2.5 Nm
(1) 3 Screws M8 X 1.25 X 70 25 ± 2.5 Nm
Double gear assembly
Figure 166
221112
Fit the articulated rod (2) and screw in but do not tighten the
relative screw (1).
