SECTION 6 - GENERAL MECHANICAL OVERHAUL
65
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

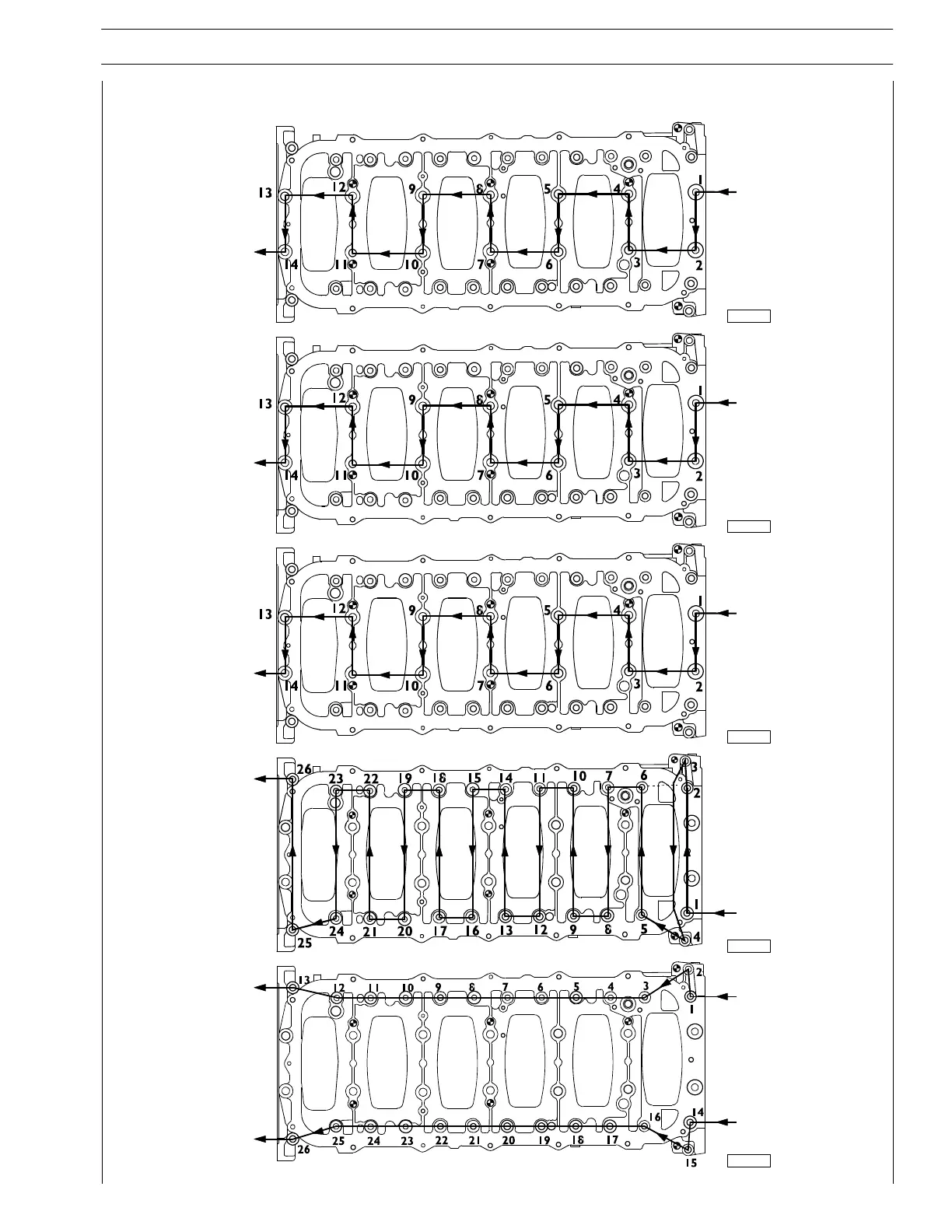

DIAGRAM OF TIGHTENING SEQUENCE O F LOWER CRANKCASE FIXING SCREWS
FRONT
SIDE
60593
First step:
inner screws
preliminary
tightening
160 Nm
FRONT
SIDE
60593
Second step:
internal bolt
angle tightening
60º
FRONT
SIDE
60593
Third step:
internal bolt
angle tightening
60º
FRONT
SIDE
60592
Fourth step:
outer screws
preliminary
tightening
30 Nm
FRONT
SIDE
60594
Fifth step:
external bolt
angle tightening
60º
