FPT CURSOR Series User Manual

6
SECTION 3 - ELECTRIC EQUIPMENT
CURSOR SERIES
Base - 03/2015 Print P4D32C006 E
Pin Signal
A01 Cylinder 1 injector
A02 Cylinder 6 injector
A03 Cylinder 5 injector
A04 -
A05 -
A06 Oil pressure and temperature sensor ground
A07 Air pressure temperature sensor su pply
A08 Fuel pre-filter clogged power supply (5V)
A09 -
A10 -
A11 Pressure on rail sensor power supply
A12 Fuel temperature sensor signal
A13 Oil pressure and temperature sensor temperature signal
A14 -
A15 -
A16 -
A17 -
A18 -
A19 Fuel pre-filter clogged sensor ground
A20 -
A21 -
A22 -
A23 -
A24 -
A25 Cylinder 4 injector
A26 Cylinder 6 injector
A27 Cylinder 5 injector
A28 -
A29 -
A30 -
A31 Oil pressure and temperature sensor power supply (5V)
A32 Crankshaft pressure sensor power supply
A33 -
A34 -
A35 Oil pressure and temperature sensor pressure signal
A36 Rail pressure sensor signal

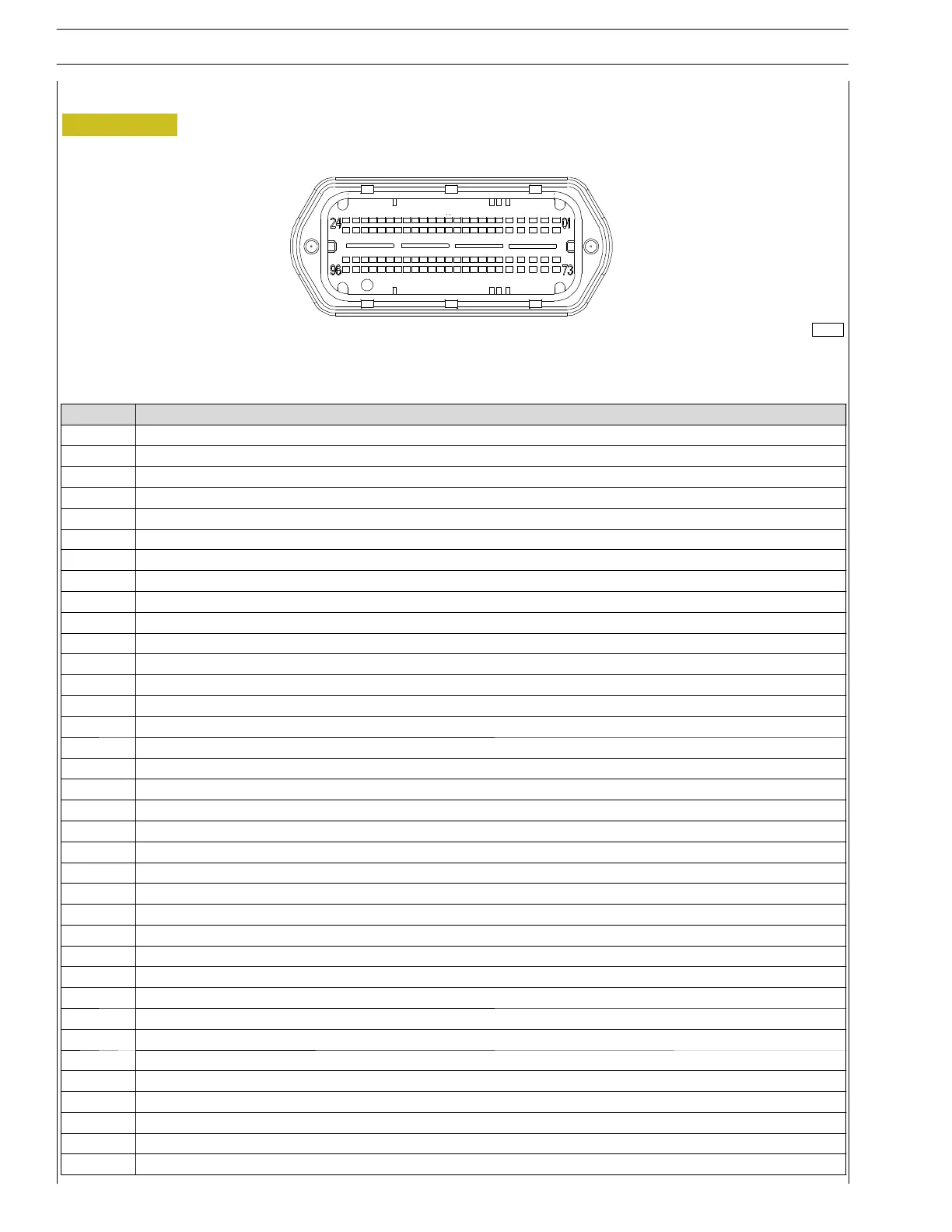

PIN OUT CONNECTOR 1A (96 PIN) - CONTROL UNIT EDC 17 HP 41
190542
Figure 4

FPT CURSOR Series Specifications

General

Engine Type	Diesel
Configuration	Inline
Aspiration	Turbocharged
Fuel System	Common Rail
Cooling System	Liquid Cooled
