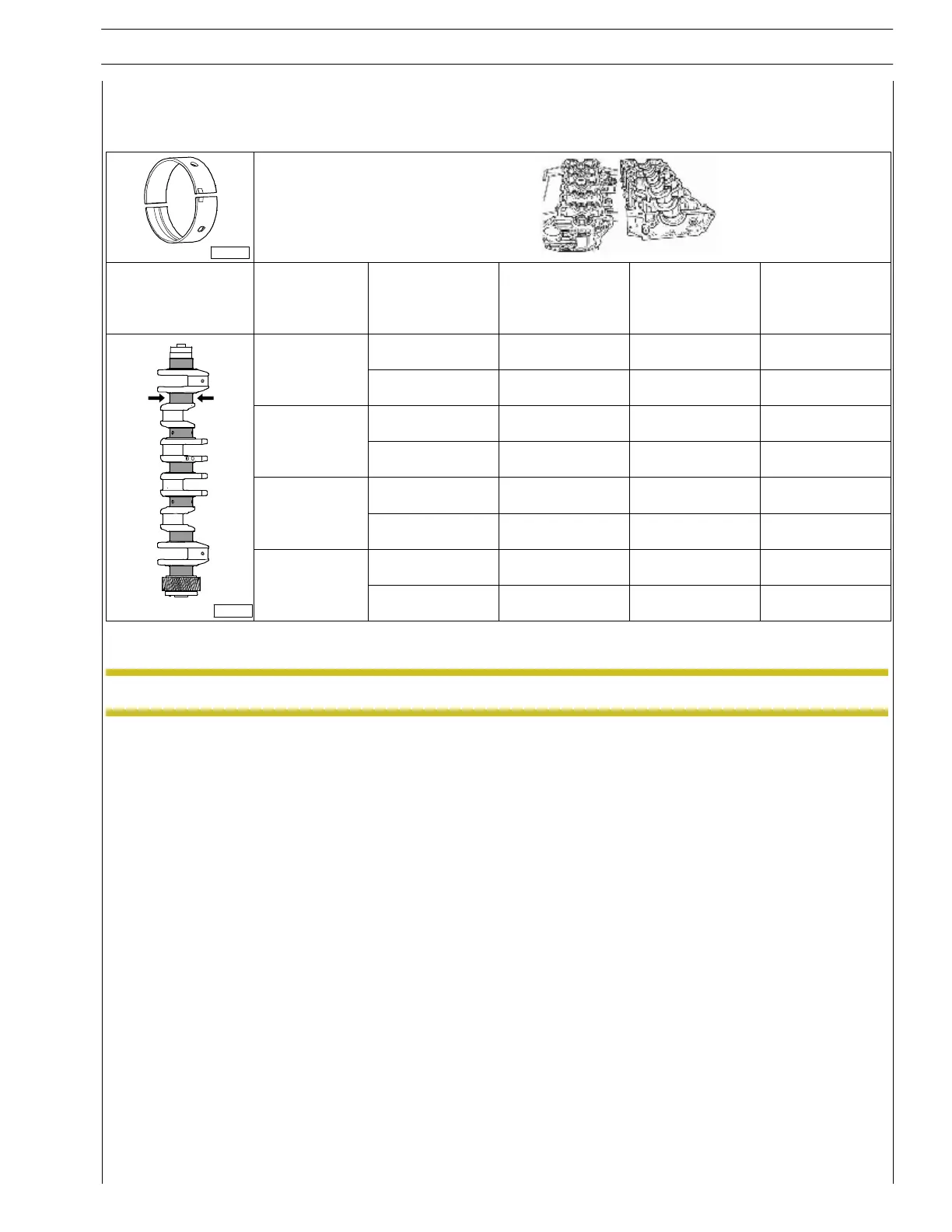

Main half -bearing selection (nominal diameter)
After detecting, for each main journal, the necessary data on crankcase and crankshaft, select the type of half-bearings to be used,
in compliance with the following table:.
210306
STD CLASS
1
106.300
106.307
2
106.308
106.315
3
106.316
106.323
4
106.324
106.330
210307
1
99.970
99.977
Green Yellow* Yellow* Black
Yellow* Yellow* Black Black
2
99.978
99.985
Green Green Yellow* Yellow*
Green Yellow* Yellow* Black
3
99.986
99.993
Red Green Green Yellow*
Green Green Yellow* Yellow*
4
99.994
100.000
Red Red Green Green
Red Green Green Yellow*
* Not supplied as a spare part. If necessary, replace with Green\Black half-bearing
NOTE If using main end half-bearings of a different thickness, fit the thicker bearing at the bottom.
