SECTION 6 - GENERAL MECHANICAL OVERHAUL
9
CURSOR SERIES
Print P4D32C006 E Base - 03/2015

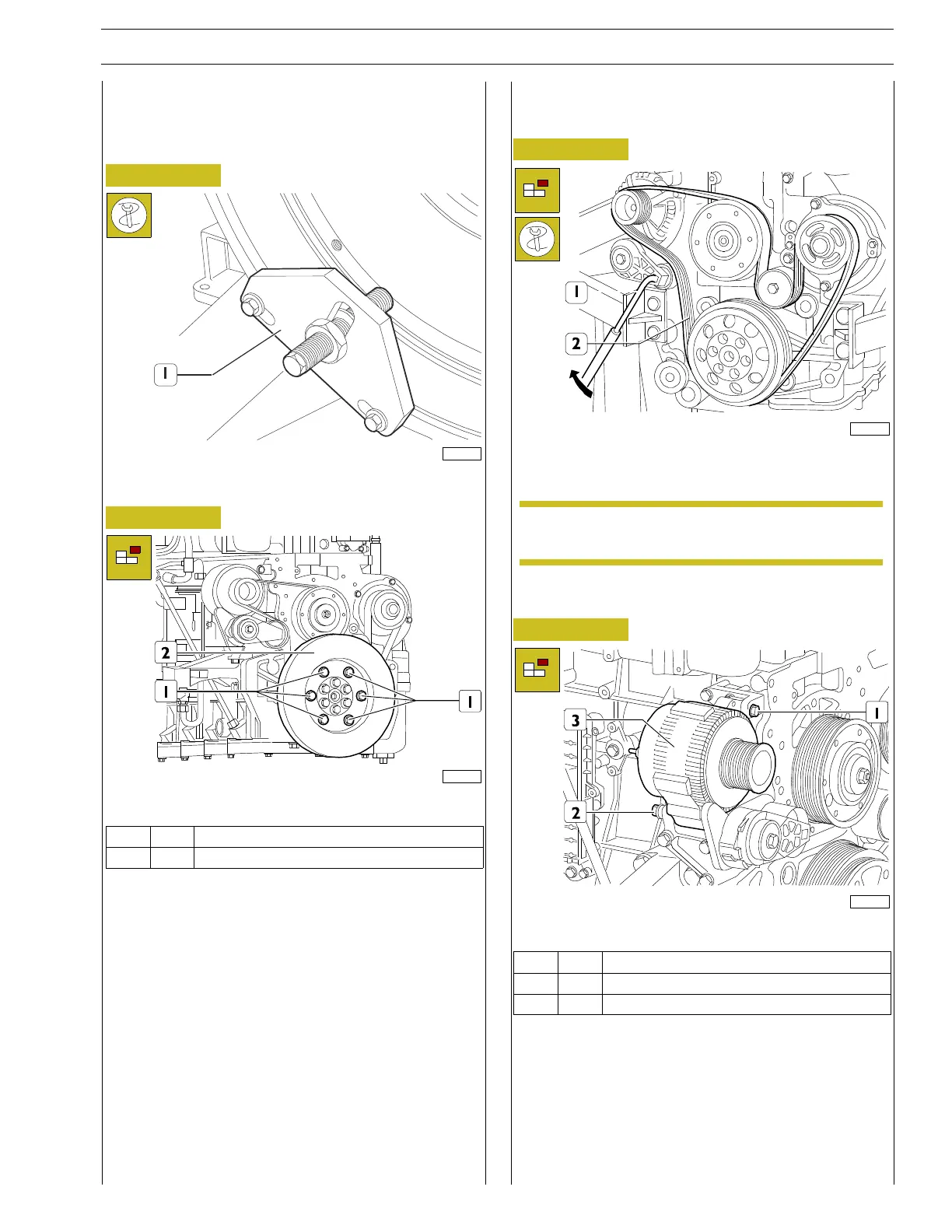

DISASSEMBLY OF ENGINE AT BENCH
(COMPONENTS AT THE FRONT)
Damper flywheel removal
Figure 11
71702
Lock the flywheel using the tool 99360351 (1).
Figure 12
221082
Remove the damper flywheel (2) by acting on the screws (1).
Ref.
No. Description
(1) 6 M14x2screws
Coolant pump alternator drive belt
disassembly
Figure 13
166728
Using a 1/2 inch square wrench (1), act in the direction of the
arrow, remove the ancillary drive belt (2).
NOTE The elastic belt must be replaced
after every disassembly.
Alternator removal
Figure 14
221083
Unscrew the screws (1, 2) and remove the alternator (3).
Ref.
No. Description
(1) 1 M8 x 1.25 screws
(2) 1 M10 x 1.5 screws
