NOTE
WARNING
190510

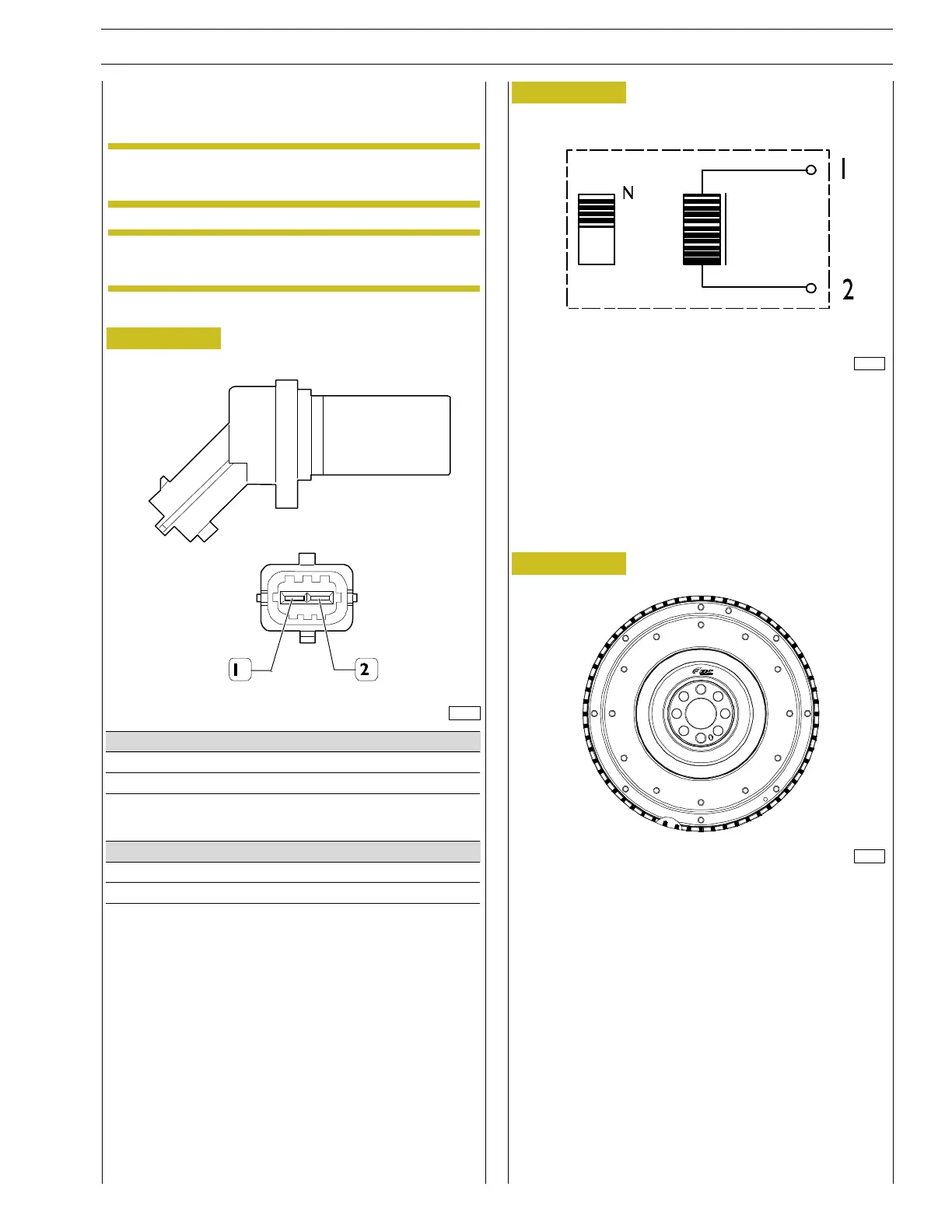

Figure 8
Crankshaft sensor
This sensor is an inductive one and is located on the flywheel.
If this signal fails the rev counter will not work.
The sensor gap is not adjustable.
190511
221071
Figure 9
Figure 10
The flywheel has 60 sections, on 58 of which there is a hole.
The sensor reads the signal generated by these holes.
The EDC 17 uses this signal to:
- recognise the position of the pistons during normal run-
ning;
- determine the engine speed.
S
SECTION 3 - ELECTRIC EQUIPMENT
11
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
Pin Description ECU pin
1 Signal (+) EDC17, pin A/66
2 Signal (-) EDC17, pin A/65
Specifications Measurement Conditions
Resistance 850 - 870
tightening torque 6-10Nm
