SECTION 5 - R EMOVAL - REFITTING OF THE MAIN ENGINE COMPONENTS
39
CURSOR SERIES
Print P4D32C006 E Base - 03/2015
ELECTRO - INJECTORS
REMOVAL-REFITTING
Removal

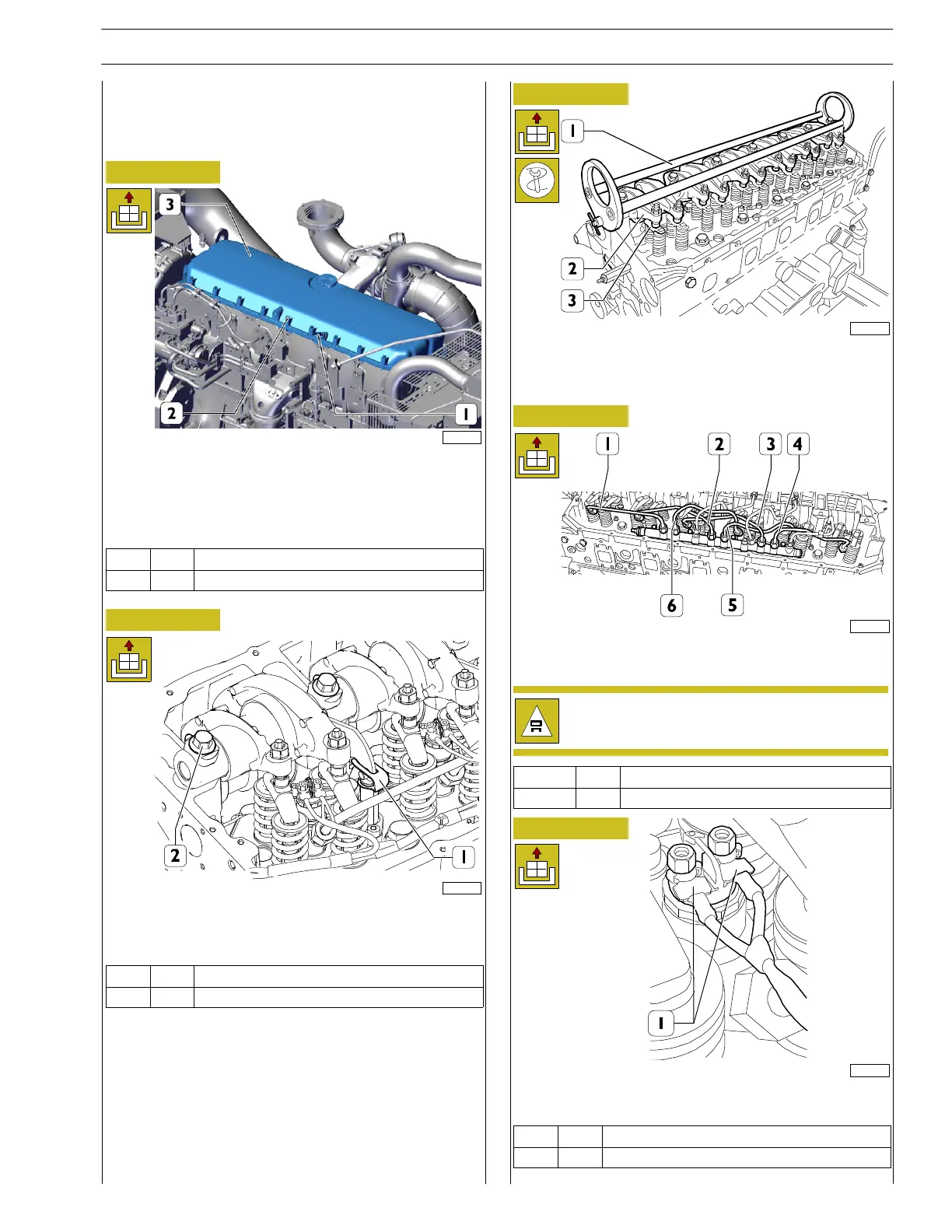

Figure 108
227771
Disconnect the electric connection of engine crankcase
pressure sensor.
Unscrew the fastening screws (2) and remove the tappet
cover (3) together with the gasket.
Ref.
No. Description
(2) 24 M6 x 1 screws
Figure 109
227745
Release the retainer springs of the engine brake (1).
Unscrew the screws (2) securing the rocker arm shaft.
Ref.
No. Description
(2) 7 ScrewsM16X1.5X76
Figure 110
224083
Use the specified tool 99360553 (1) on the rocker arm shaft
(2) and remove the shaft (2) from the cylinder head. Remove
the crosspieces (3) from the cylinder head.
Figure 111
225054
Unscrew fittings on rail side, injector side, and remove the HP
fuel pipes (1, 2, 3, 4, 5, 6).
The high pressure fuel pipes must be replaced at each
disassembly.
Ref. No. Description
(1 - 6) 12 Fittings M16 X 1.5
Figure 112
183457
Unscrew the nuts and disconnect the electrical connections
(1) from the electro-injectors.
Ref.
No. Description
(1) 12 Nuts M4
